Installation Procedure
WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

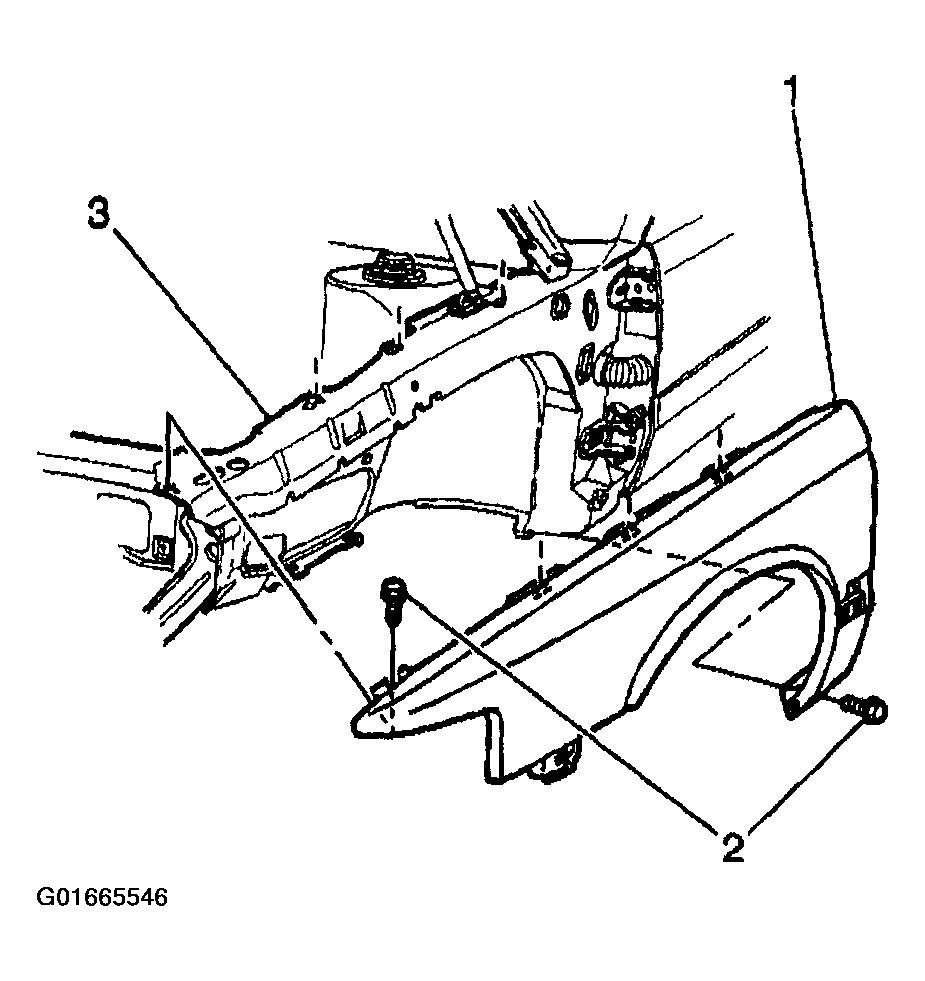

- Position the fender (1) to the body.
- Install the 5 bolts that retain the fender (1) to the outer rail (3).
- Install the 2 bolts that retain the fender (1) to the fascia sliding mount bolts.
- Install the 2 bolts that retain the fender (1) at the rocker panel.
Tighten
Tighten the bolts to 12 N.m (106 lb in).
- Position the hood hinge to the fender and install the 2 bolts.
Tighten
Tighten the bolts to 12 N.m (106 lb in).
- Install the rocker panel. Refer to MOLDING REPLACEMENT - ROCKER PANEL .
- Install the fender sound insulator. Refer to Fender Sound Insulator Replacement - Front .
- Place the outboard edge of the insulator rearward so that the insulator contacts the upper fender reinforcement.
- Install the wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front .
- Install the fascia extension. Refer to FASCIA EXTENSION REPLACEMENT - FRONT .
- Install the wheel opening molding.
- Install the headlamp housing. Refer to Headlamp Housing Panel Replacement .
- Install the front fender gussets. Refer to Gusset Replacement - Left or Gusset Replacement - Right .
- Install the engine compartment fuse and relay center cover.
- Install the upper filler panels. Refer to Filler Panel Replacement - Upper .
