Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector (1) to the hazard flasher (2).
Install the hazard flasher into the retainer clip at the cross car brace.
Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .

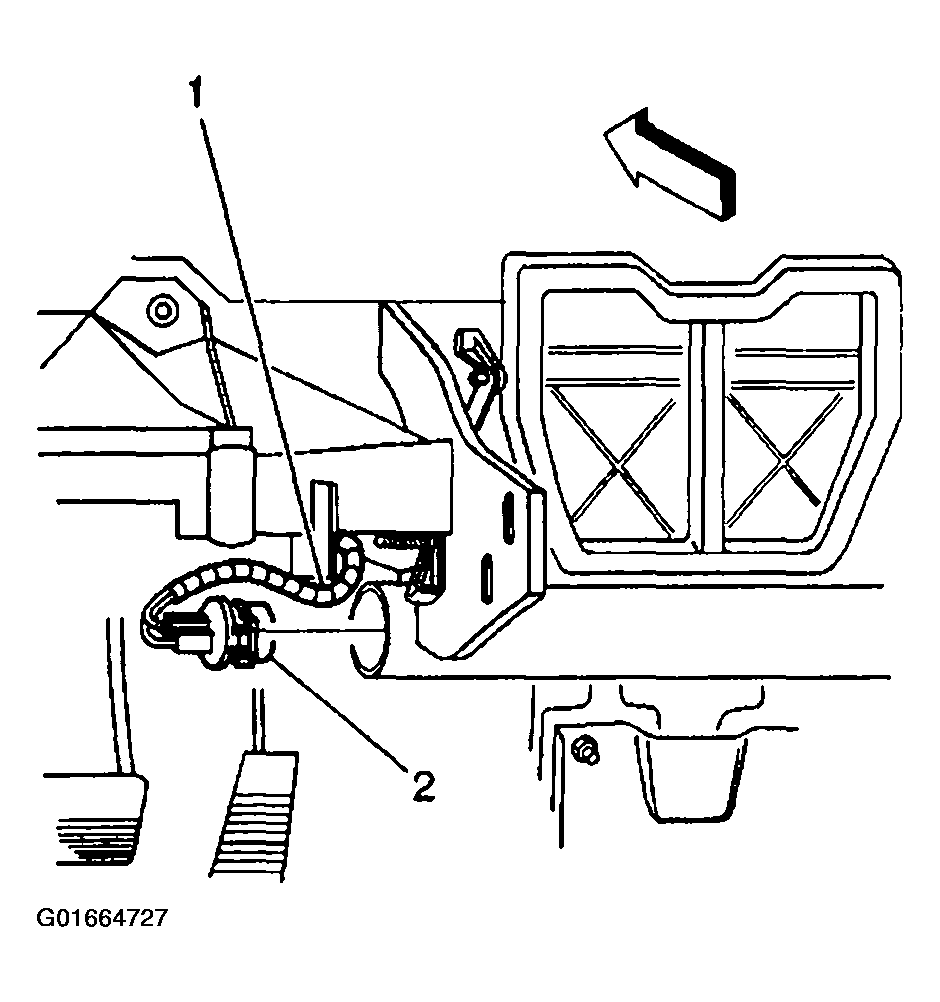

Fig 1: Identifying Hazard Flasher & Electrical Connector
Courtesy of GENERAL MOTORS CORP.
