Auxiliary HVAC Control Module Connector End View (C2)

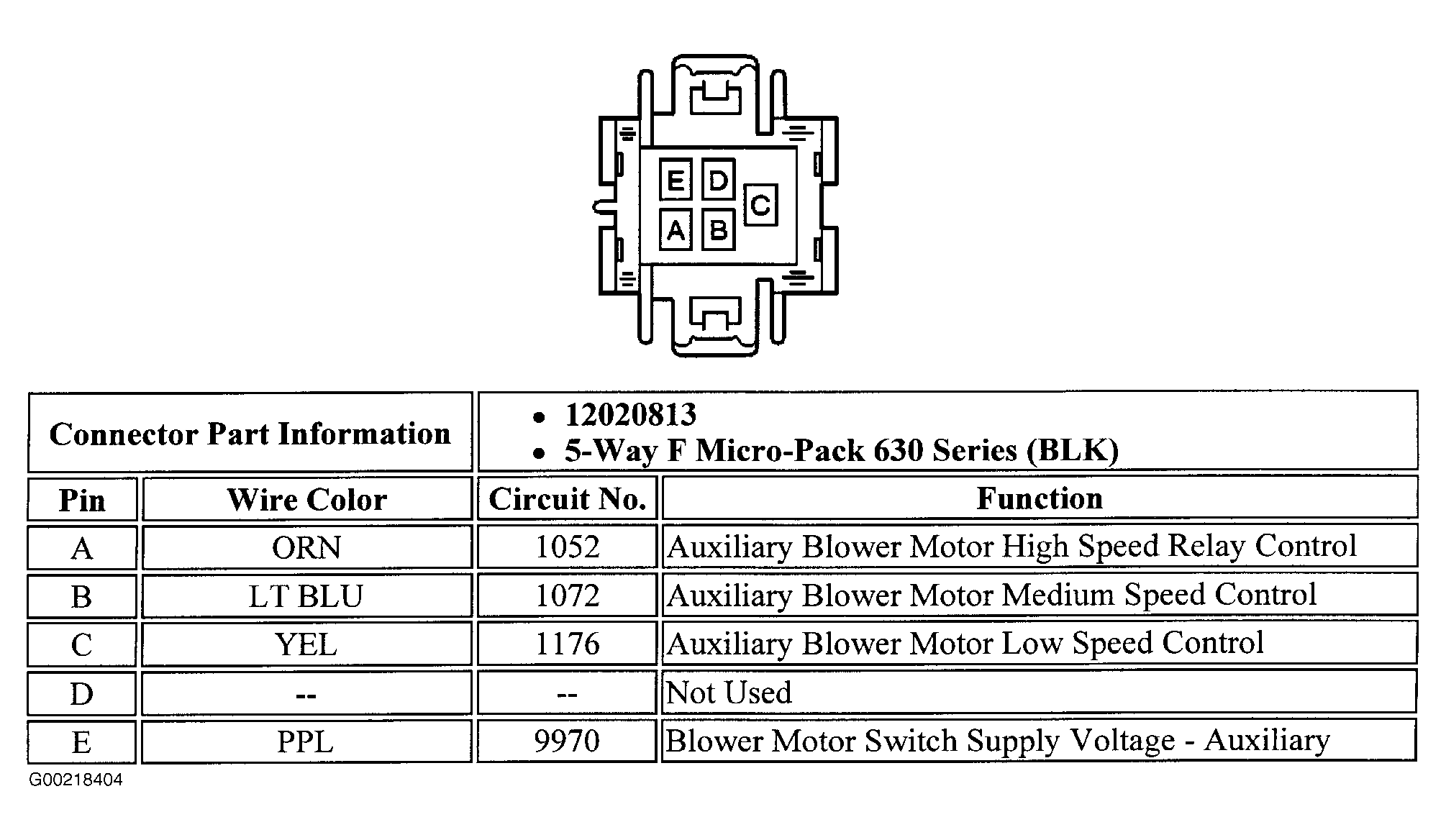

Fig 1: Auxiliary HVAC Control Module (C2)
G00218404Courtesy of GENERAL MOTORS CORP.
