HVAC Control Module Connector End View - Auxiliary C1
HVAC Control Module Connector End View - Auxiliary C1

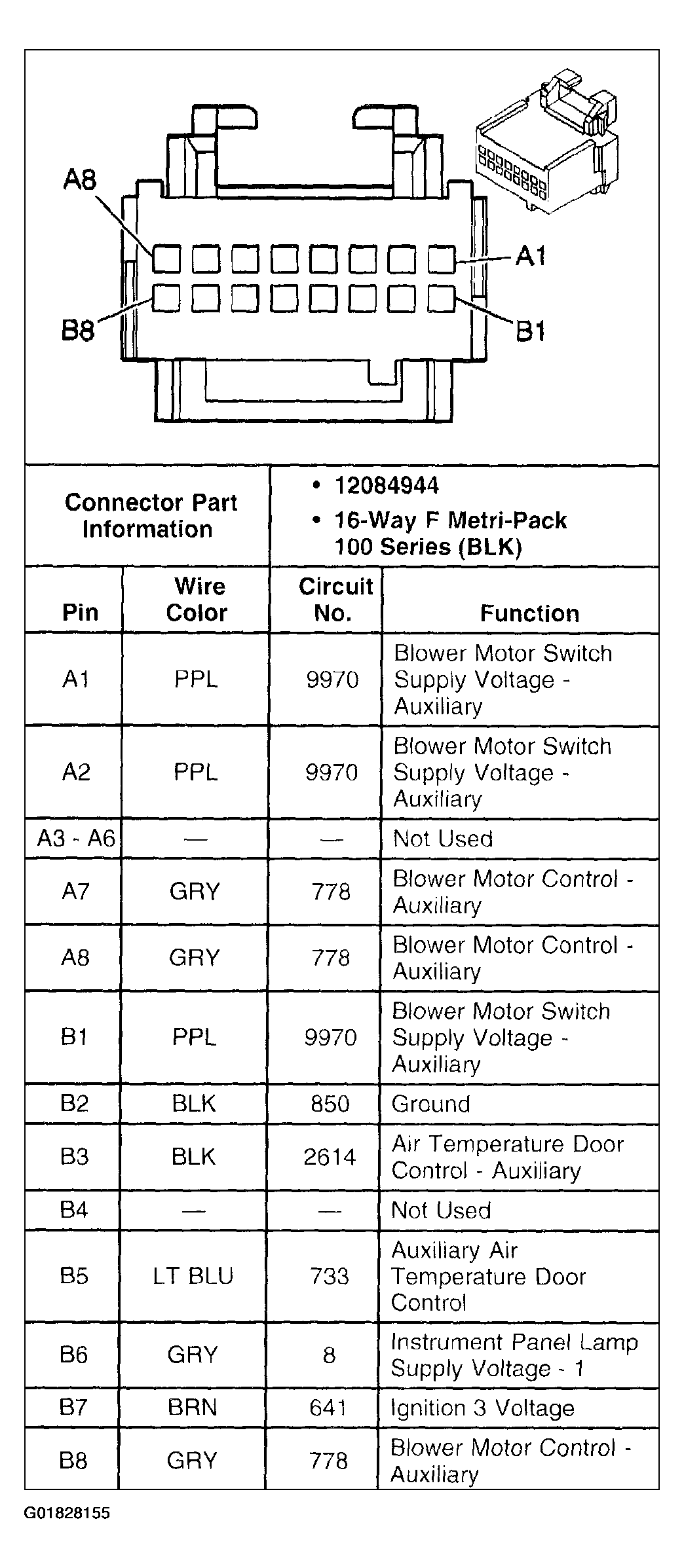

Fig 1: HVAC Control Module - Auxiliary C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
