Shock Sensor Connector End View
Shock Sensor Connector End View

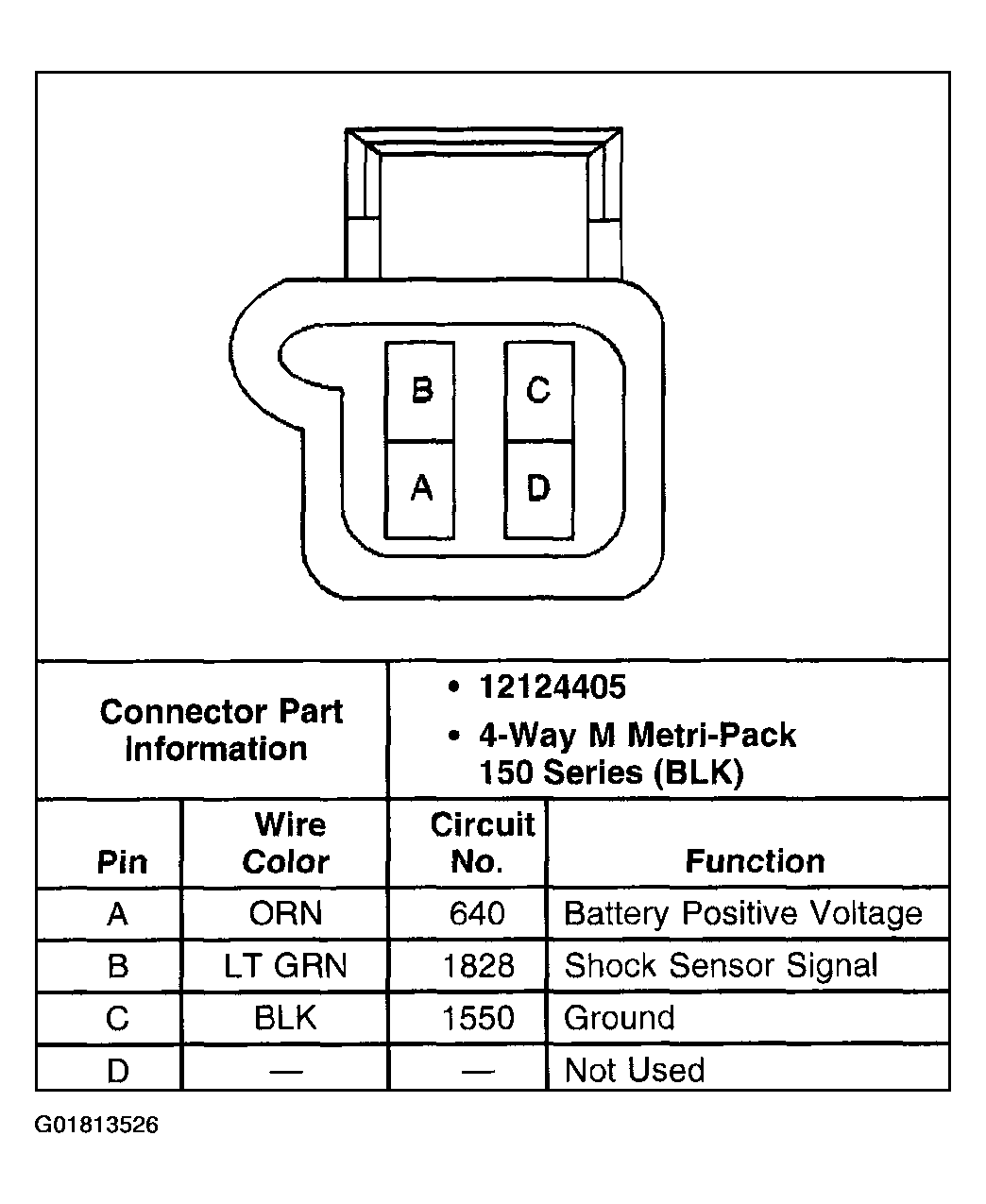

Fig 1: Shock Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
