Keyless Entry Connector End Views

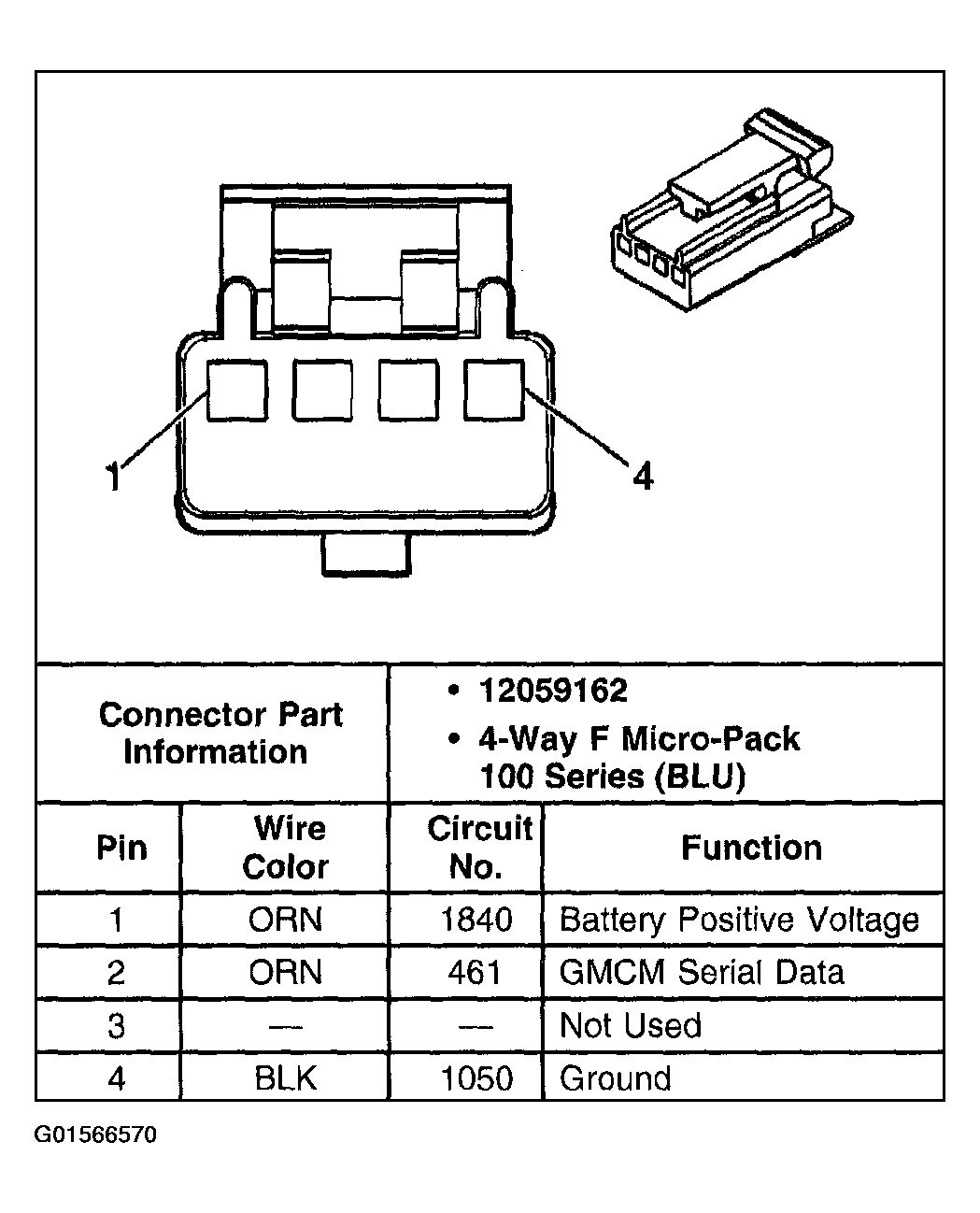

Fig 1: Identifying Remote Control Door Lock Receiver (RCDLR) Connector Terminals
G01566570Courtesy of GENERAL MOTORS CORP.
