Removal Procedure

  1. Insert a small coin between the 2 halves of the transmitter case at the slot provided near the key ring hole.
  2. Twist the coin in order to open the case.
  3. Open the transmitter case.
    Fig 1: Opening Transmitter Case
    G01566583Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery (2).

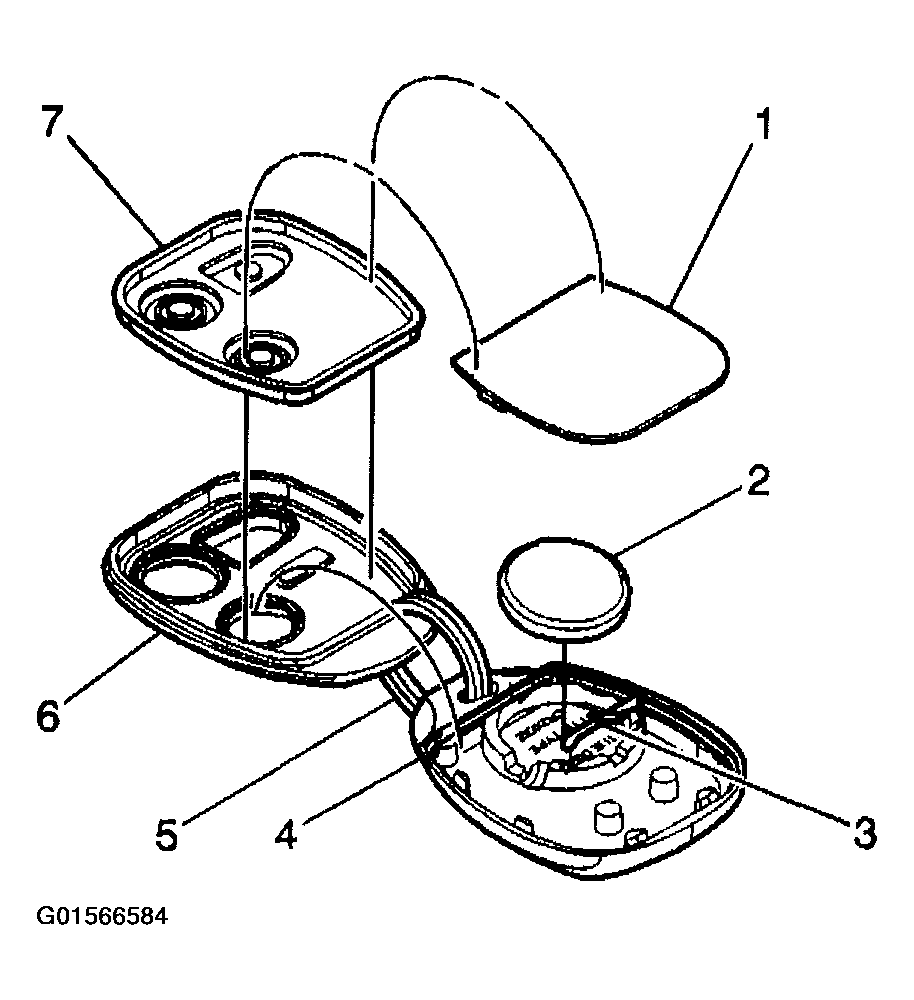

    Fig 2: Removing Transmitter Battery
    G01566584Courtesy of GENERAL MOTORS CORP.
