Power Seat Systems Component Views

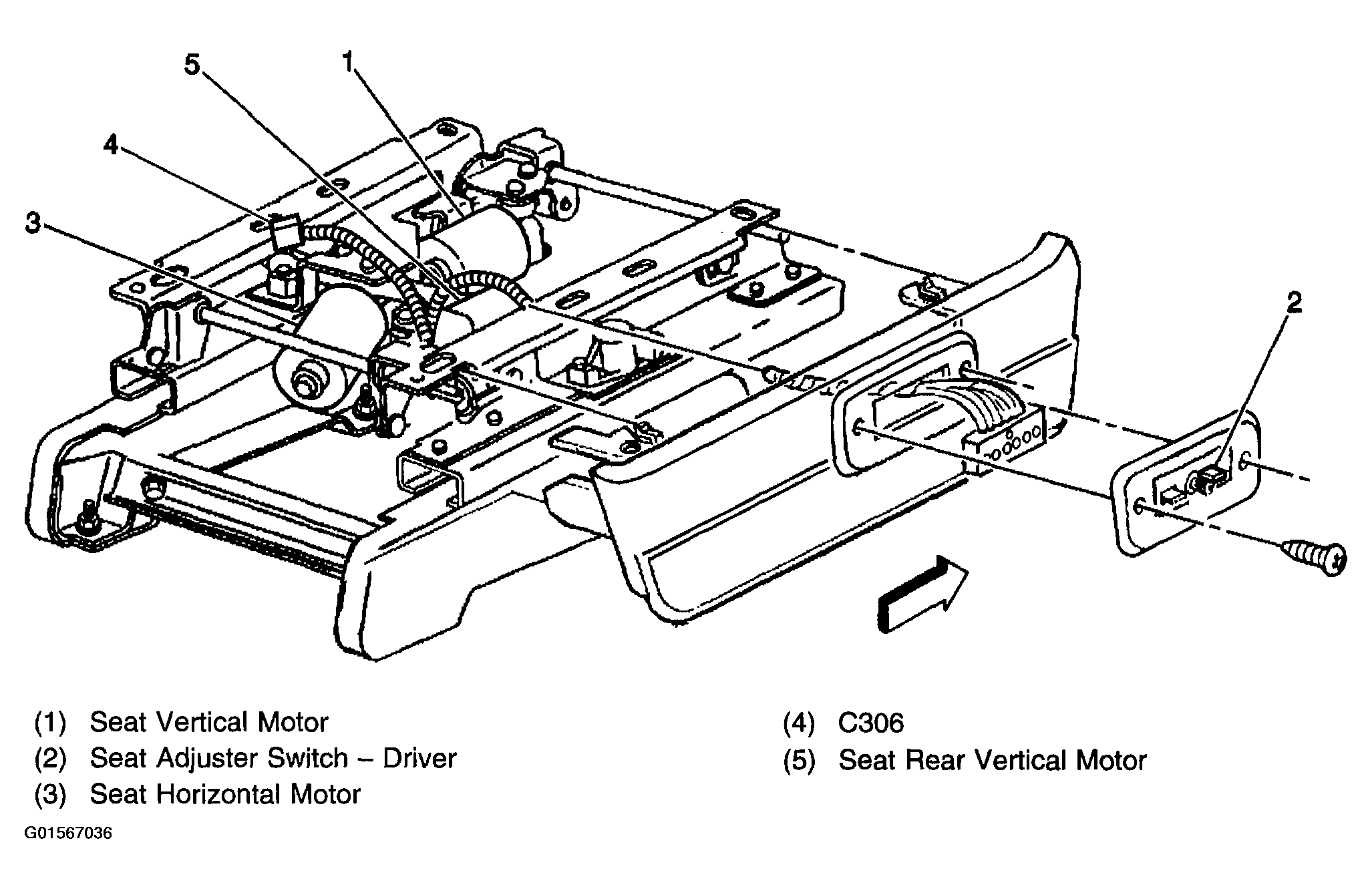

Fig 1: Locating Components Of Power Seat - Driver Side Shown
G01567036Courtesy of GENERAL MOTORS CORP.
