ABS Schematics

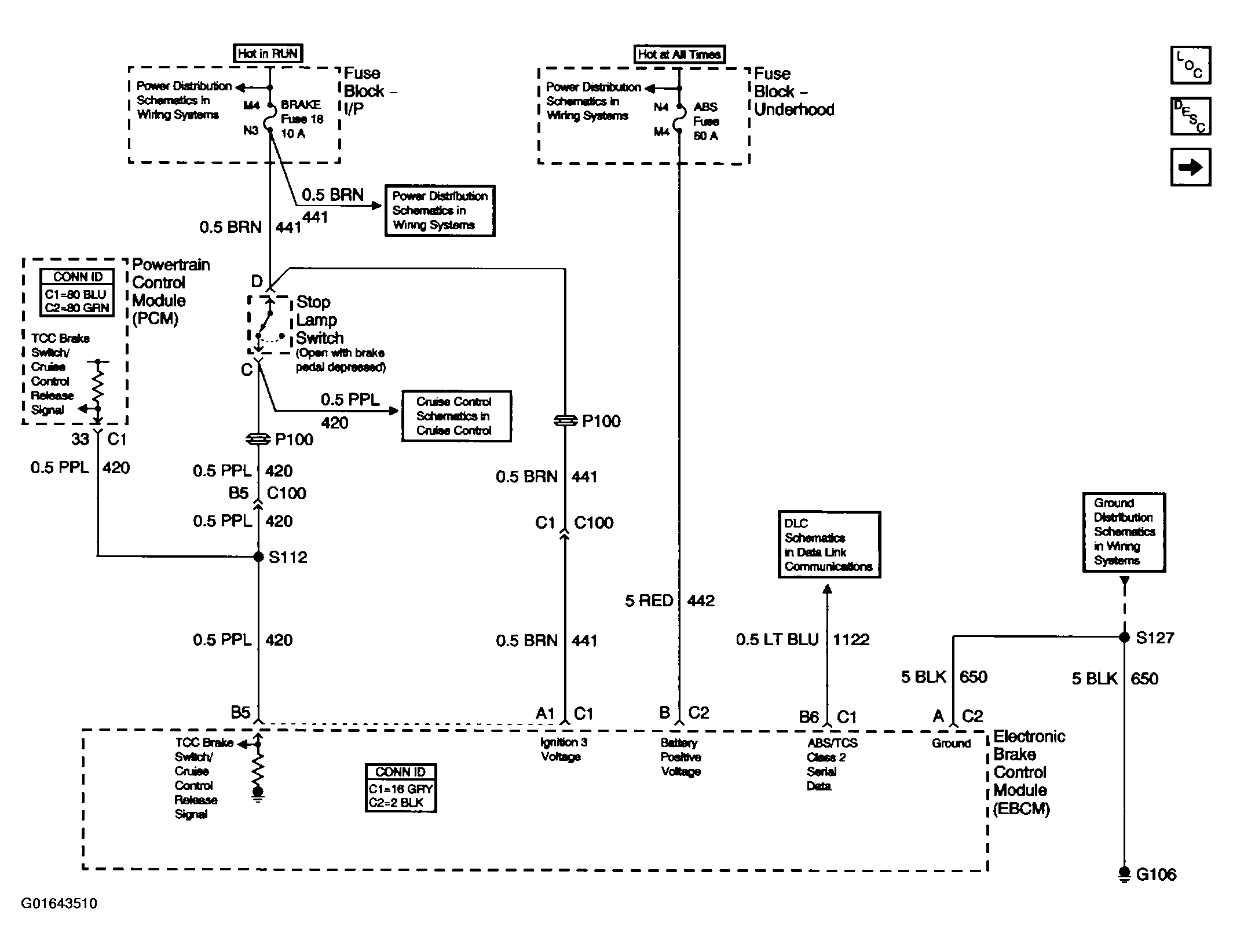

Fig 1: EBCM Power, Ground, And DLC
G01643510Courtesy of GENERAL MOTORS CORP.

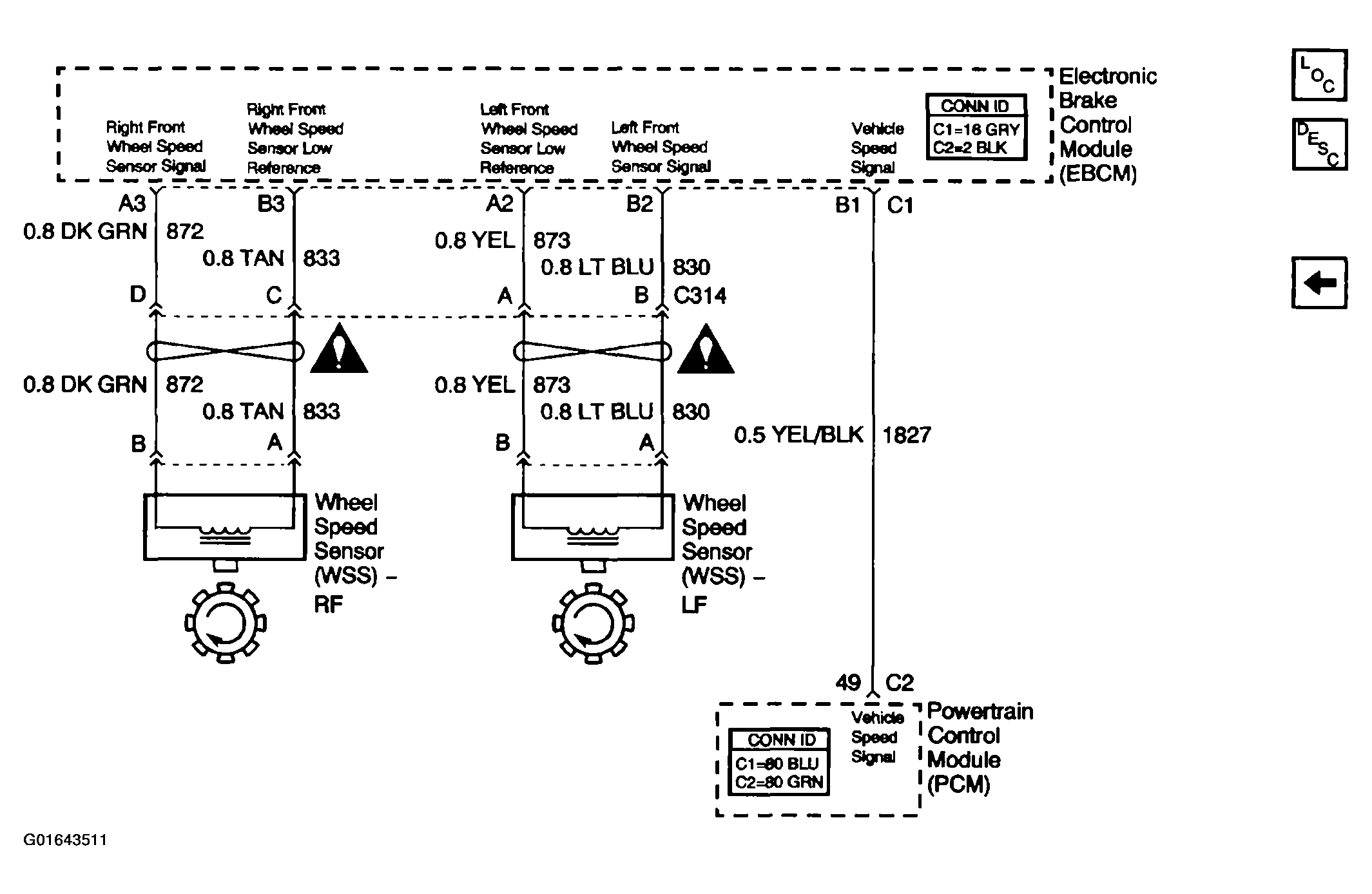

Fig 2: EBCM Controls
G01643511Courtesy of GENERAL MOTORS CORP.
