Electronic Brake Control Module (EBCM) Connector End View C2 Terminals

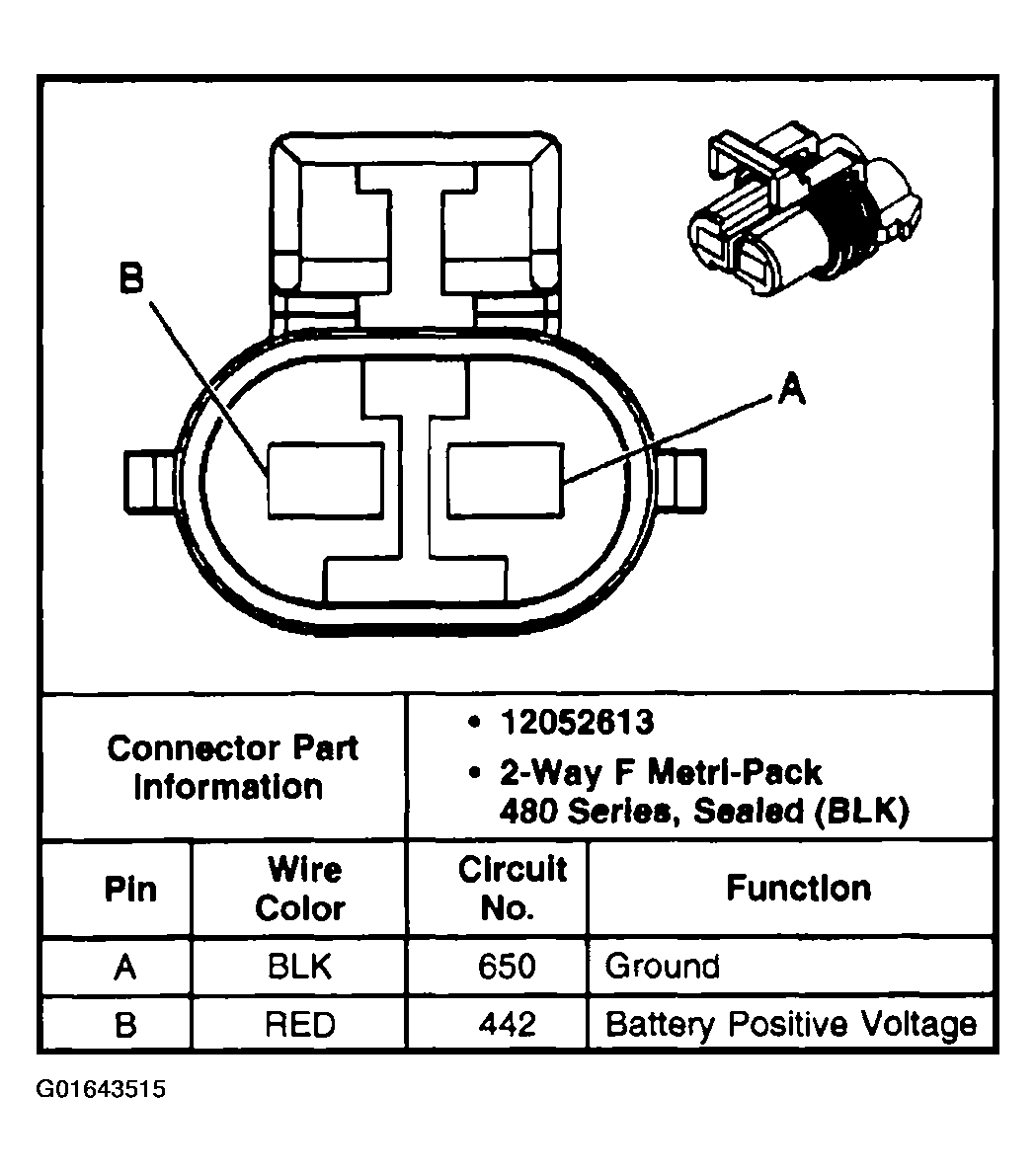

Fig 1: Electronic Brake Control Module (EBCM) Connector End View C2 Terminals
G01643515Courtesy of GENERAL MOTORS CORP.
