Engine Electrical Component Views

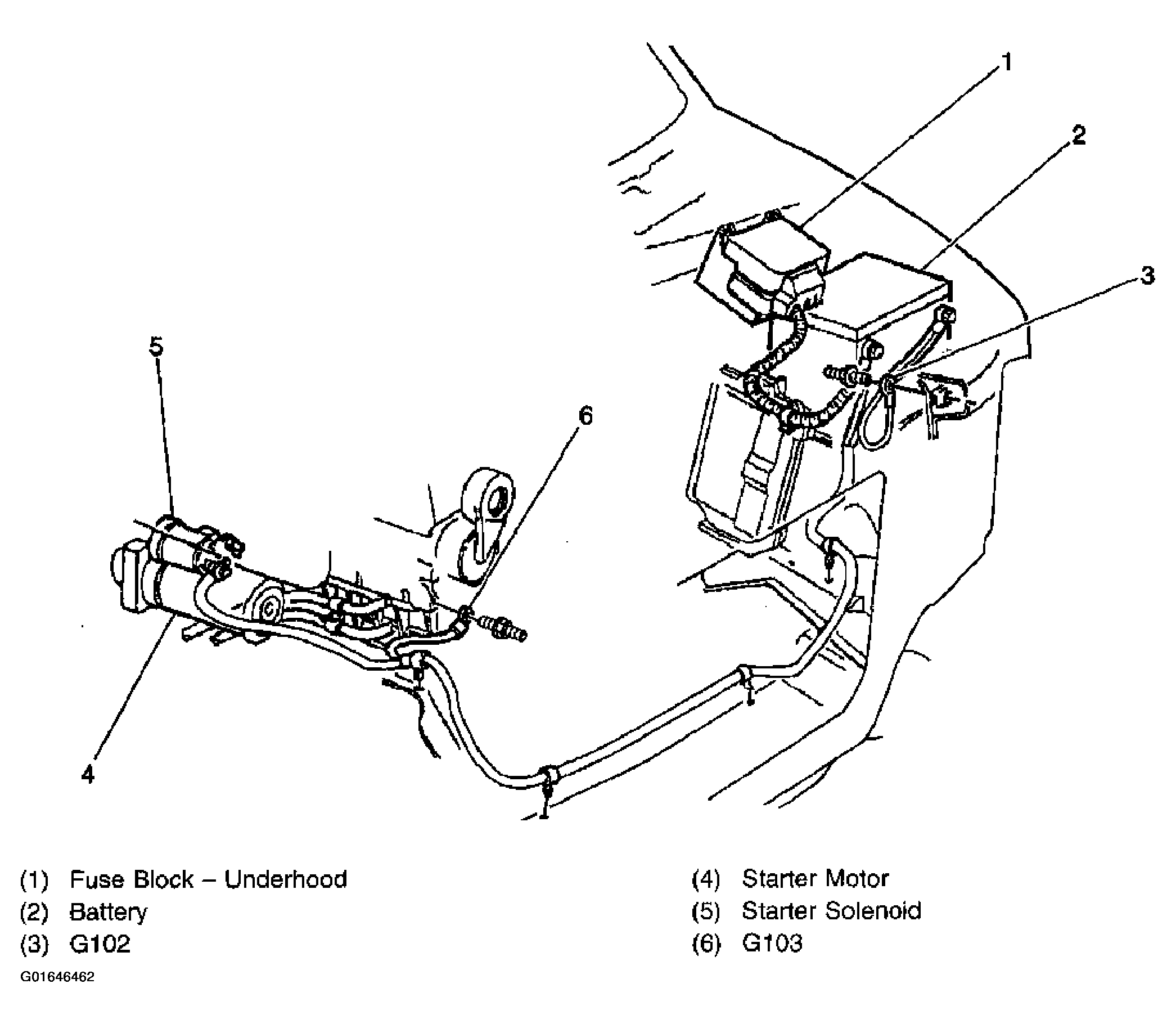

Fig 1: Locating Underhood Fuse Block, Battery & Starter (A4WD)

Courtesy of GENERAL MOTORS CORP.

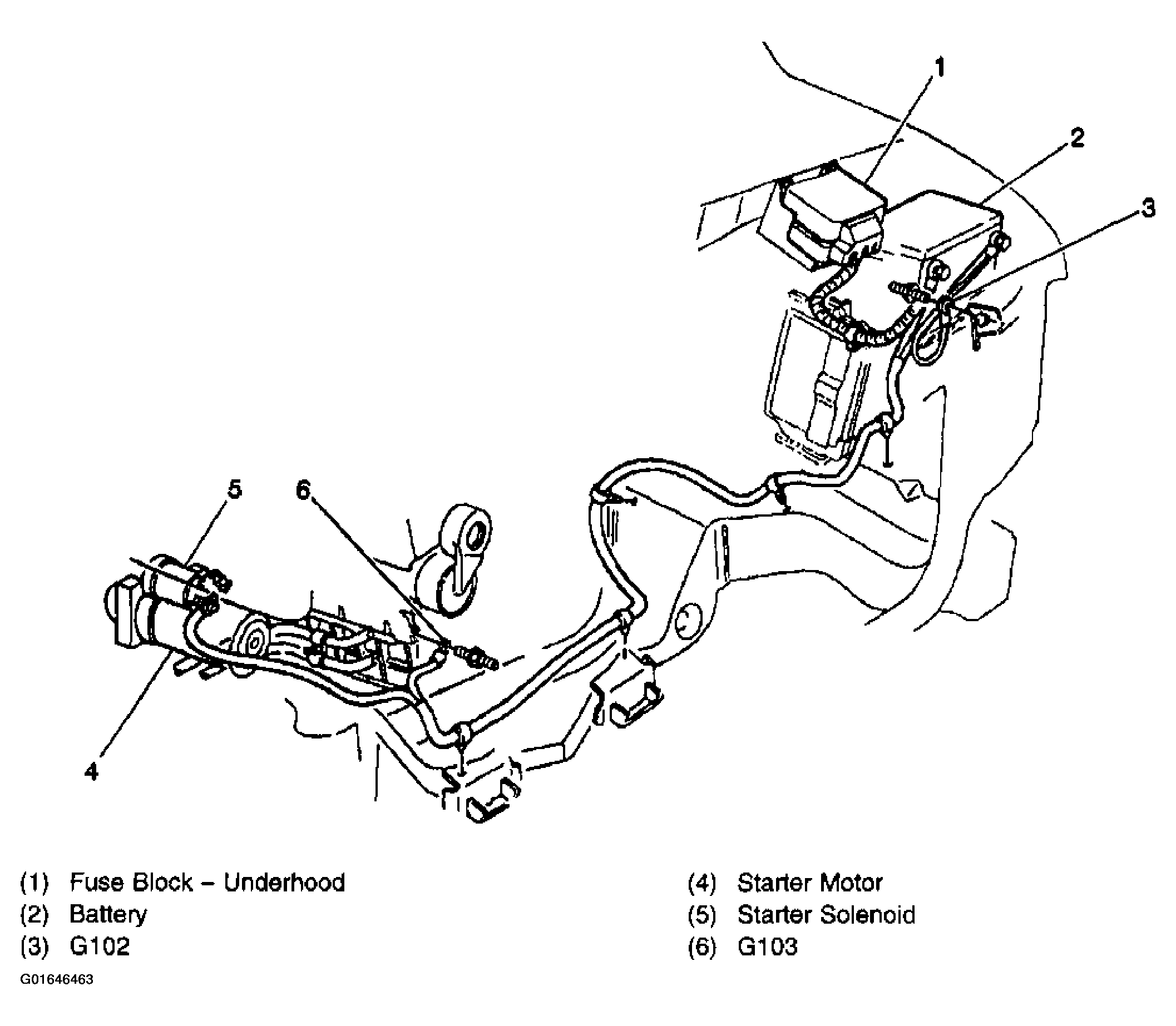

Fig 2: Locating Underhood Fuse Block, Battery & Starter (RWD)

Courtesy of GENERAL MOTORS CORP.

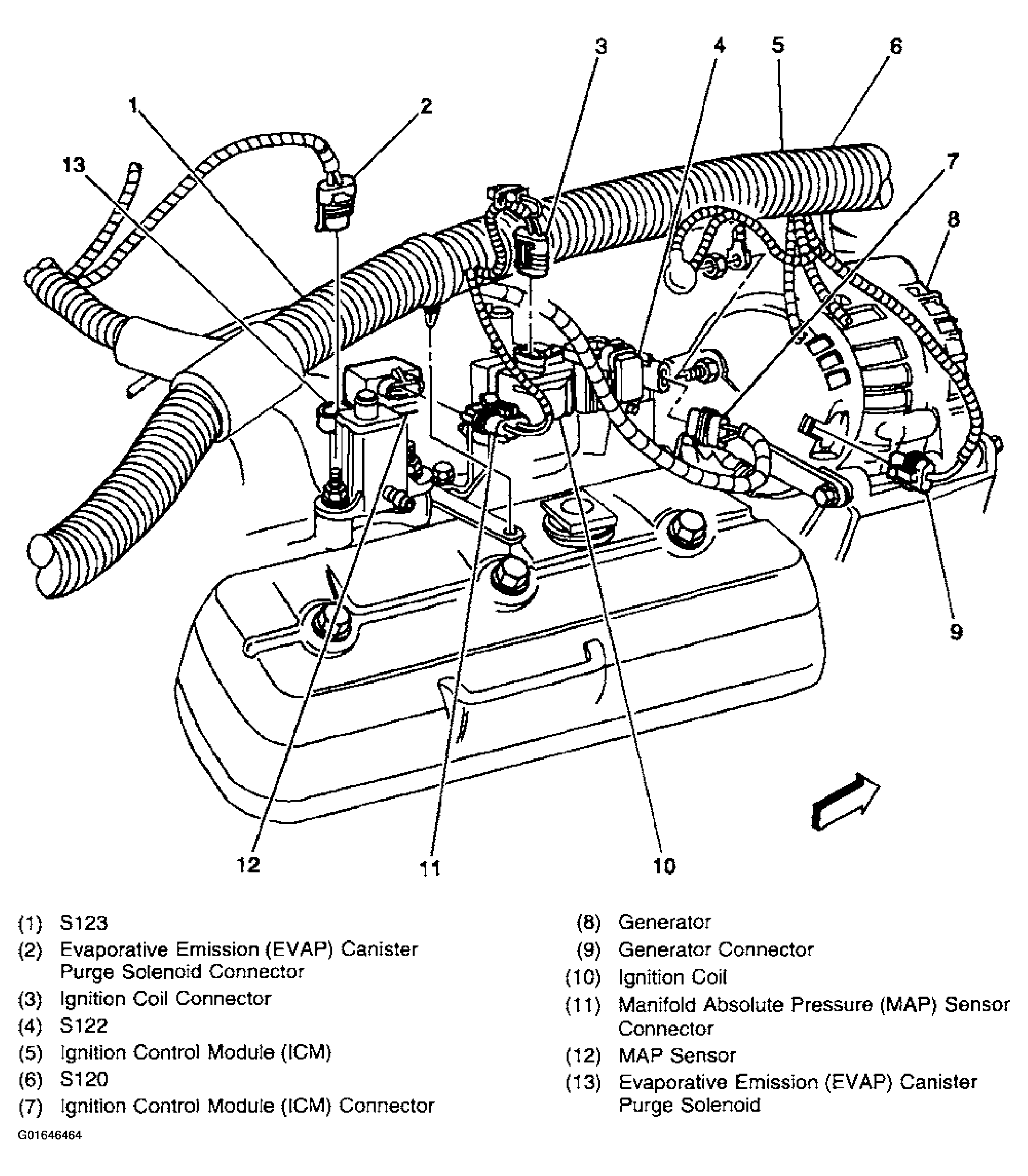

Fig 3: Locating Generator & Surrounding Components/Wiring, Right Side

Courtesy of GENERAL MOTORS CORP.
