Installation Procedure
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.
Important: Clean any existing corrosion from the battery terminal bolt flange and the battery cable end.

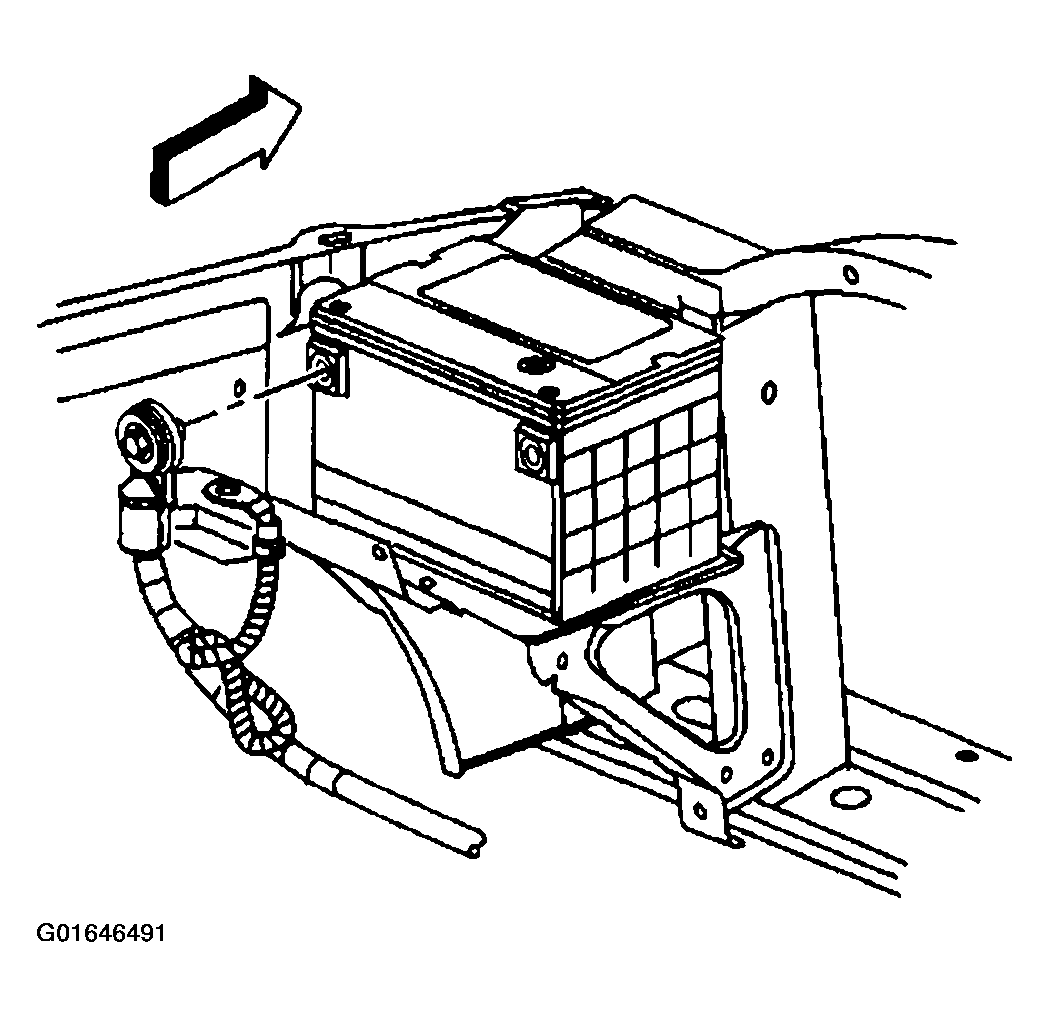

Install the battery ground (negative) cable and bolt to the battery.
Tighten
Tighten the battery terminal bolt to 15 N.m (11 lb ft).
