Removal Procedure

  1. Remove the battery. Refer to BATTERY REPLACEMENT .
  2. Disconnect the VCM retaining clip and position the VCM away from the battery tray.

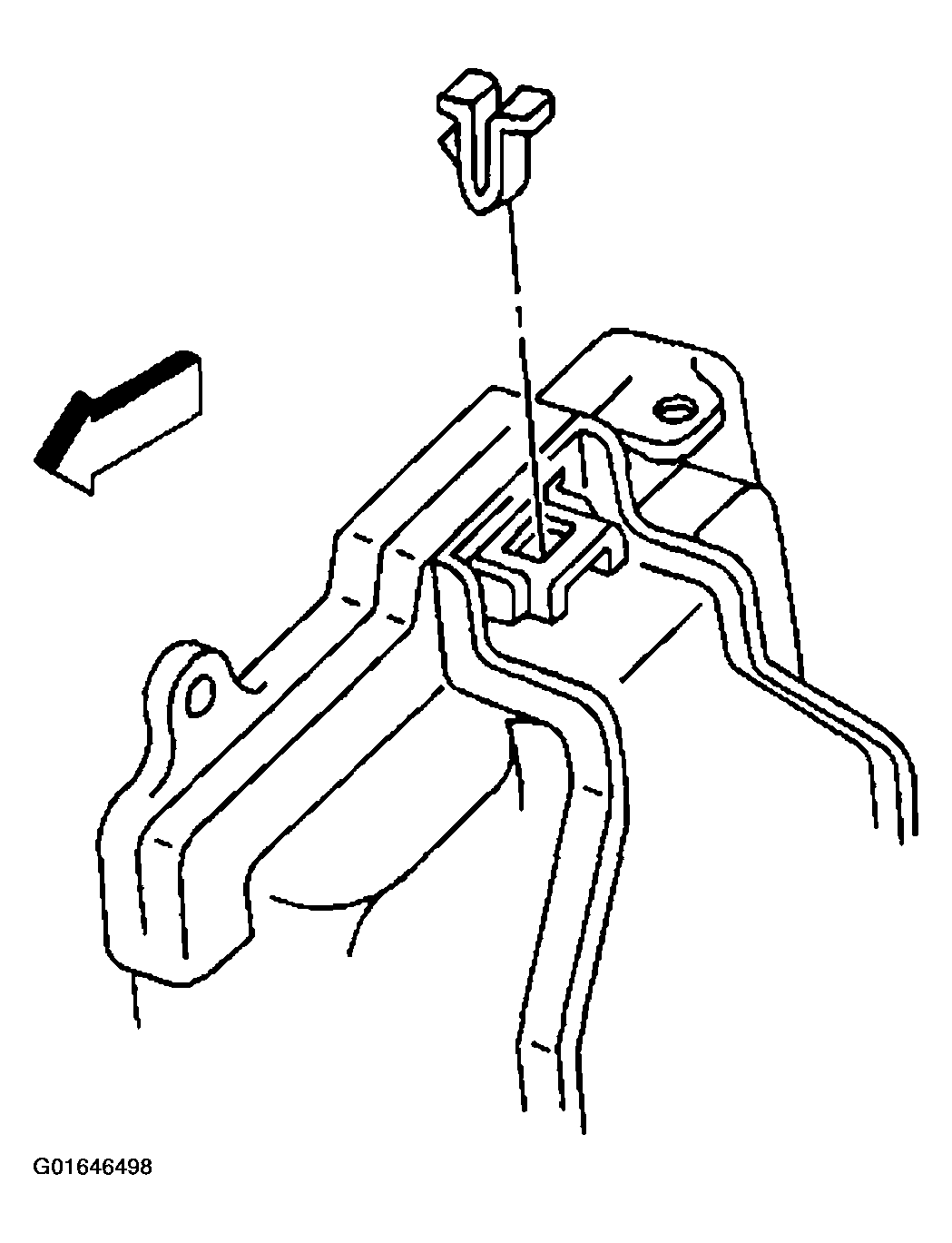

    Fig 1: Disconnecting VCM Retaining Clip
    G01646498Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery tray retaining bolts.

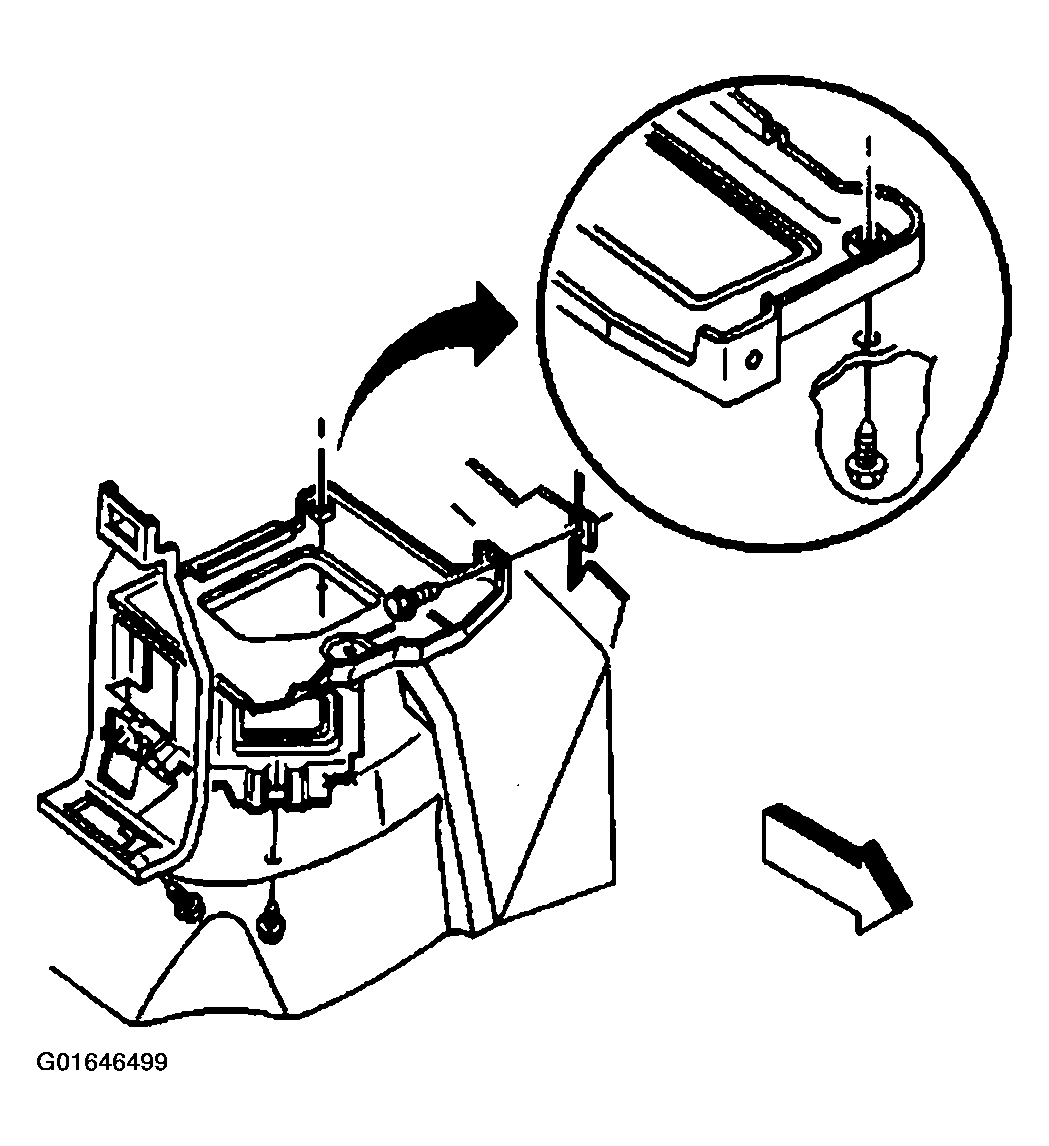

    Fig 2: Removing Battery Tray Retaining Bolts
    G01646499Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery tray.
