Horns Connector End Views

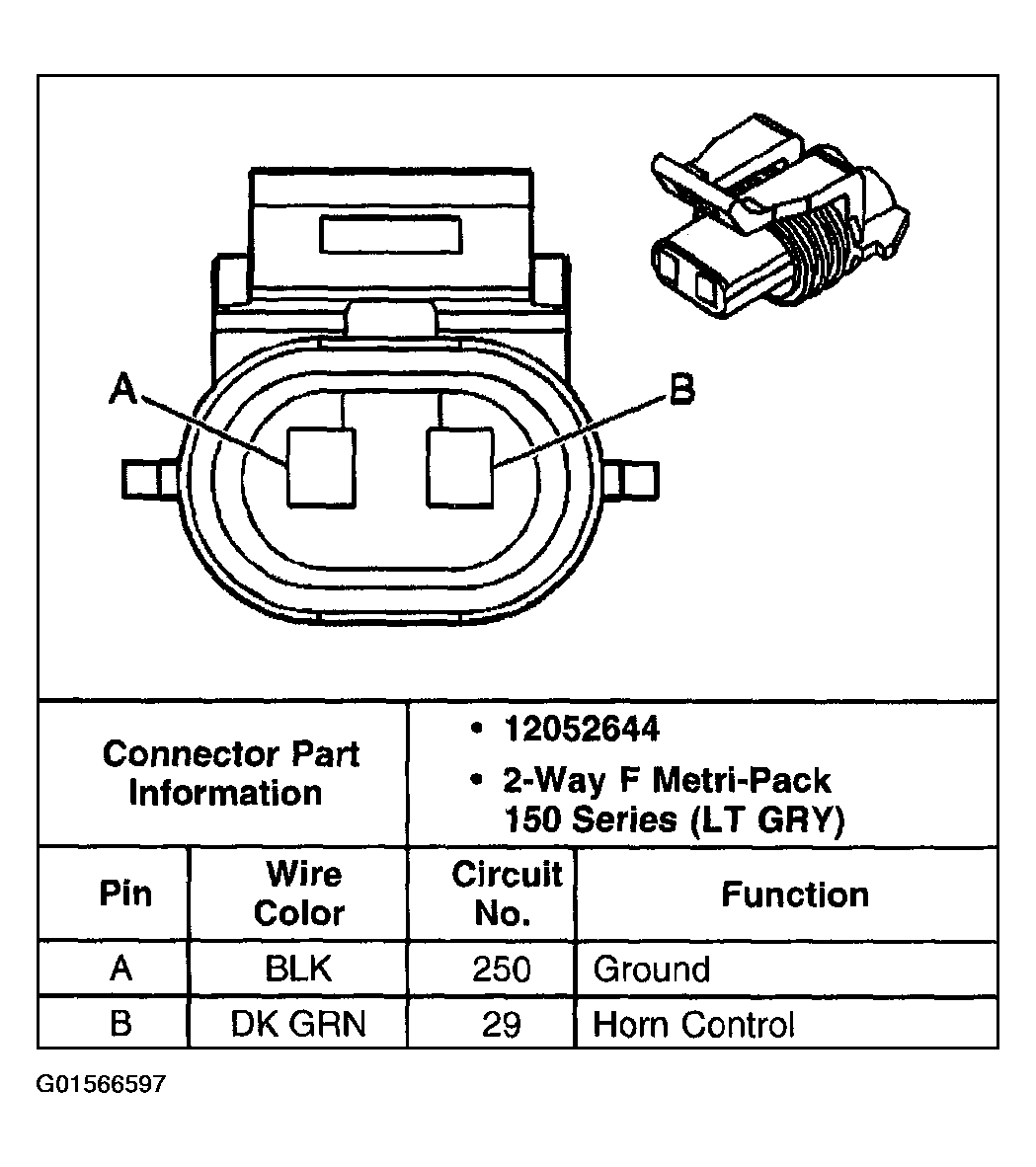

Fig 1: Identifying Left Horn Connector
G01566597Courtesy of GENERAL MOTORS CORP.

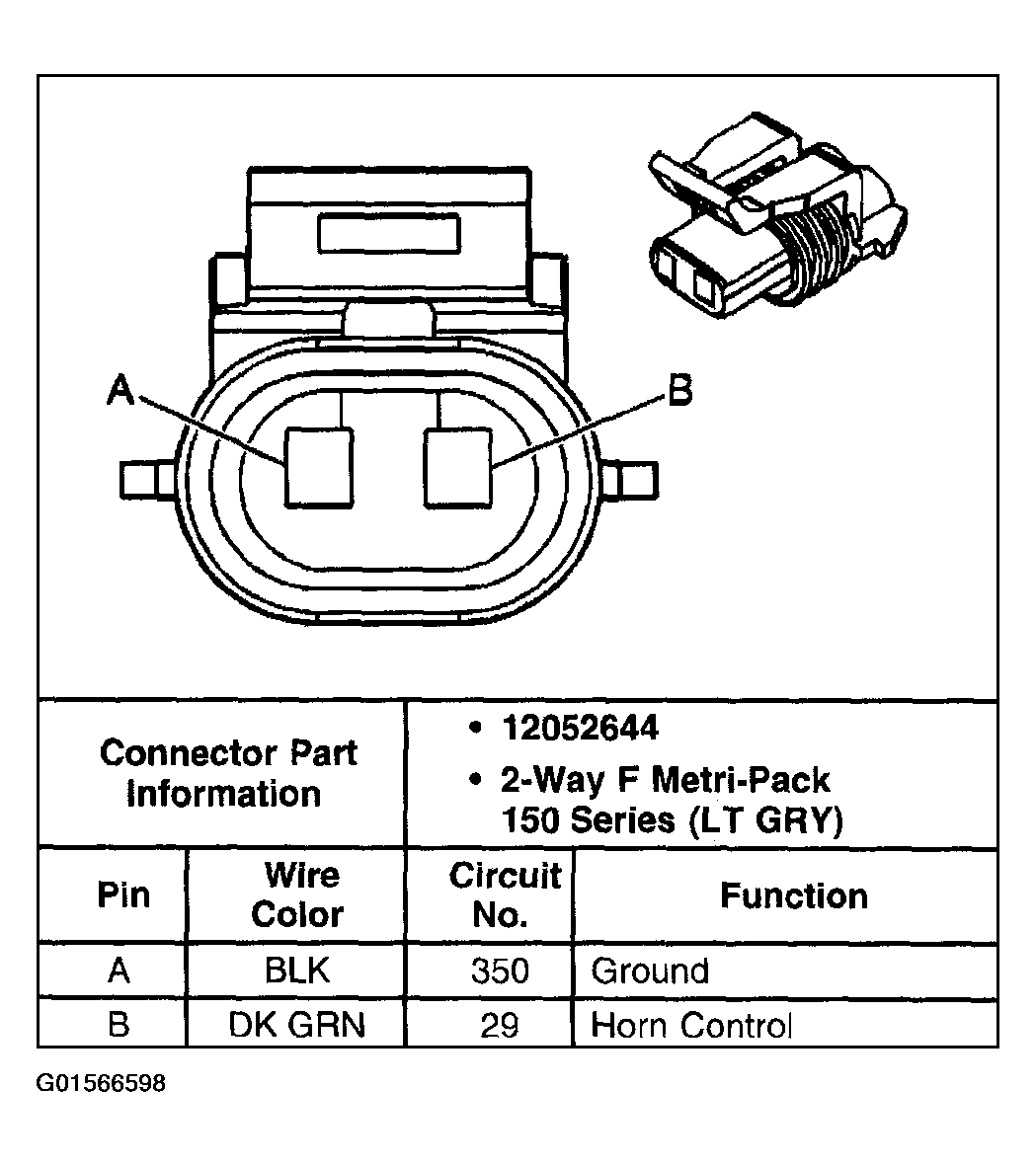

Fig 2: Identifying Right Horn Connector
G01566598Courtesy of GENERAL MOTORS CORP.
