A/C Compressor Clutch Connector End View
A/C Compressor Clutch Connector End View

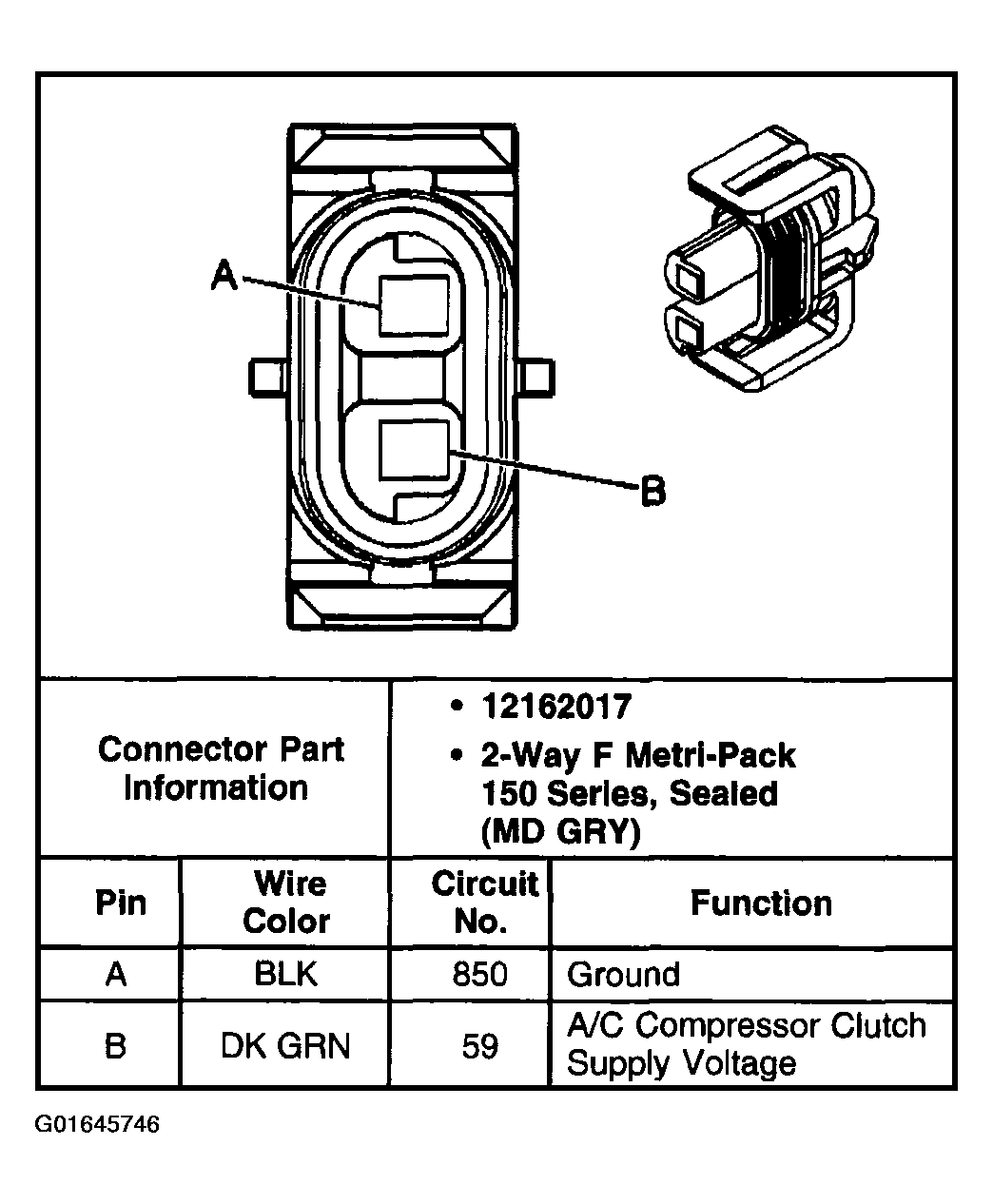

Fig 1: A/C Compressor Clutch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
