Windshield Washer Fluid Pump Connector End View Terminals

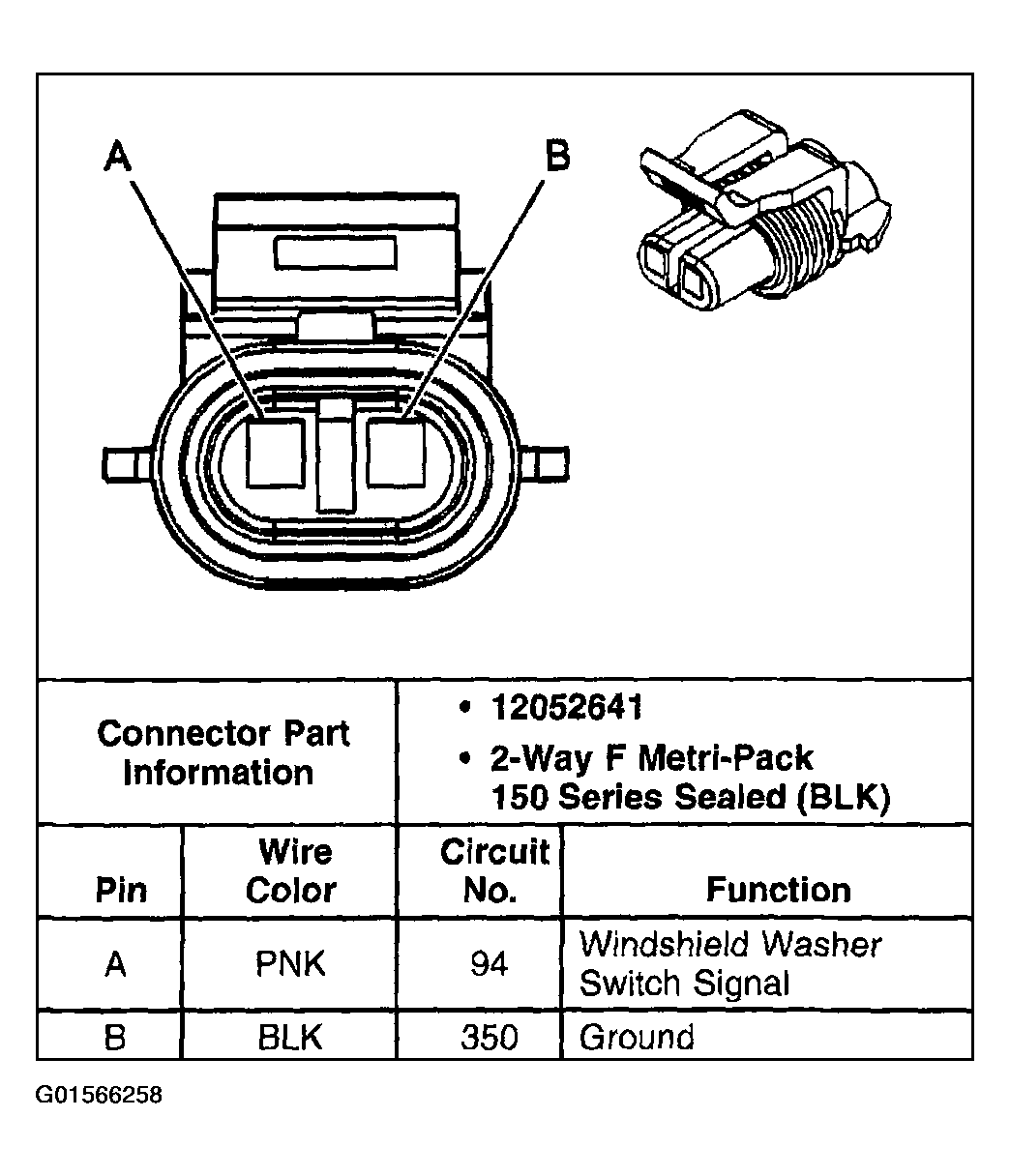

Fig 1: Windshield Washer Fluid Pump Connector End View Terminals
G01566258Courtesy of GENERAL MOTORS CORP.
