Seat Belt Connector End Views

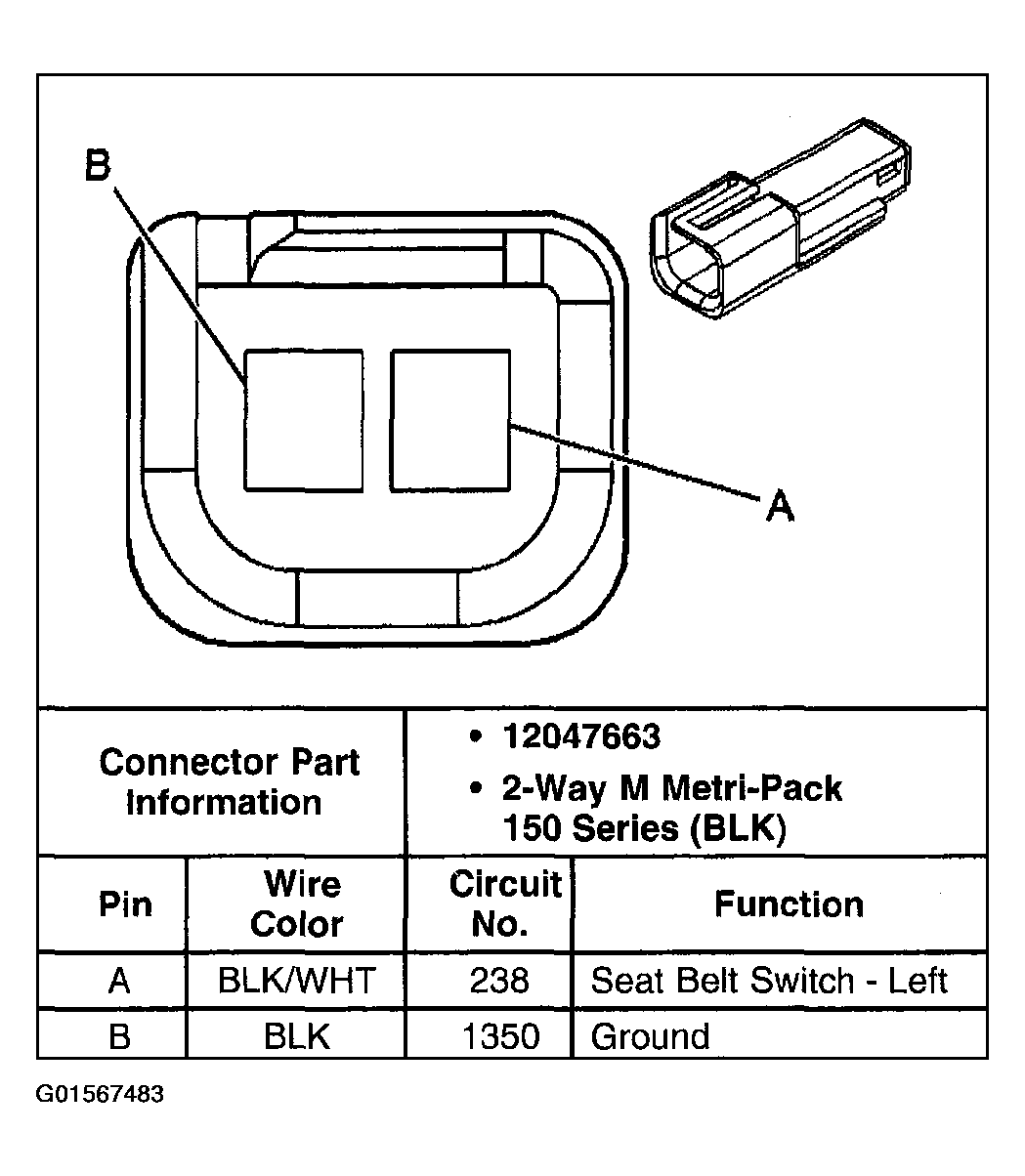

Fig 1: Seat Belt Buckle Switch
G01567483Courtesy of GENERAL MOTORS CORP.
