Installation Procedure

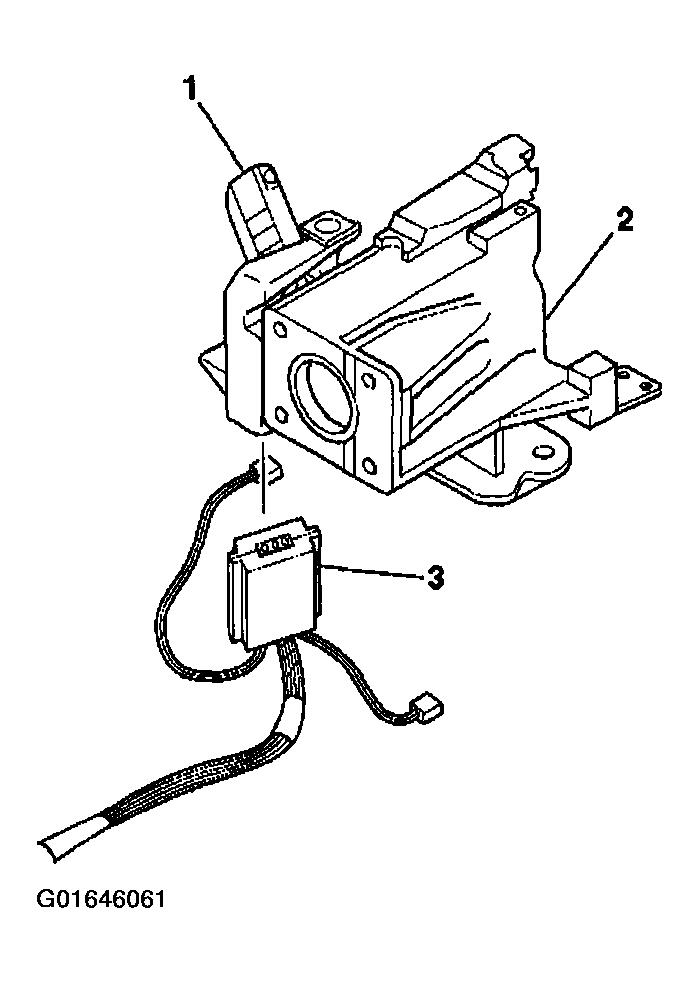

Slide the ignition switch assembly (3) into the ignition lock cylinder case assembly (1).

Fig 1: Installing Ignition Switch Assembly In To Ignition Lock Cylinder Case Assembly
Courtesy of GENERAL MOTORS CORP.

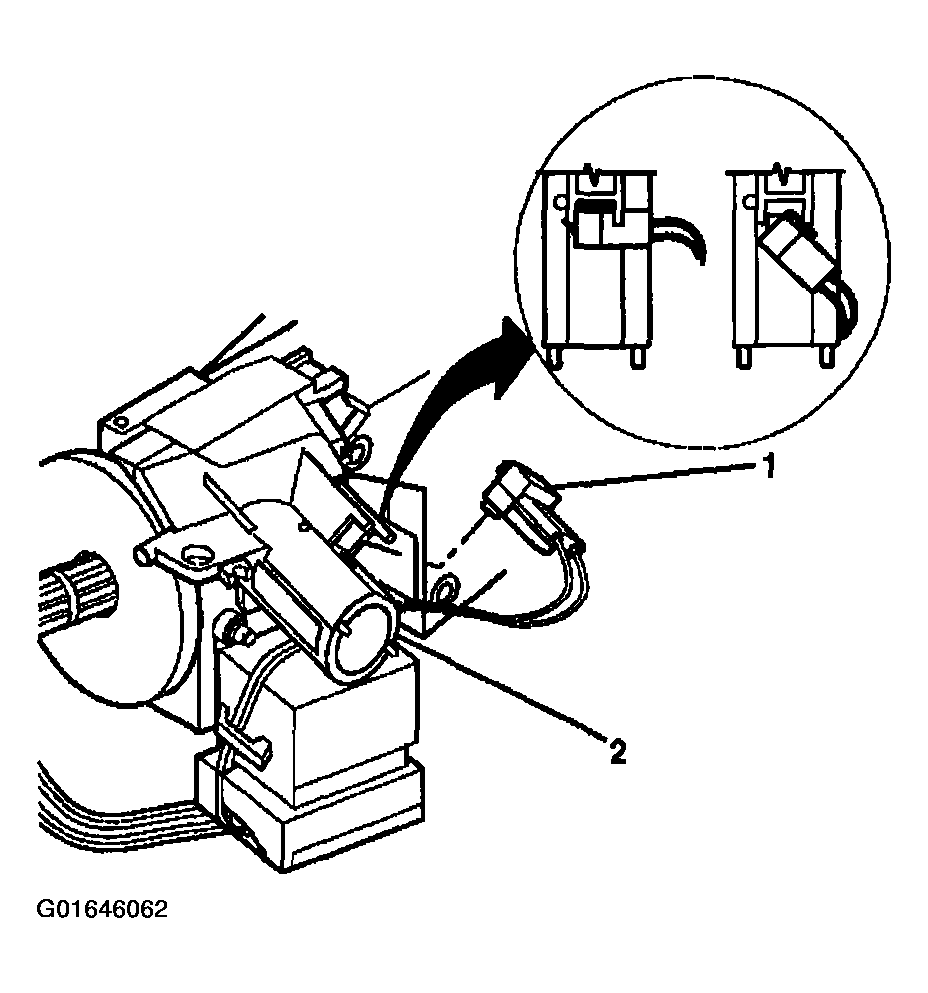

Install the key alarm connector (1) into the ignition lock cylinder case assembly (2).
1. 2.1. Push the key alarm connector (1) into the ignition lock cylinder case assembly (2).
2. 2.2. Rotate the key alarm connector (1) 90 degrees so that the key alarm connector (1) locks into place.
3. 2.3. Install the passkey connector into the ignition lock cylinder case assembly (2).
Fig 2: Installing Key Alarm Connector
Courtesy of GENERAL MOTORS CORP.

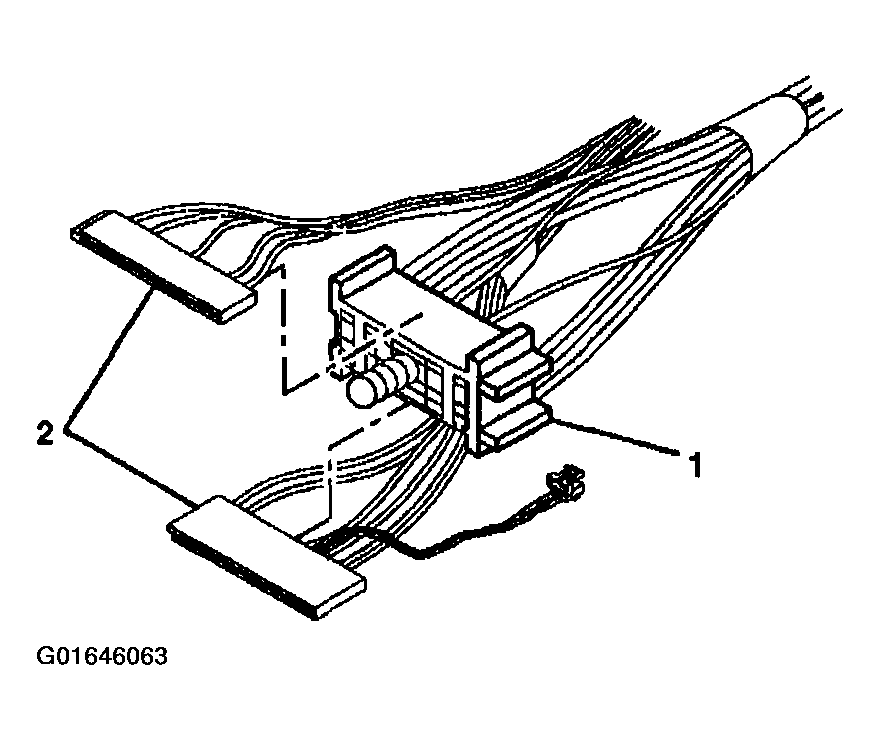

Connect the multifunction switch electrical connectors to the bulkhead connector (1).

Fig 3: Connecting Multifunction Switch Electrical Connectors To Bulkhead Connector
Courtesy of GENERAL MOTORS CORP.

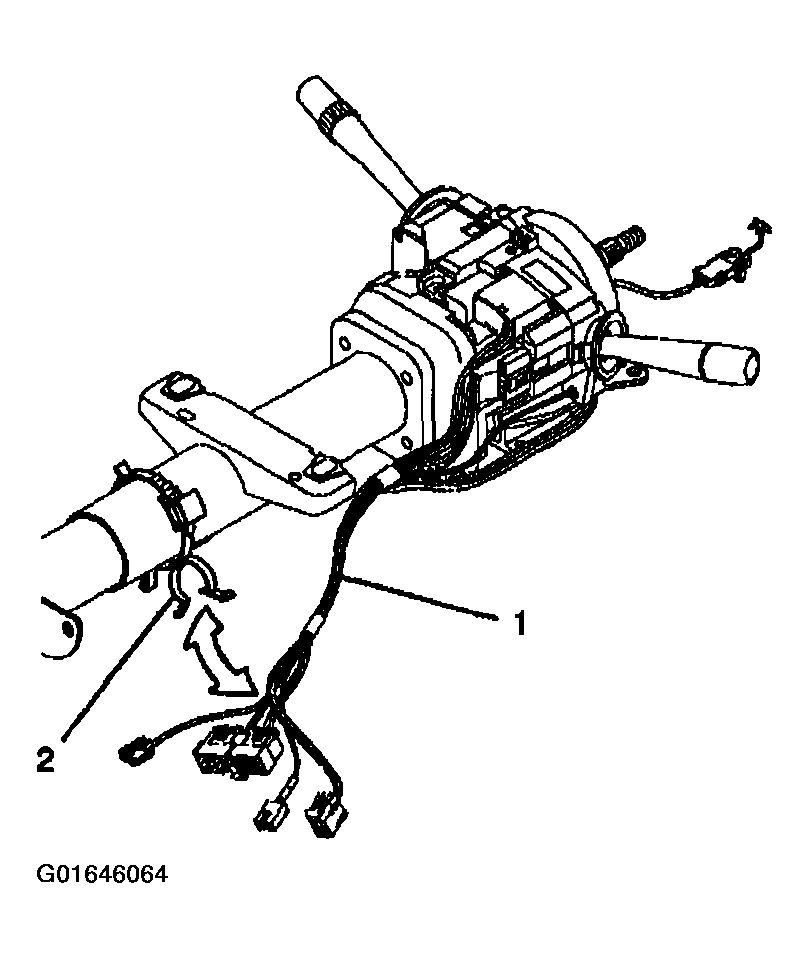

Install the wire harness assembly (1) to the wire harness strap (2).

Fig 4: Installing Wire Harness Assembly To Wire Harness Strap
Courtesy of GENERAL MOTORS CORP.

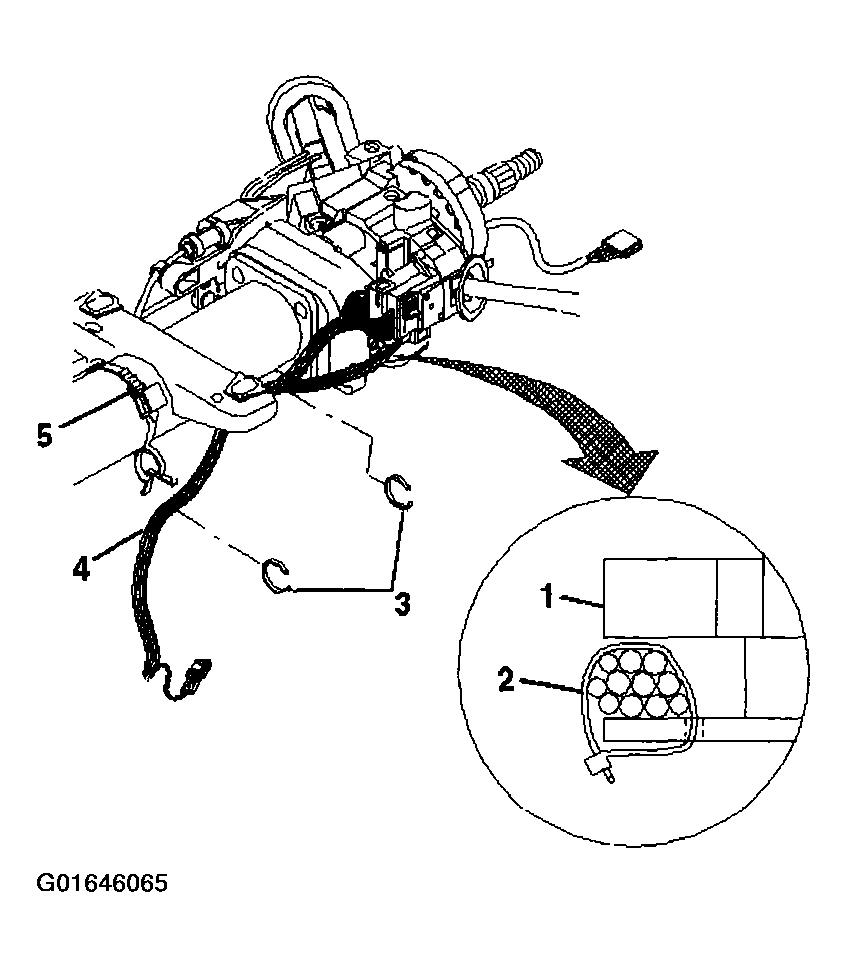

Attach new wire harness straps (3) to the wire harness assembly (4).

Fig 5: Connecting New Wire Harness Straps To Wire Harness Assembly
Courtesy of GENERAL MOTORS CORP.

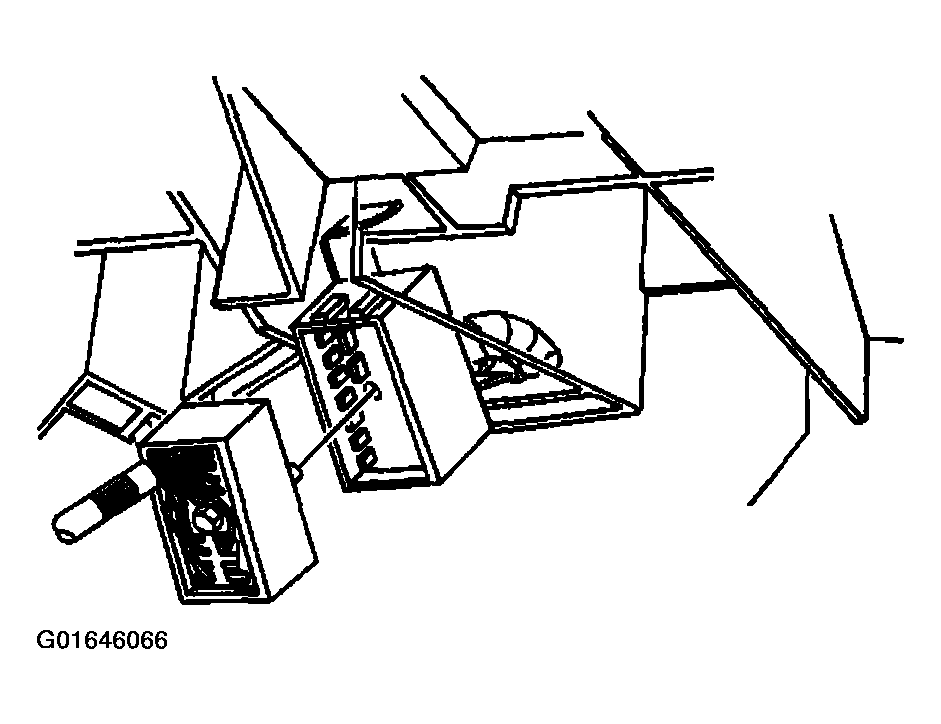

Connect the steering column electrical connectors to the vehicle.
Install the trim covers to the column. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.

Fig 6: Connecting Steering Column Electrical Connectors To Vehicle
Courtesy of GENERAL MOTORS CORP.
