Installation Procedure

  1. Install the multifunction alarm assembly to the convenience center.

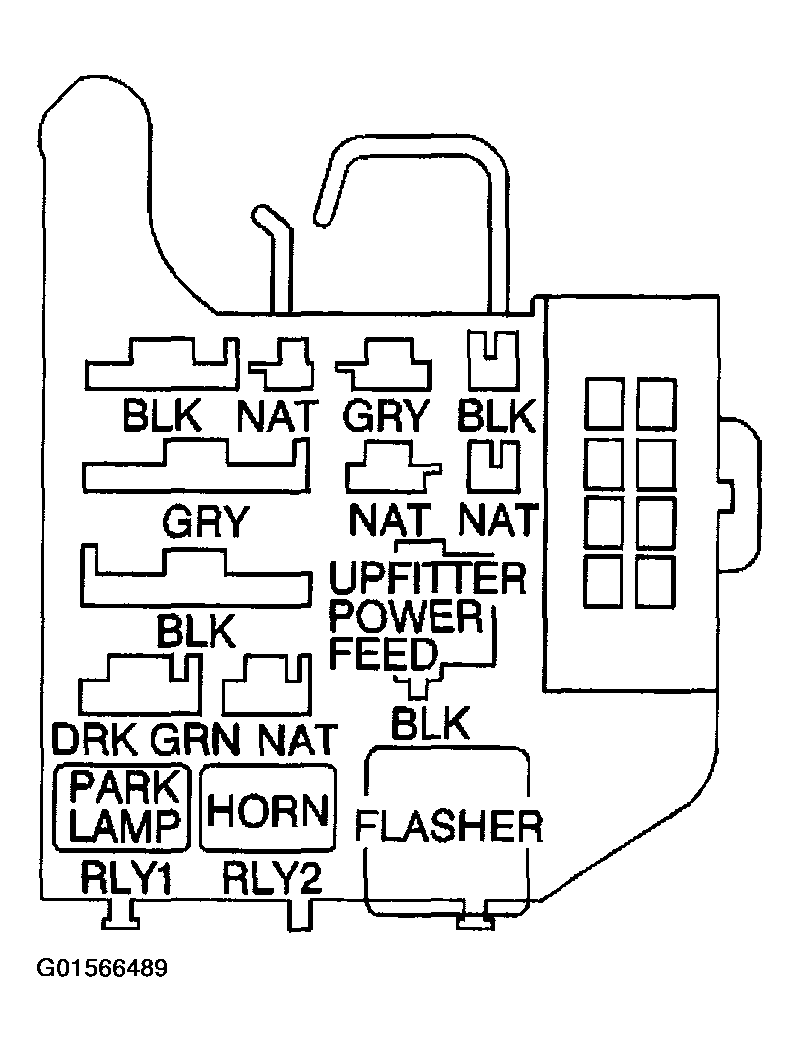

    Fig 1: Installing Multifunction Alarm Assembly To Convenience Center
    G01566489Courtesy of GENERAL MOTORS CORP.
  2. Align the retaining tab.
  3. Press the tab in place
