Removal Procedure
- Remove the front door window belt filler.
- Remove the sound insulator patch.
- Disconnect the electrical connector, if equipped.

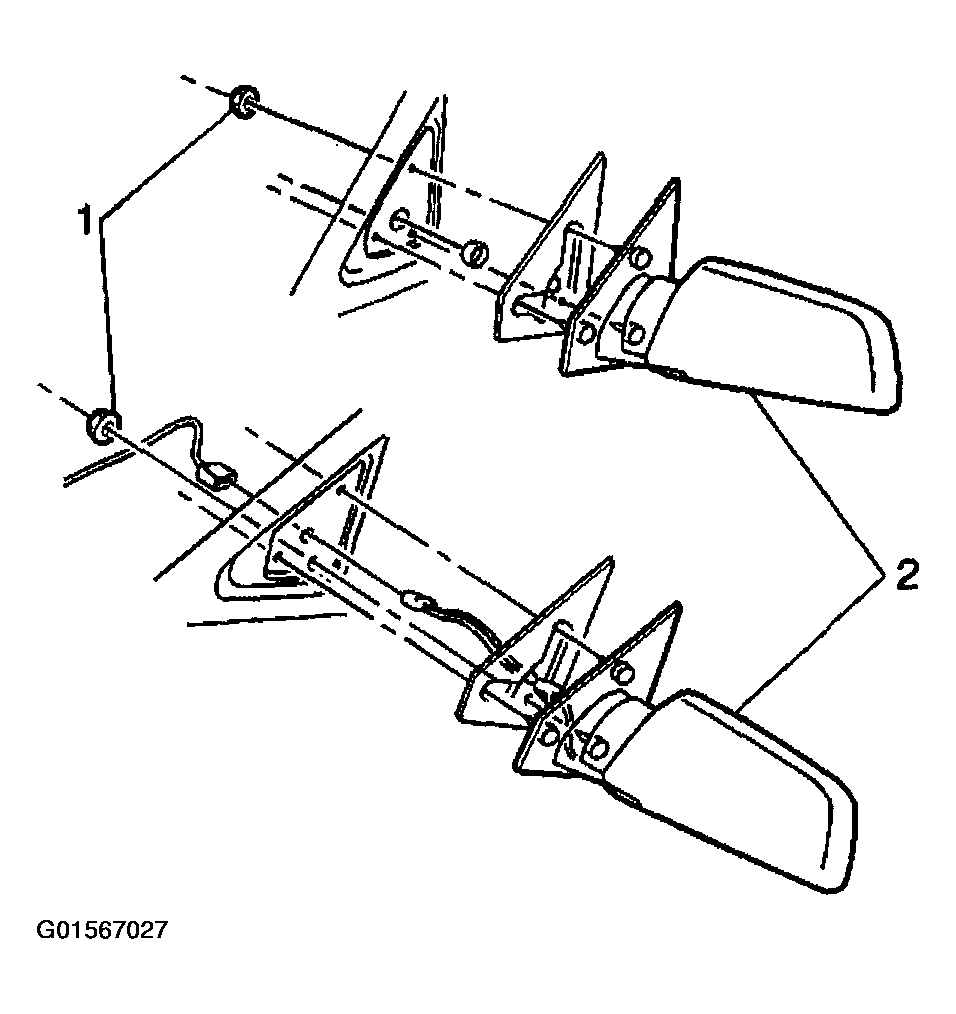

- Remove the nuts (1) from the mirror.
- Remove the mirror (2) from the door.
Courtesy of GENERAL MOTORS CORP.
