Engine Electrical Connector End Views
Engine Electrical Connector End Views

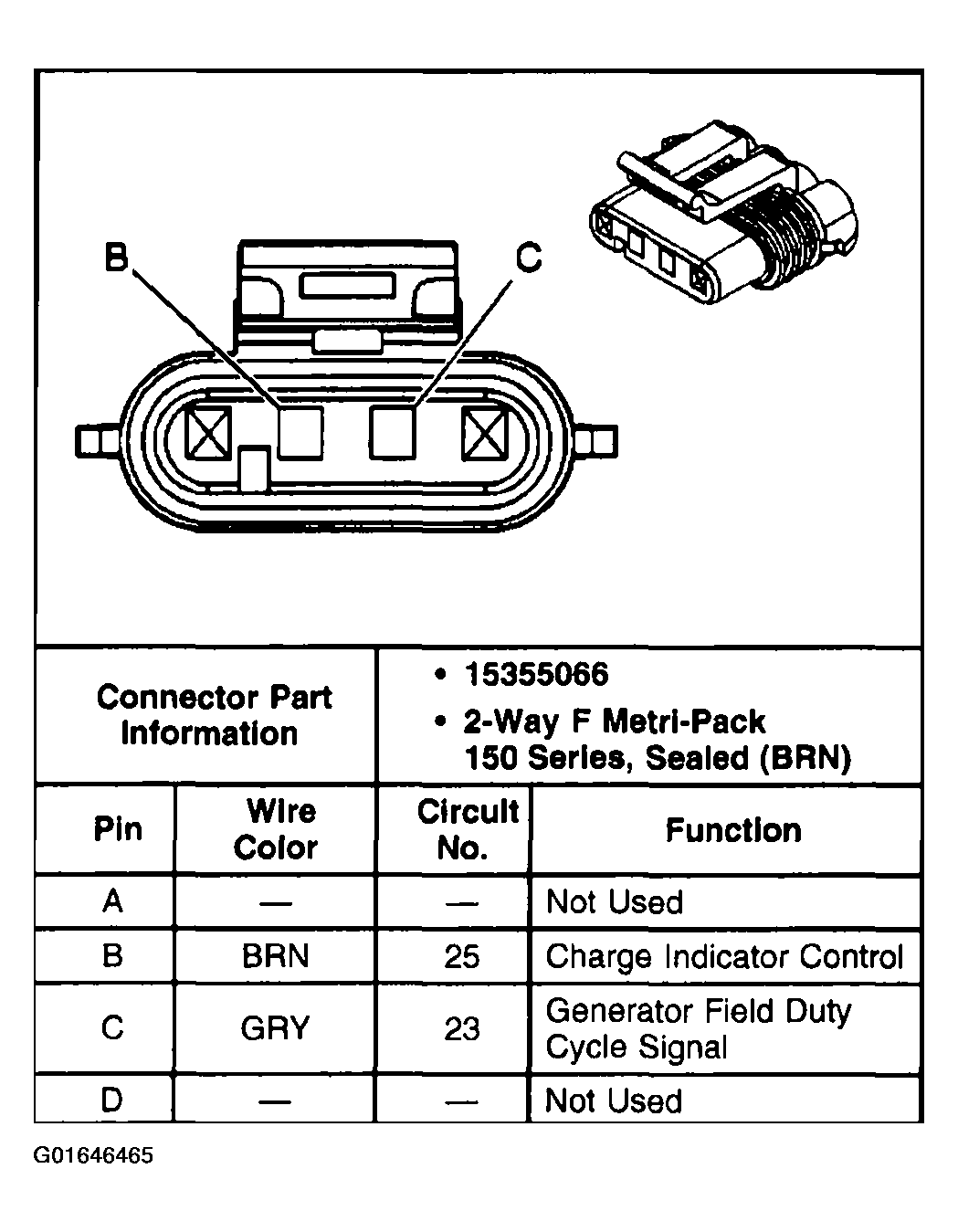

Fig 1: Identifying Generator Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
