Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Turn off all the lamps and accessories.
  2. Turn the ignition OFF.
  3. Remove the battery ground (negative) cable and bolt from the battery 4.3L.

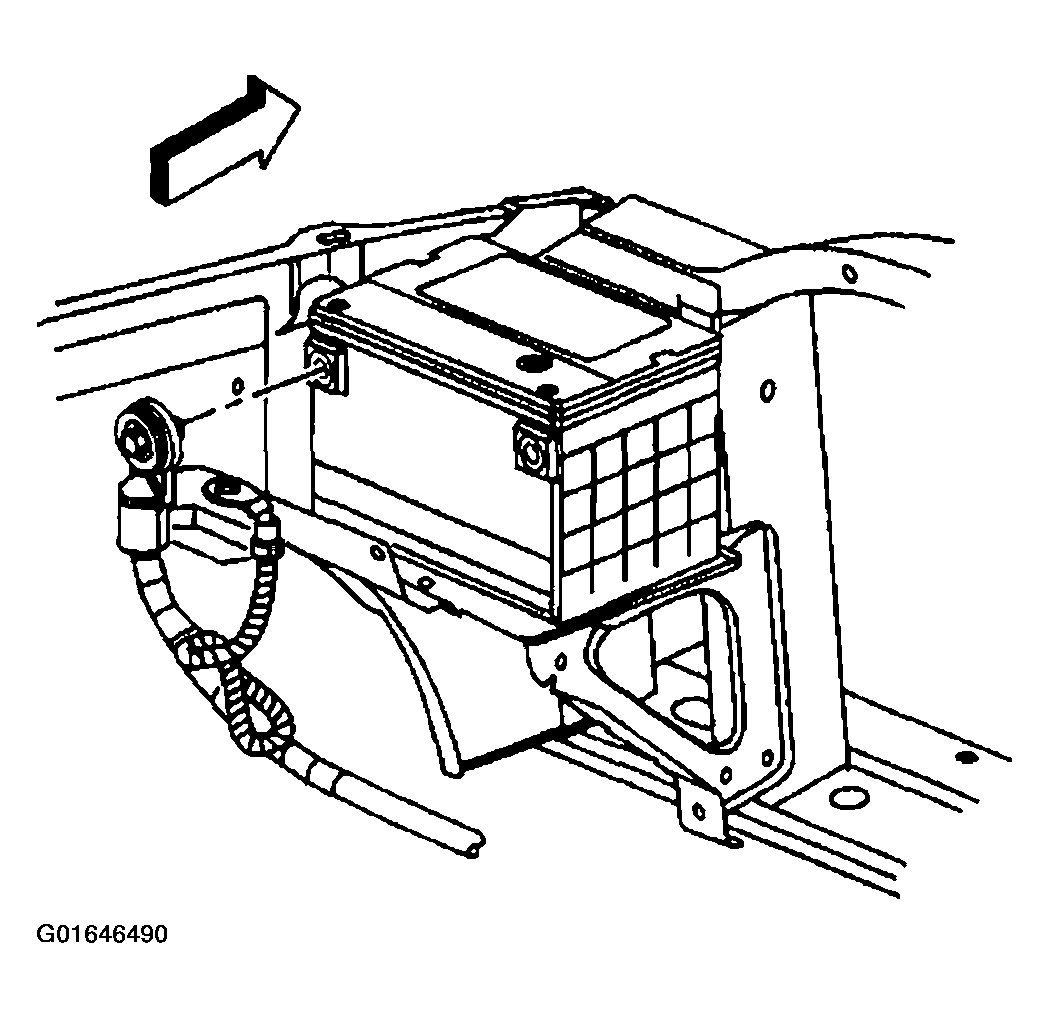

    Fig 1: Removing Battery Ground (Negative) Cable And Bolt From Battery 4.3L
    G01646490Courtesy of GENERAL MOTORS CORP.
