Connector Identification

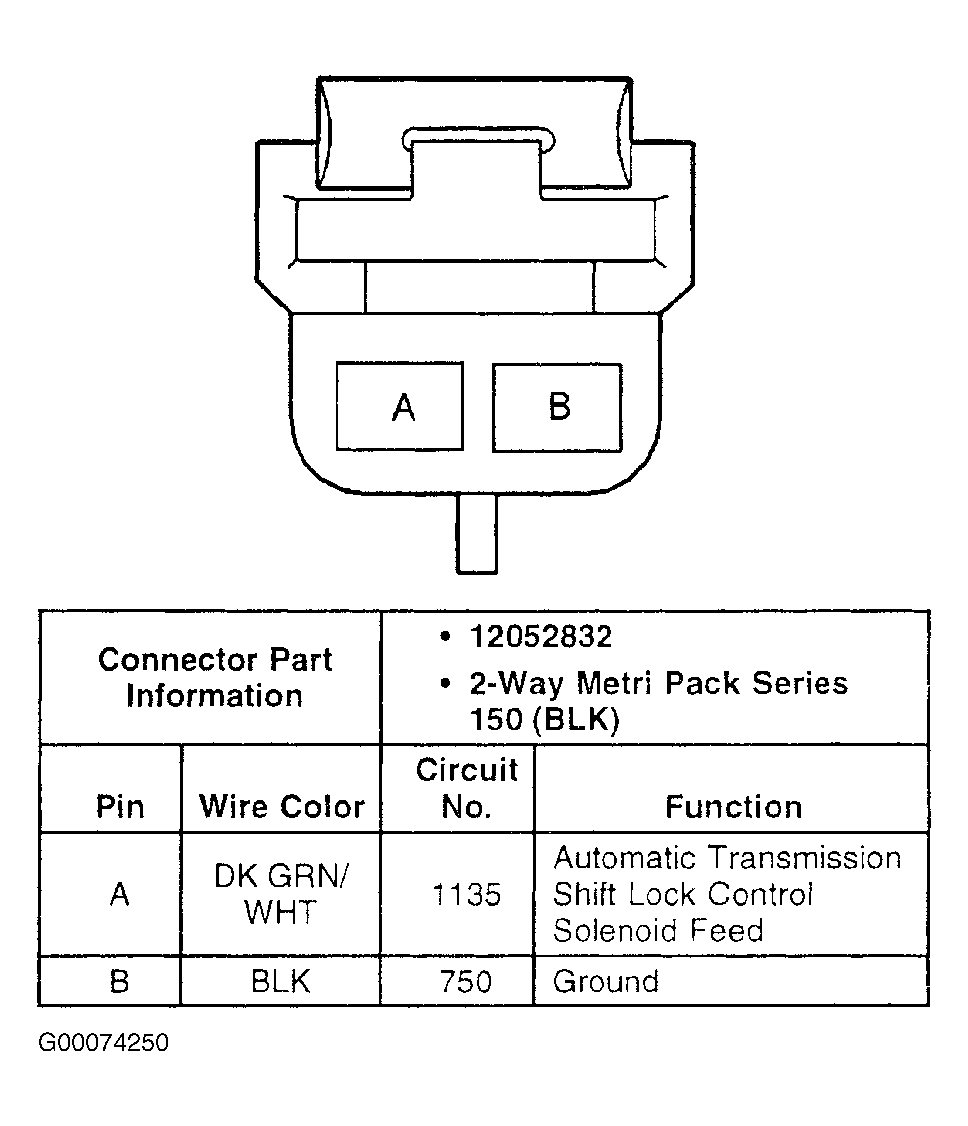

Fig 1: Identifying A/T Shift Lock Control Solenoid Connector Terminals

Courtesy of GENERAL MOTORS CORP.

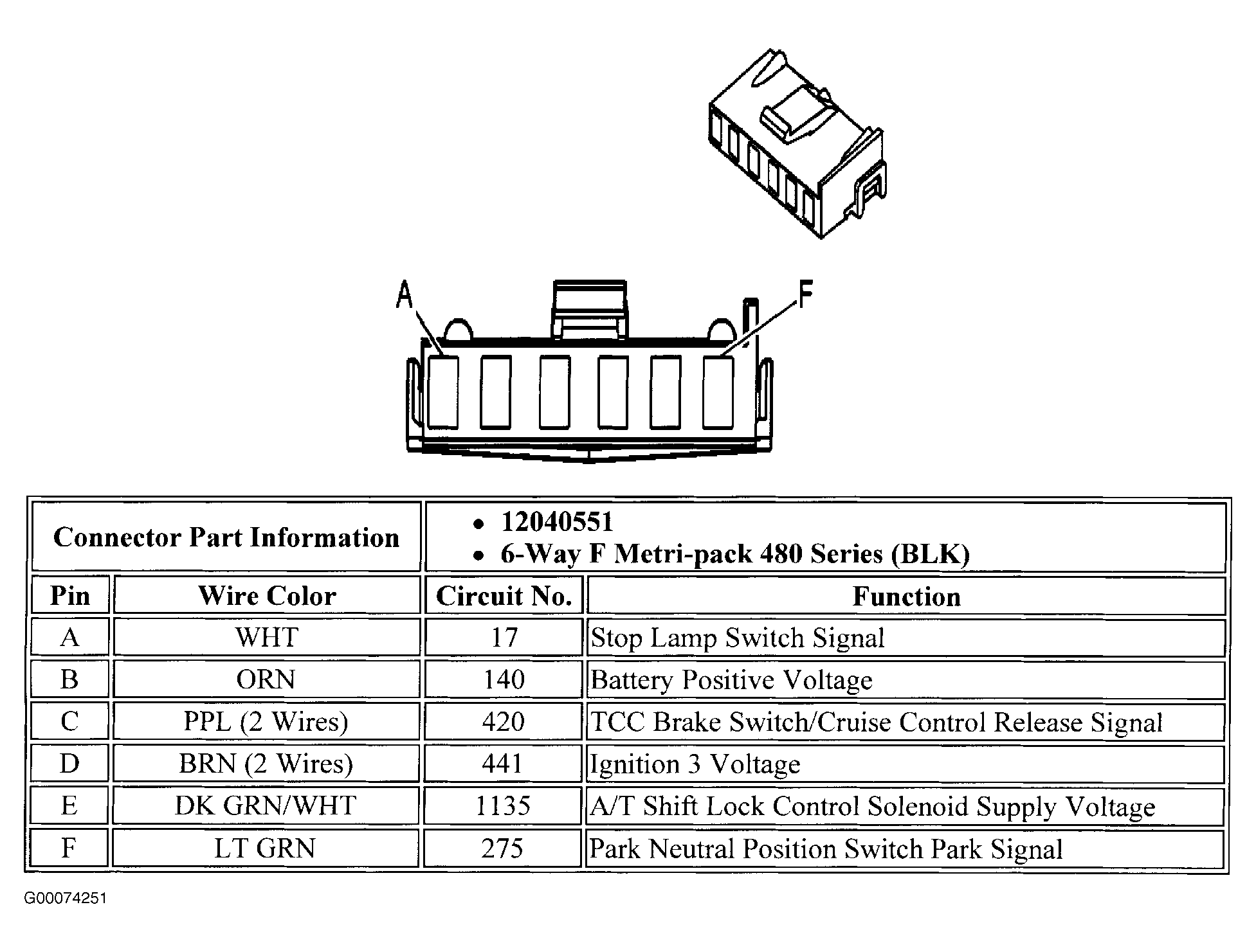

Fig 2: Identifying Stoplamp Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.
