Installation Procedure

  1. Install the power steering reservoir.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the power steering reservoir mounting bolts.

    Tighten

    Tighten the power steering reservoir mounting bolts to 4 N.m (35 lb in).

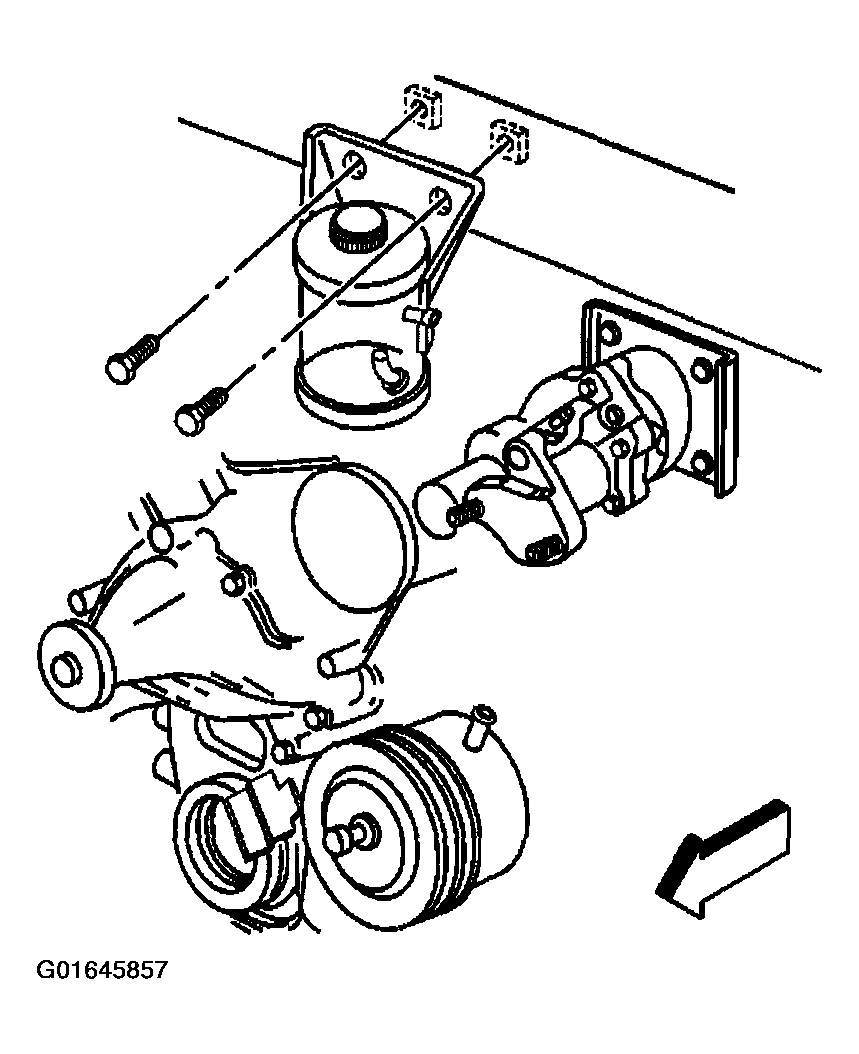

    Fig 1: Power Steering Reservoir Mounting Bolts
    G01645857Courtesy of GENERAL MOTORS CORP.
  3. Connect the power steering reservoir to the power steering pump hose to the power steering reservoir.

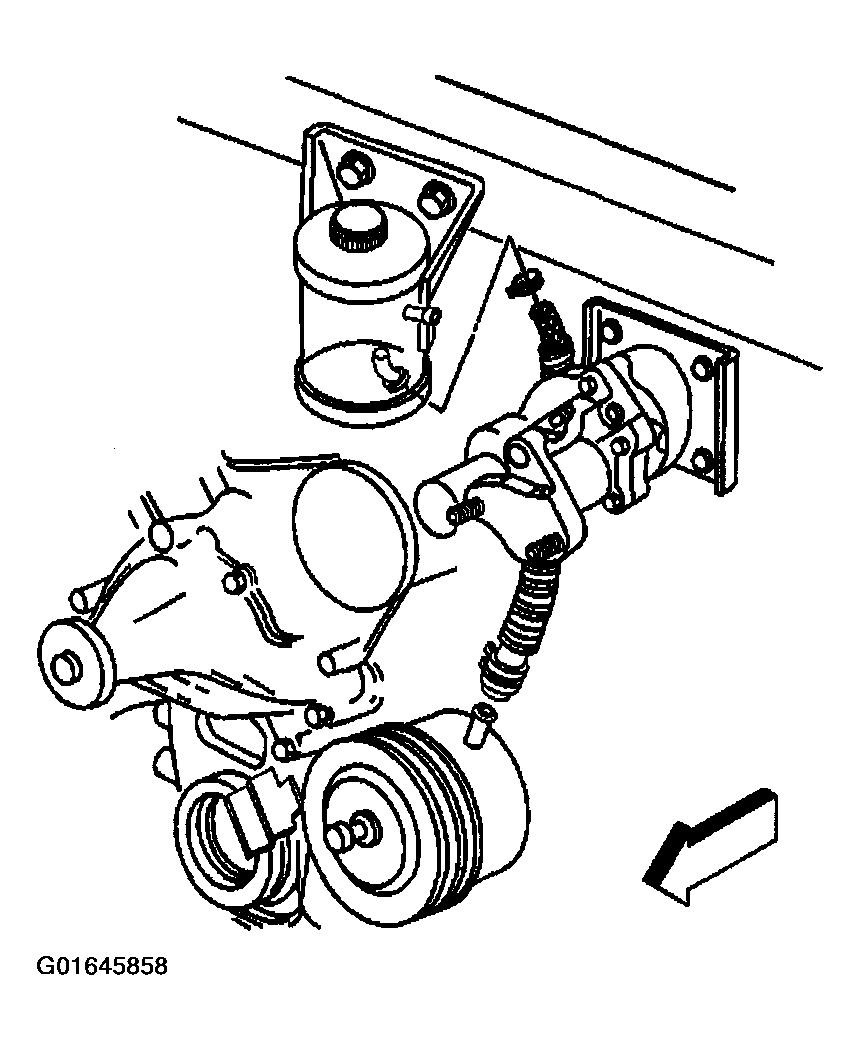

    Fig 2: Connecting Power Steering Reservoir To Power Steering Pump Hose
    G01645858Courtesy of GENERAL MOTORS CORP.
  4. Connect the hydraulic brake booster hose to the power steering reservoir.

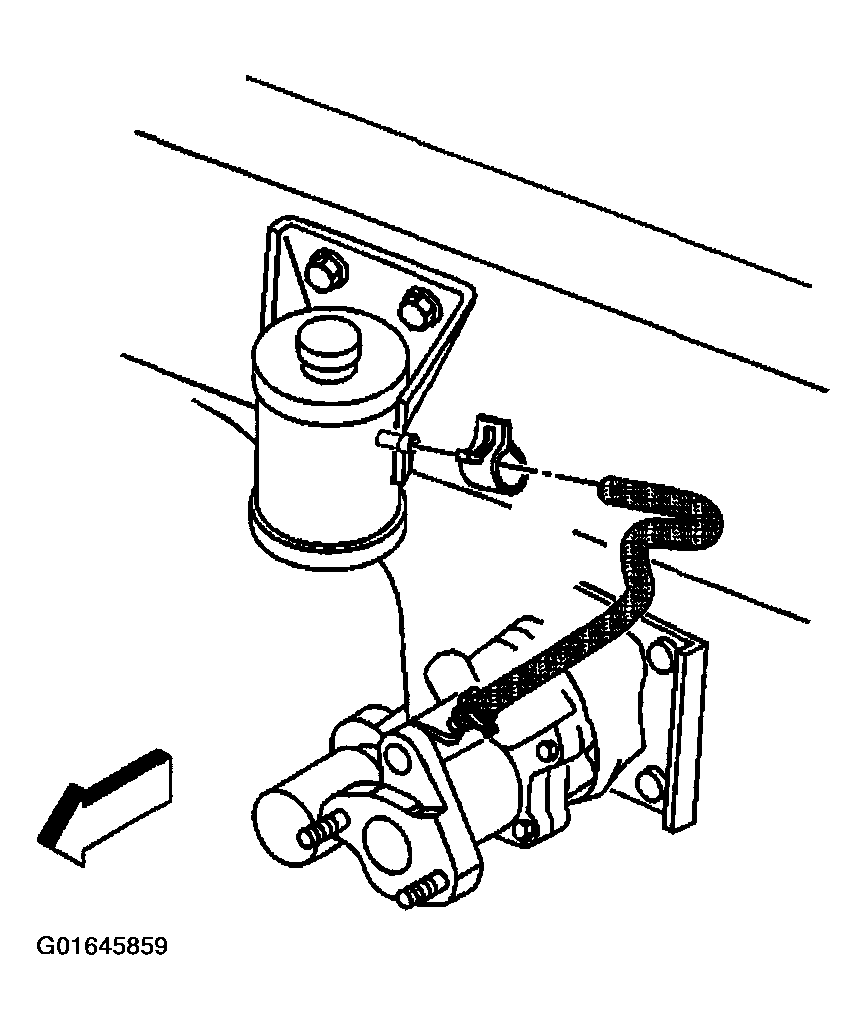

    Fig 3: Connecting Hydraulic Brake Booster Hose To Power Steering Reservoir
    G01645859Courtesy of GENERAL MOTORS CORP.
  5. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM
