Electronic Ignition System: Notes

Fig 1: Locating Camshaft Position Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 2: Locating Crankshaft Position Sensor

Courtesy of GENERAL MOTORS CORP.

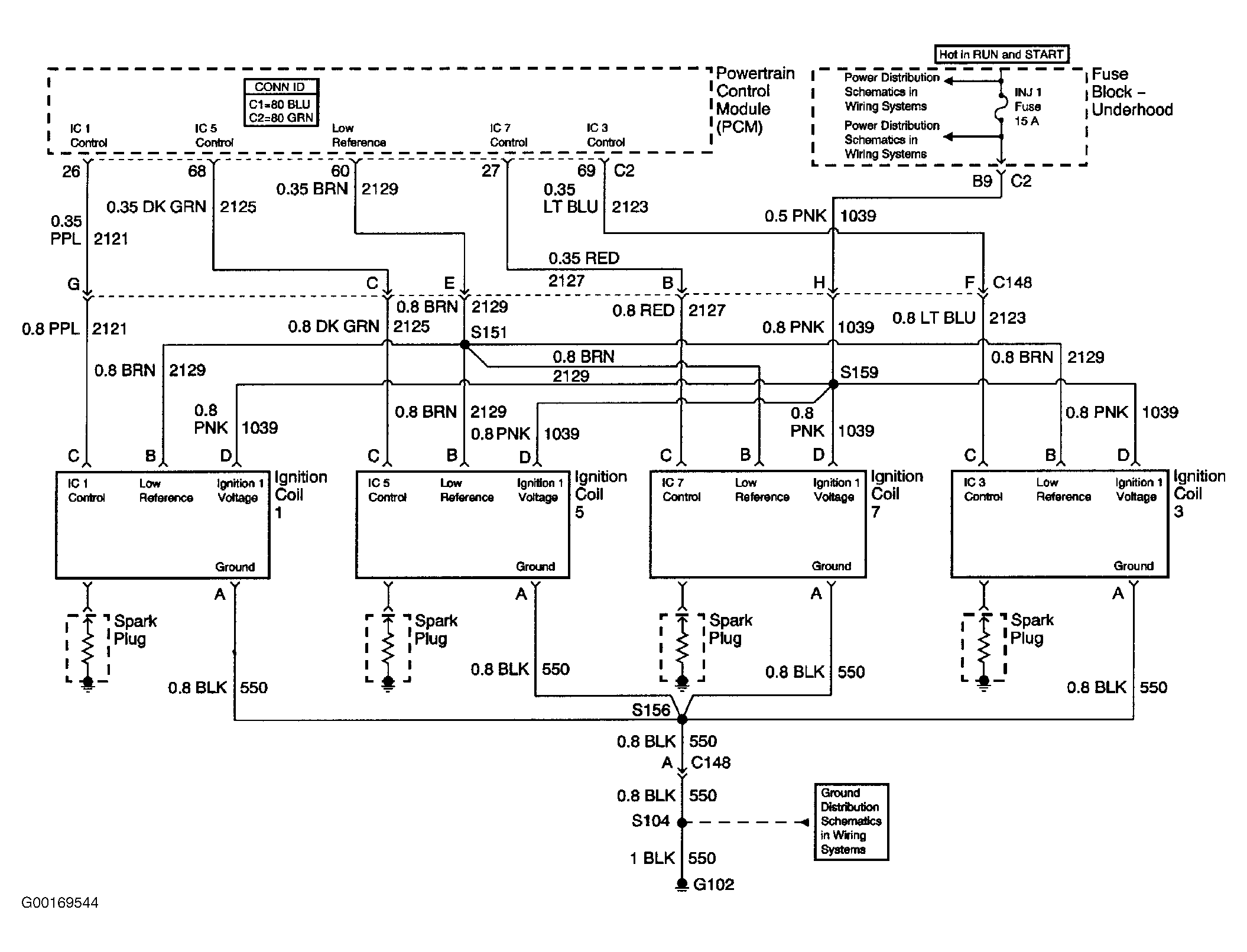

Fig 3: Ignition Coils No. 1, 3, 5 & 7 Electrical Schematic

Courtesy of GENERAL MOTORS CORP.

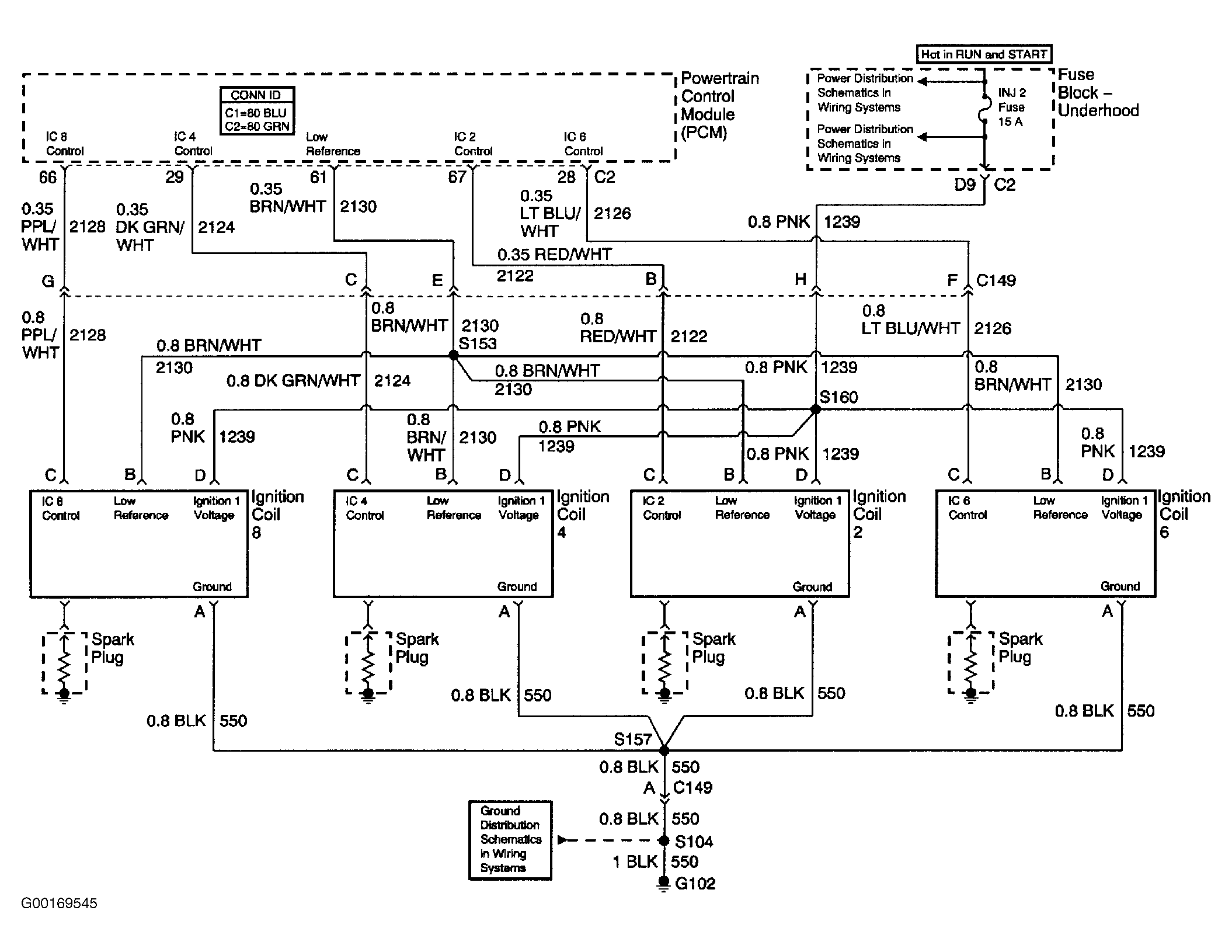

Fig 4: Ignition Coils No. 2, 4, 6 & 8 Electrical Schematic

Courtesy of GENERAL MOTORS CORP.

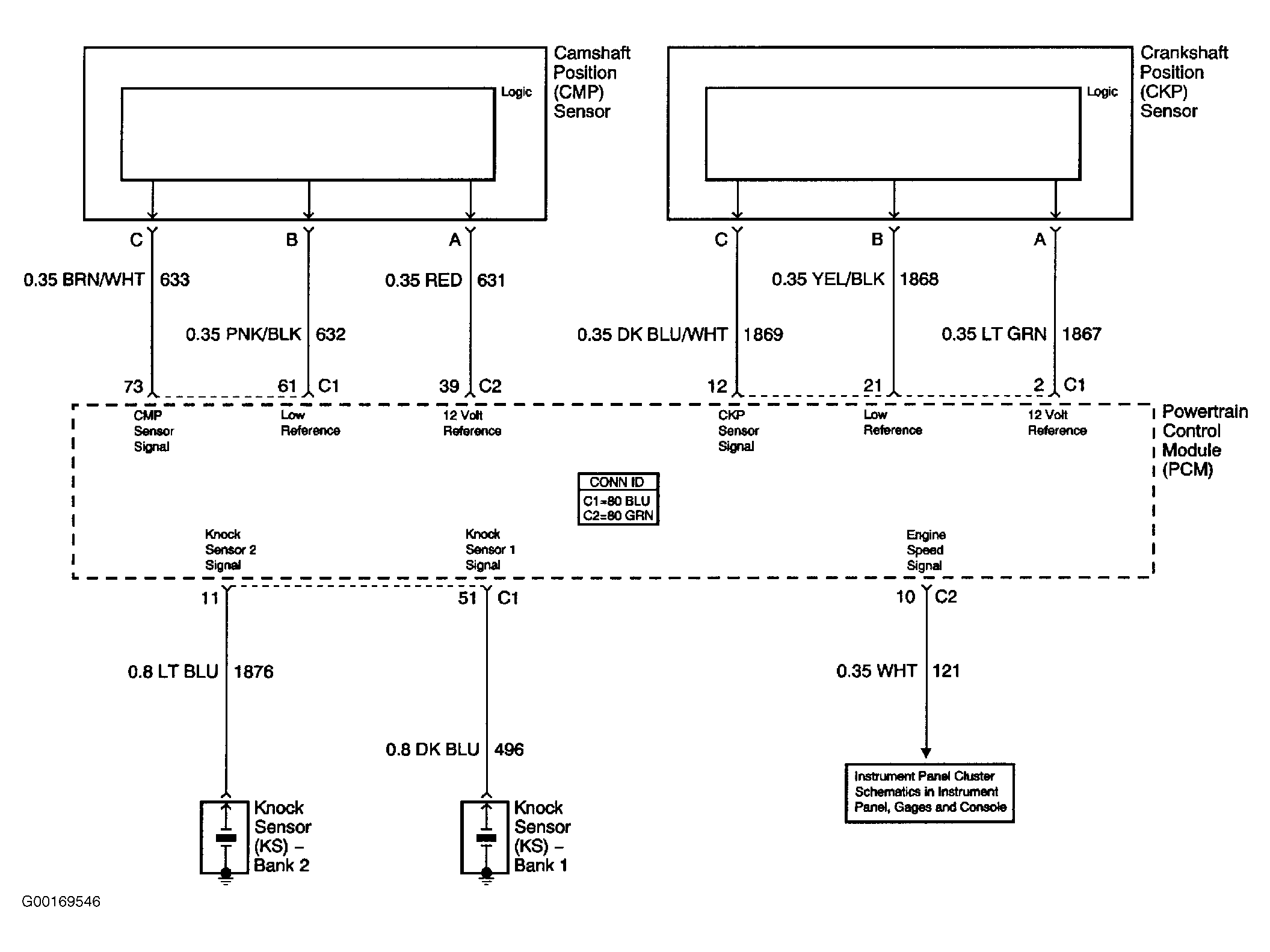

Fig 5: Camshaft Position, Crankshaft Position & Knock Sensors Electrical Schematic

Courtesy of GENERAL MOTORS CORP.
