Home › Chevrolet › 2003 › Avalanche 2500, RWD › Repair and Diagnosis › Engine Performance › System › Engine Controls - System & Component Testing - 8.1L › Computerized Engine Controls › Powertrain Control Module › Notes

Powertrain Control Module: Notes

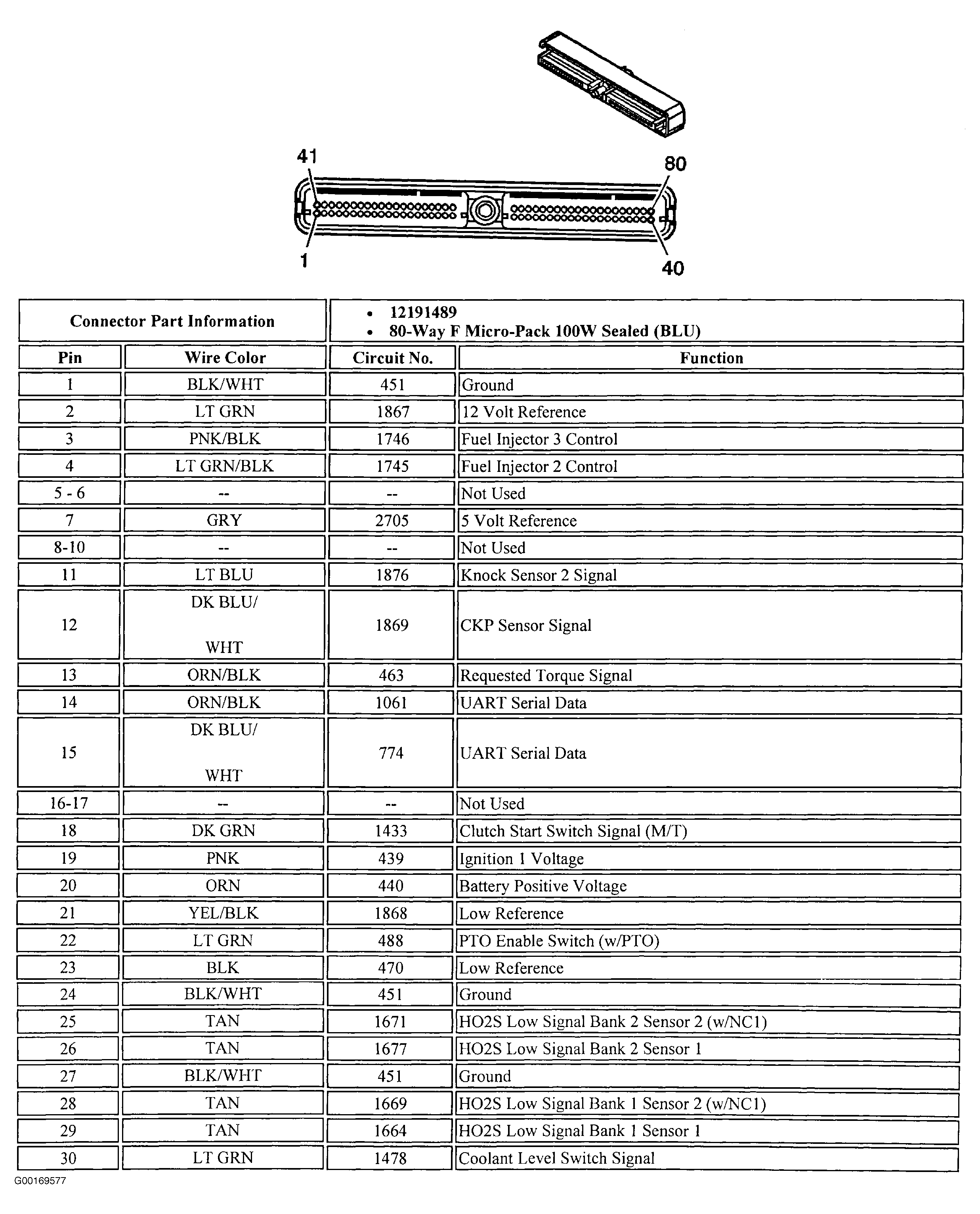

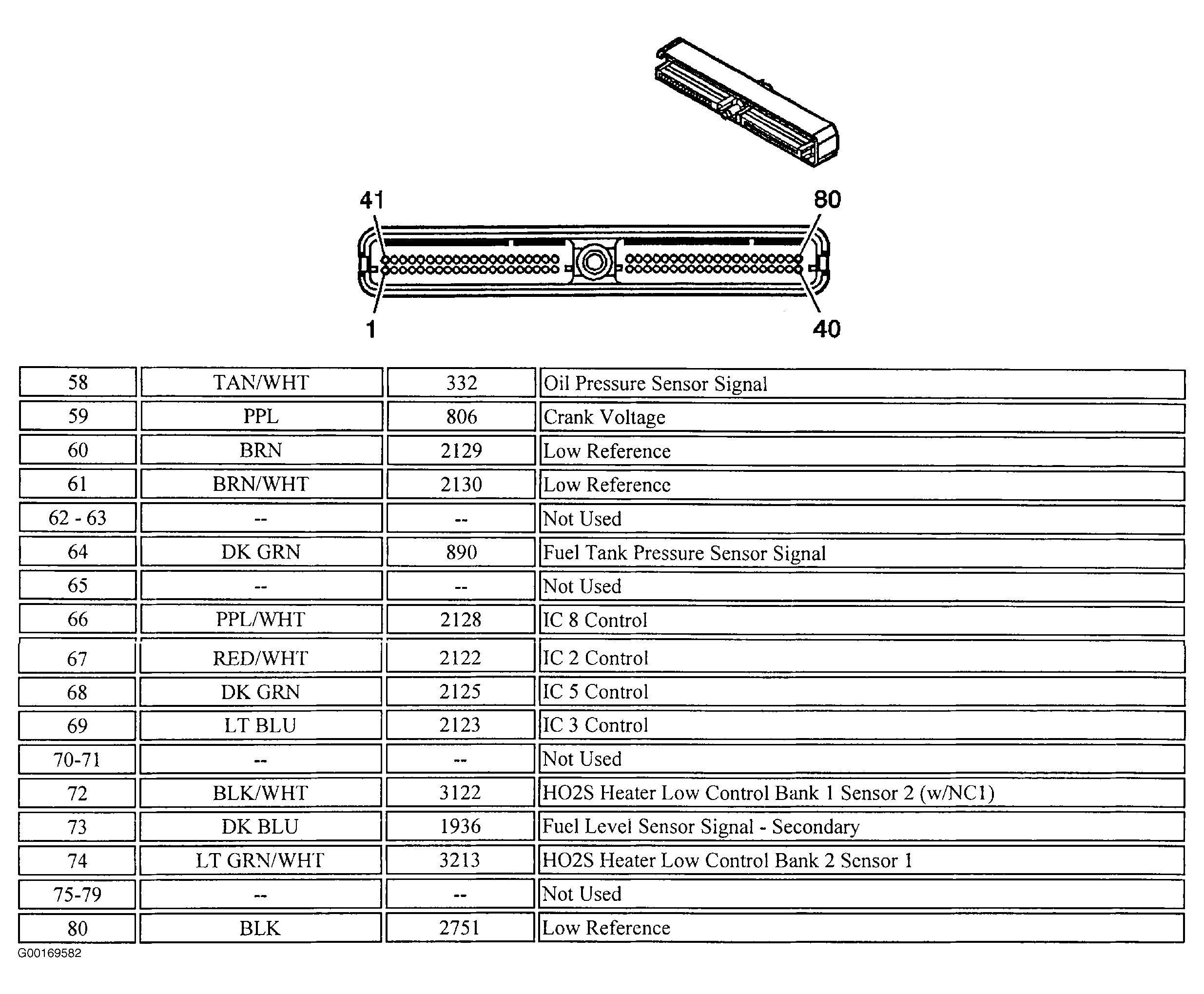

NOTE: To identify circuits referenced in the following ground and power tests, see WIRING DIAGRAMS  or Figure -Figure .
