Recirculating Ball System

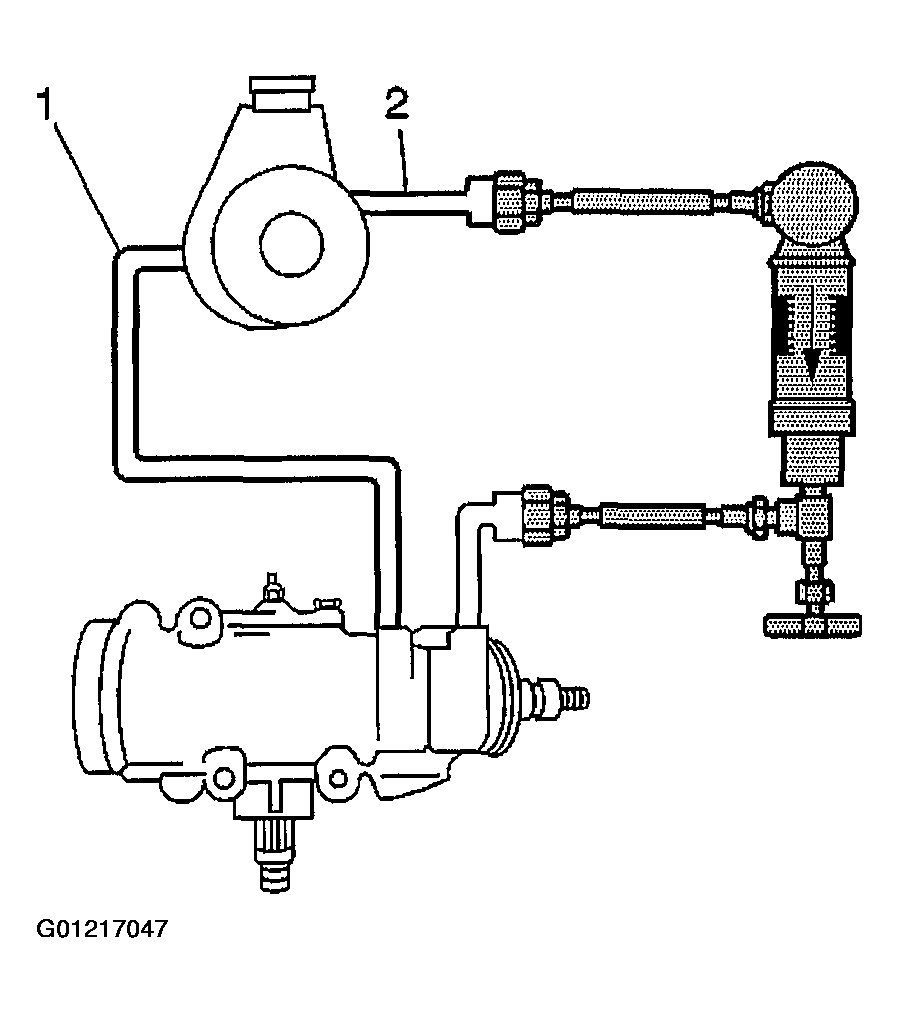

Fig 1: Recirculating Ball System
G01217047Courtesy of GENERAL MOTORS CORP.

Legend

  1. (1) Power Steering Return Hose
  2. (2) Power Steering Pressure Hose
