Removal Procedure

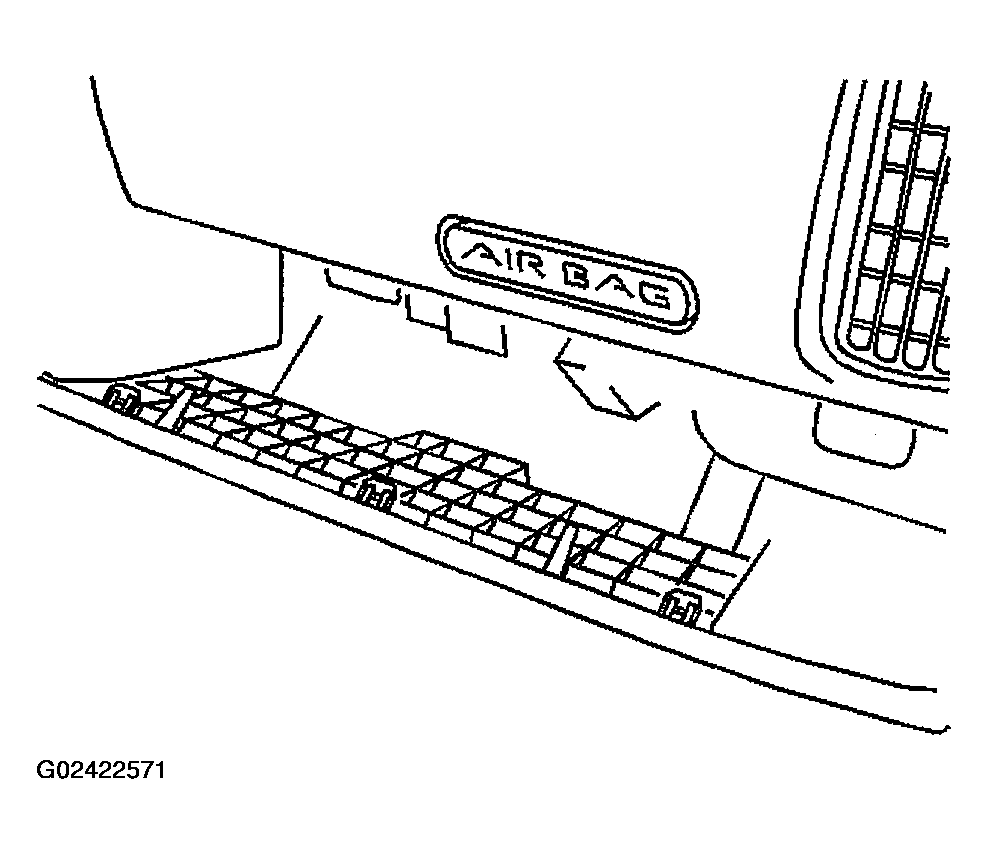

Remove the right side knee bolster trim panel. Refer to KNEE BOLSTER REPLACEMENT - RIGHT .

Fig 1: Removing Right Side Knee Bolster Trim Panel
Courtesy of GENERAL MOTORS CORP.

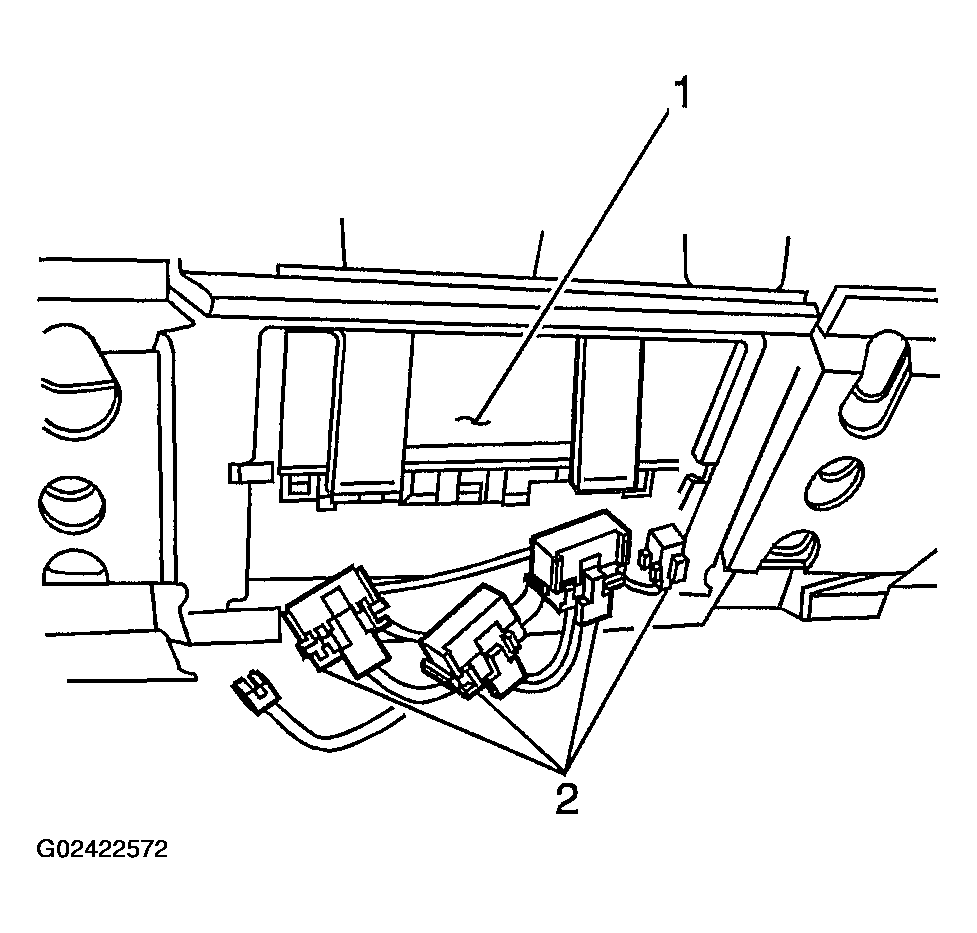

Disconnect the electrical connectors (2) from the Body Control Module (BCM) (1).

Fig 2: Disconnecting BCM Electrical Connectors
Courtesy of GENERAL MOTORS CORP.

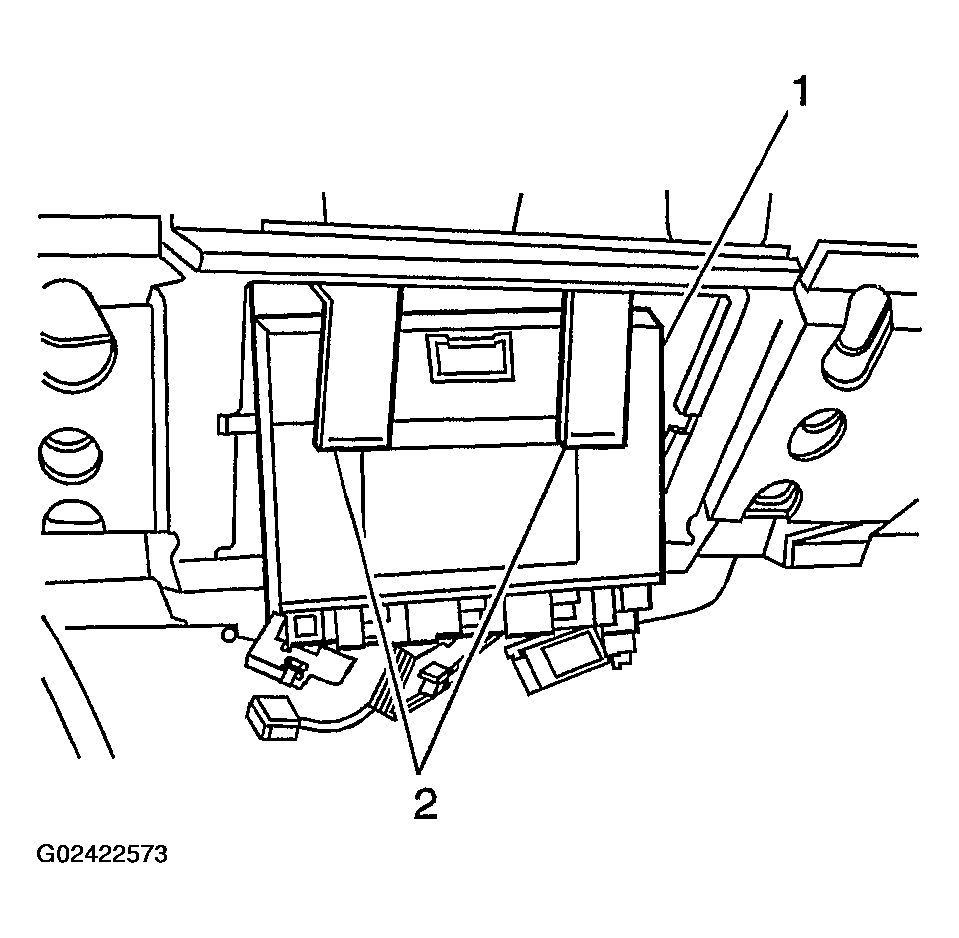

Release the tabs (2) retaining the BCM (1) to the bracket.
Remove the BCM (1) from the vehicle.

Fig 3: Removing BCM
Courtesy of GENERAL MOTORS CORP.
