Removal Procedure

  1. Remove the front passenger seat. Refer to SEAT REPLACEMENT .
  2. Remove the instrument panel lower extension, if equipped. Refer to INSTRUMENT PANEL (I/P) EXTENSION REPLACEMENT .
  3. Remove the left knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT .
  4. Remove the right knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT .
  5. Release the engine cover retainers (1, 3).
  6. Remove the engine cover from the vehicle (2).

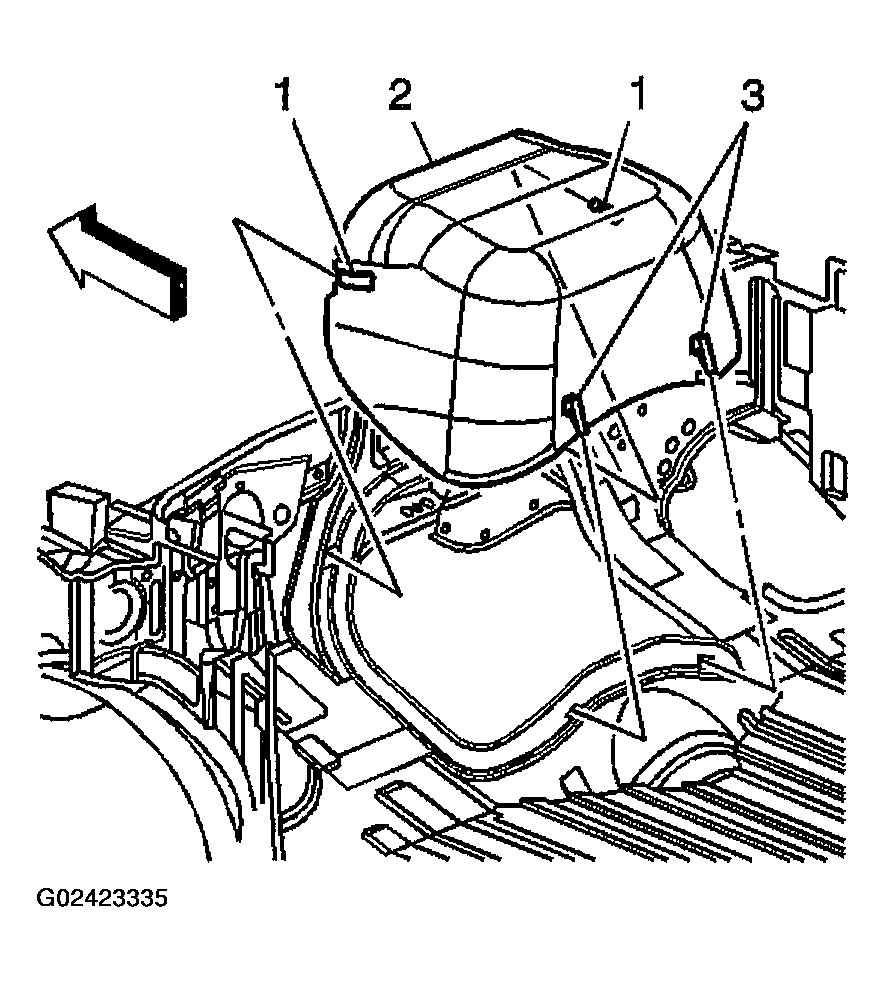

    Fig 1: Removing Engine Cover
    G02423335Courtesy of GENERAL MOTORS CORP.
