Installation Procedure

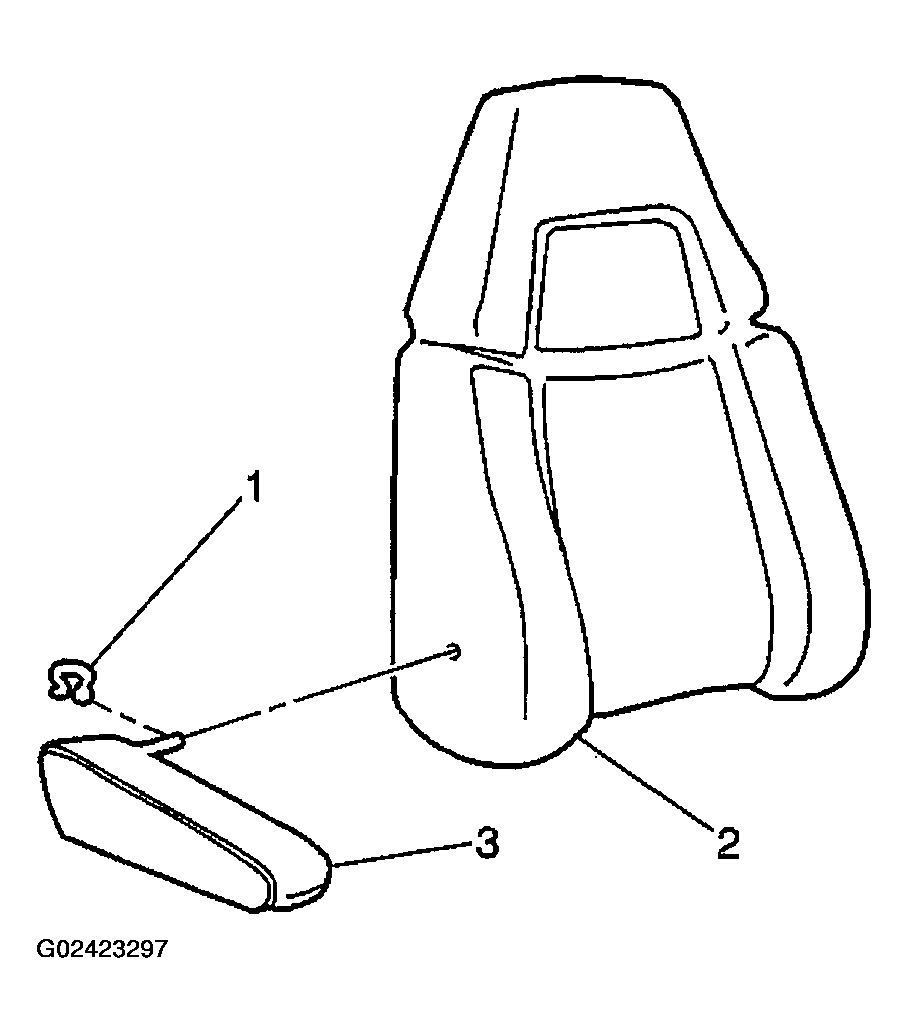

- Install the retaining clip (1) to the seatback (2).
- Ensure that the retaining clip is fully seated.
- Install the armrest (3) to the seatback.
- Press on the armrest in order to engage the armrest with the retaining clip in the seatback.
- Secure the bottom edge of the seatback cover. Refer to Seat Back Cover and Pad Replacement - Front .
