Removal Procedure

  1. Remove the seat from the vehicle. Refer to Seat Replacement .
  2. Remove the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .
  3. Remove the bolts (2,8) from the recliners on the right and left side.
  4. Remove the seat back frame.

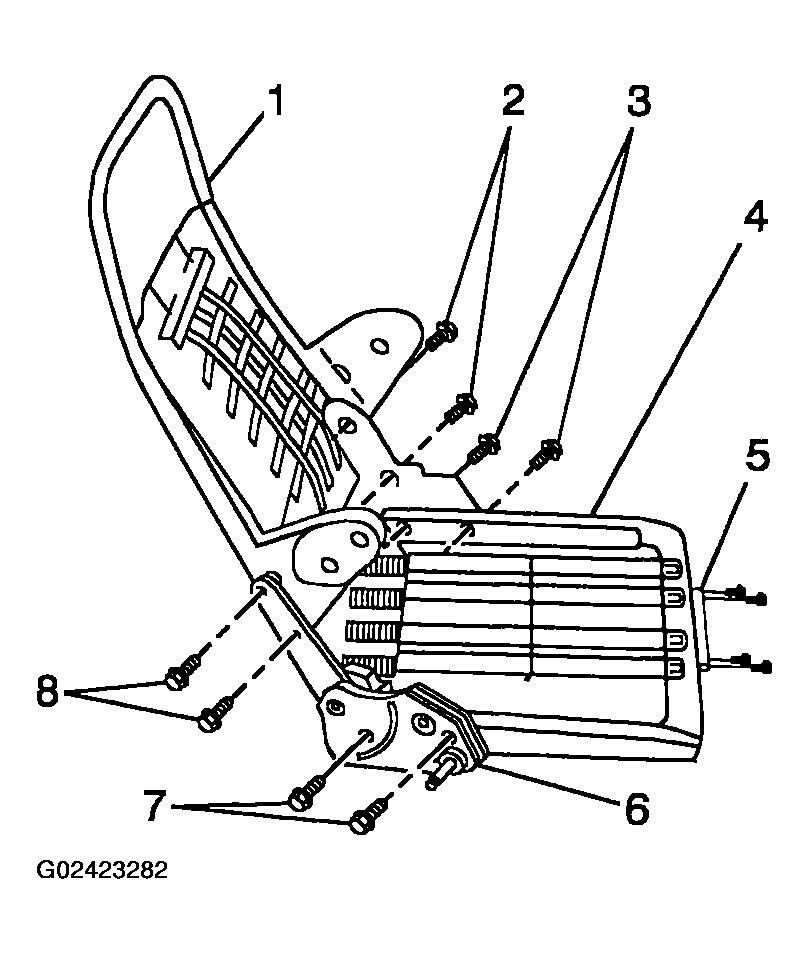

    Fig 1: Removing Front Seat Back Frame
    G02423282Courtesy of GENERAL MOTORS CORP.
