Removal Procedure

WARNING: Refer to SIR CAUTION .

Disable the SIR. Refer to ZONE 3 or ZONE 5 .
If seat is equipped with power seat motors, disconnect the electrical connector from the seat assembly.
Remove the nuts (3) that retain the seat assembly to the vehicle.
Remove the front seat assembly from the vehicle.

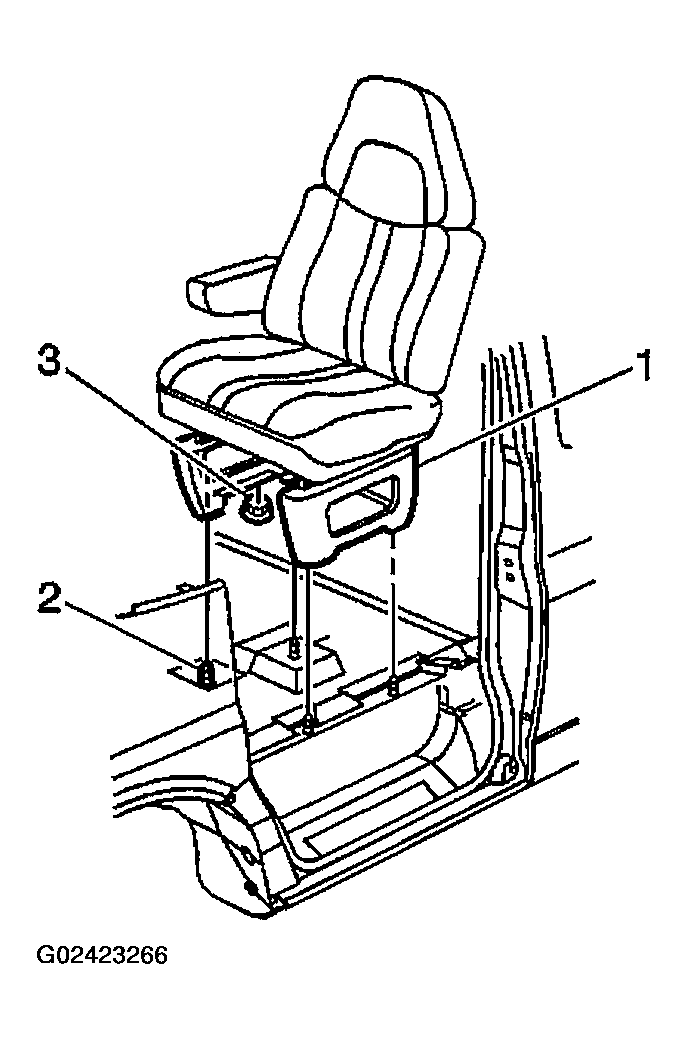

Fig 1: Removing Seat Assembly
Courtesy of GENERAL MOTORS CORP.
