Removal Procedure

  1. Remove the screws that retain the power seat adjuster switch (5) to the seat cushion (1).
  2. Remove the power seat adjuster switch from the seat cushion.
  3. Disconnect the electrical connector from the power seat adjuster switch.
  4. Remove the power seat adjuster switch from the vehicle.

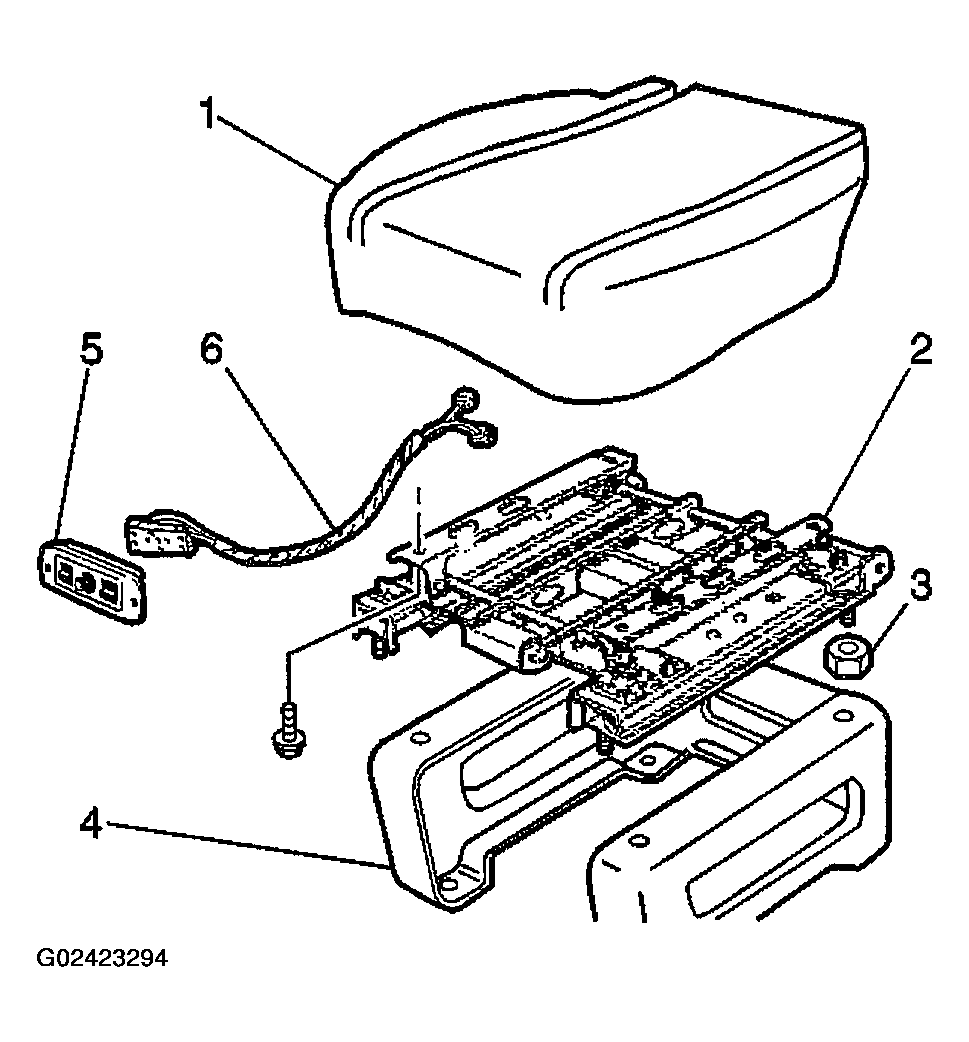

    Fig 1: Removing Power Seat Adjuster Switch
    G02423294Courtesy of GENERAL MOTORS CORP.
