Removal Procedure

Remove the sliding side door lower trim panel. Refer to Trim Panel Replacement - Sliding Door .

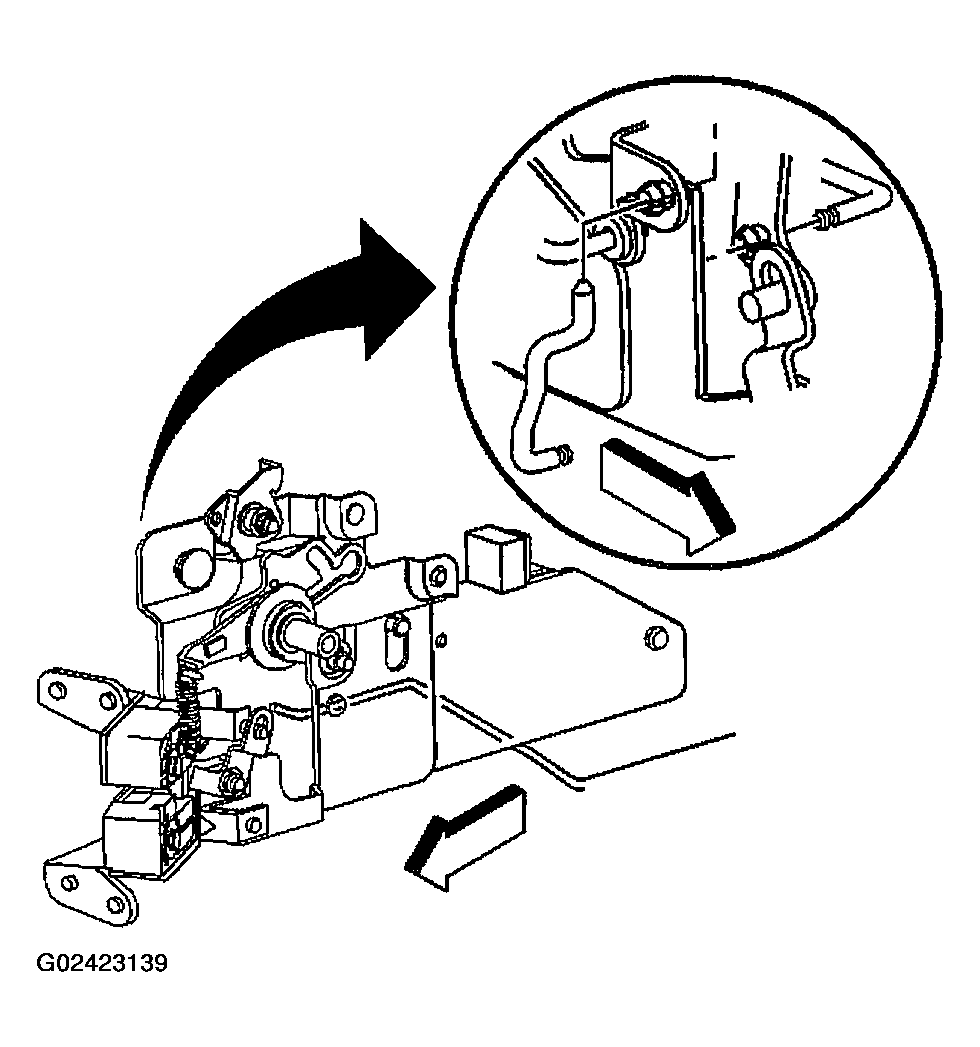

Remove the lock rods from the sliding side door control assembly.

Fig 1: Removing Lock Rods From Sliding Side Door Control Assembly
Courtesy of GENERAL MOTORS CORP.

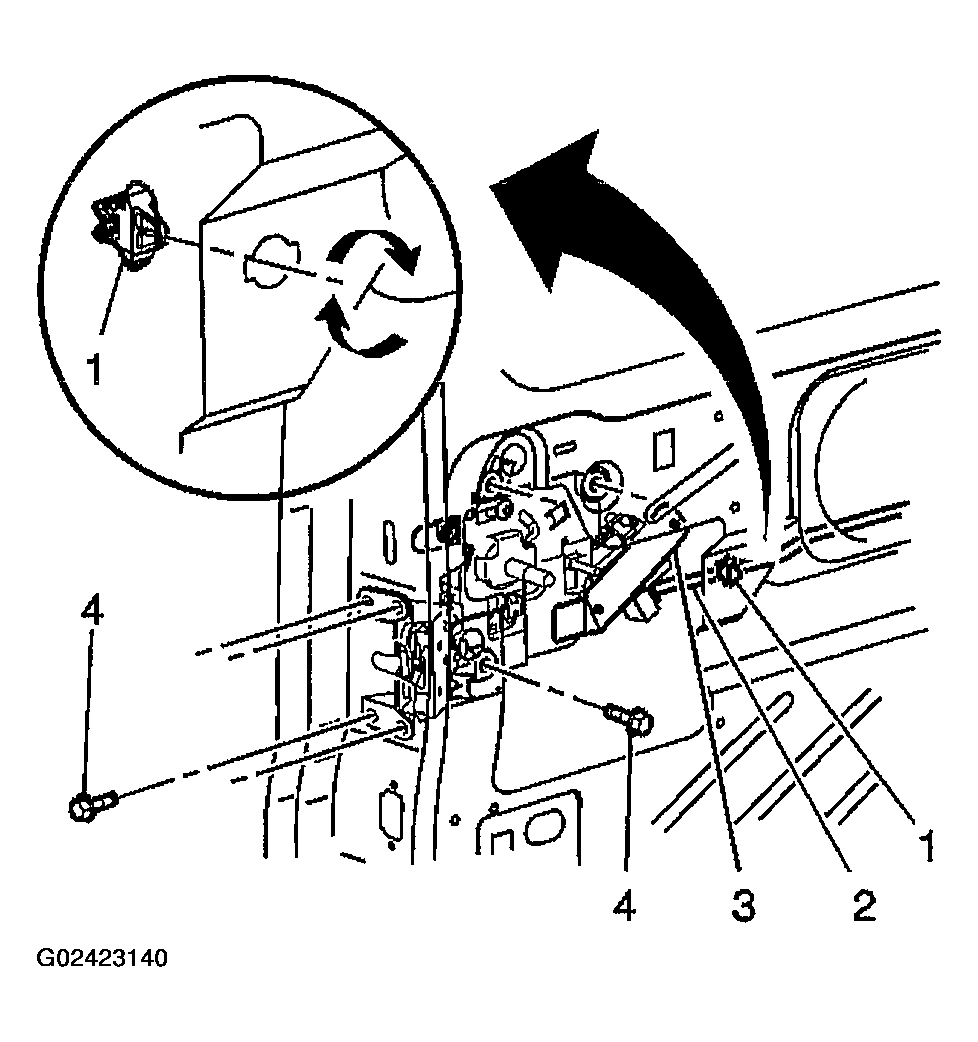

Remove the bolts (4) that retain the sliding side door control assembly to the sliding side door.
Remove the sliding side door control assembly (3) from the sliding side door.
Remove the sliding side door control assembly (3) from the vehicle.

Fig 2: Removing Sliding Side Door Control Assembly
Courtesy of GENERAL MOTORS CORP.
