Installation Procedure

WARNING: Refer to BATTERY DISCONNECT CAUTION .

CAUTION: Refer to FASTENER NOTICE .

Important: Clean any existing corrosion from the battery terminal bolt flange and the battery cable end.

Install the battery ground (negative) cable and bolt to the battery.
Tighten

Tighten the battery terminal bolt to 17 N.m (13 lb ft).

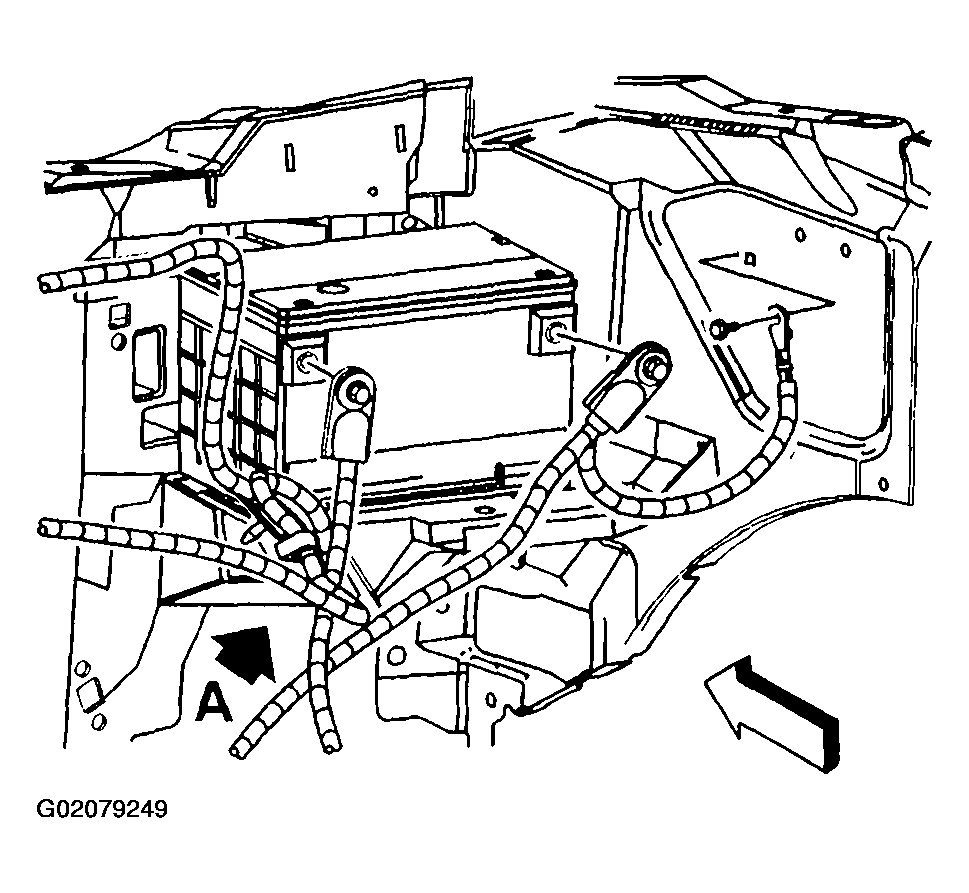

Fig 1: Installing Battery Ground Cable & Bolt To Battery
Courtesy of GENERAL MOTORS CORP.

Important: Clean any existing corrosion from the battery terminal bolt flange and the battery cable end.
Install the battery ground (negative) cable and bolt to the battery for the auxiliary battery.
Tighten

Tighten the battery terminal bolt to 17 N.m (13 lb ft).

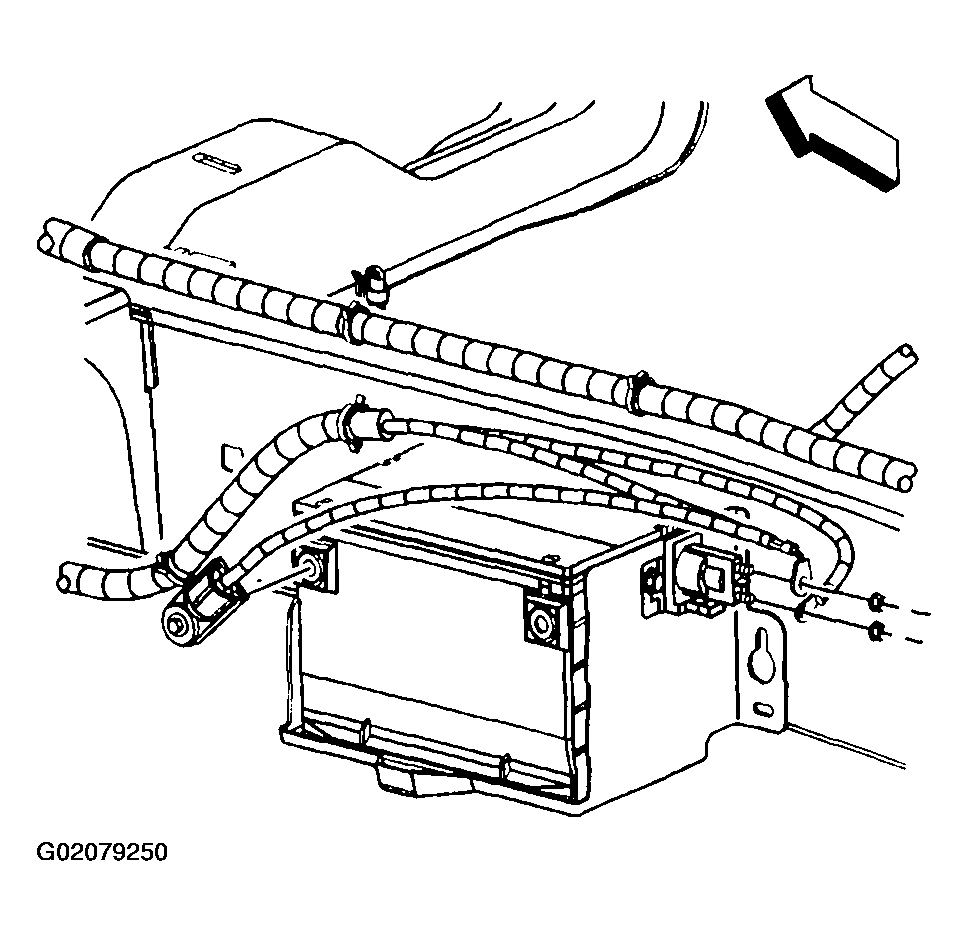

Fig 2: Installing Battery Ground Cable & Bolt To Auxiliary Battery
Courtesy of GENERAL MOTORS CORP.
