Removal Procedure

  1. Disconnect the battery negative cable from the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Disconnect the battery negative cable lead from the inner fender panel.
  3. Raise the vehicle.

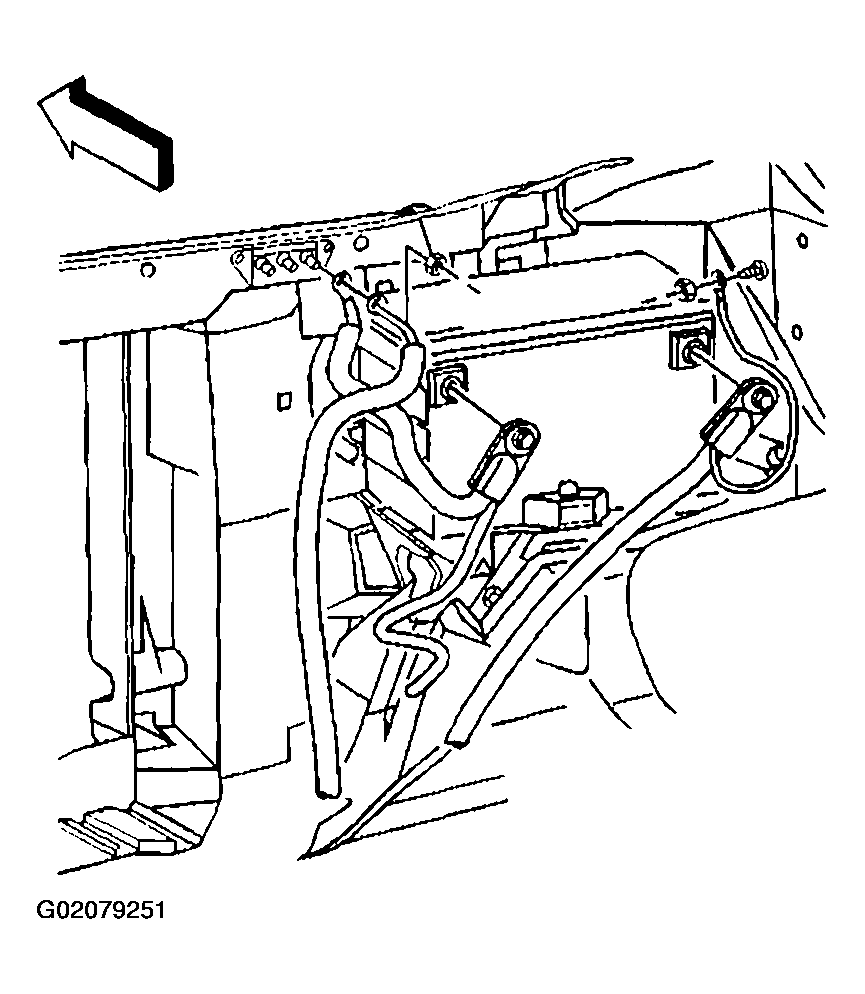

    Fig 1: Disconnecting Battery Negative Cable Lead From Inner Fender Panel
    G02079251Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the battery negative cable lead from the engine block.
  5. Remove the battery negative cable from the vehicle.

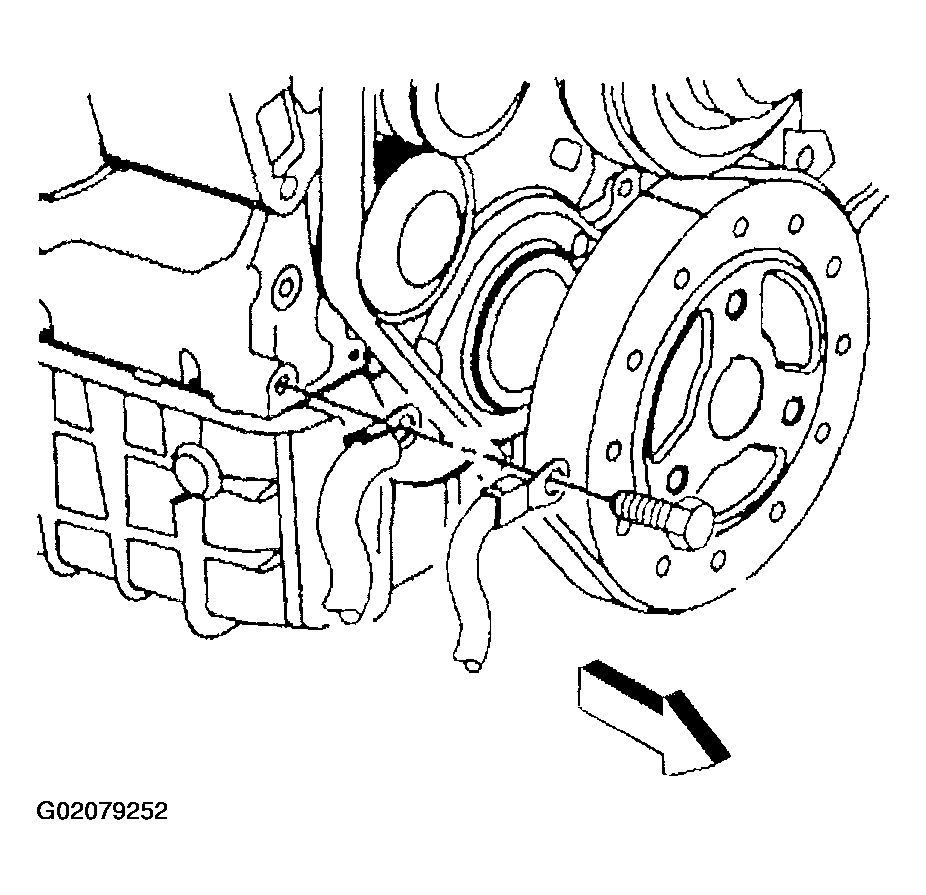

    Fig 2: Disconnecting Battery Negative Cable Lead From Engine Block
    G02079252Courtesy of GENERAL MOTORS CORP.
