Horns Connector End Views

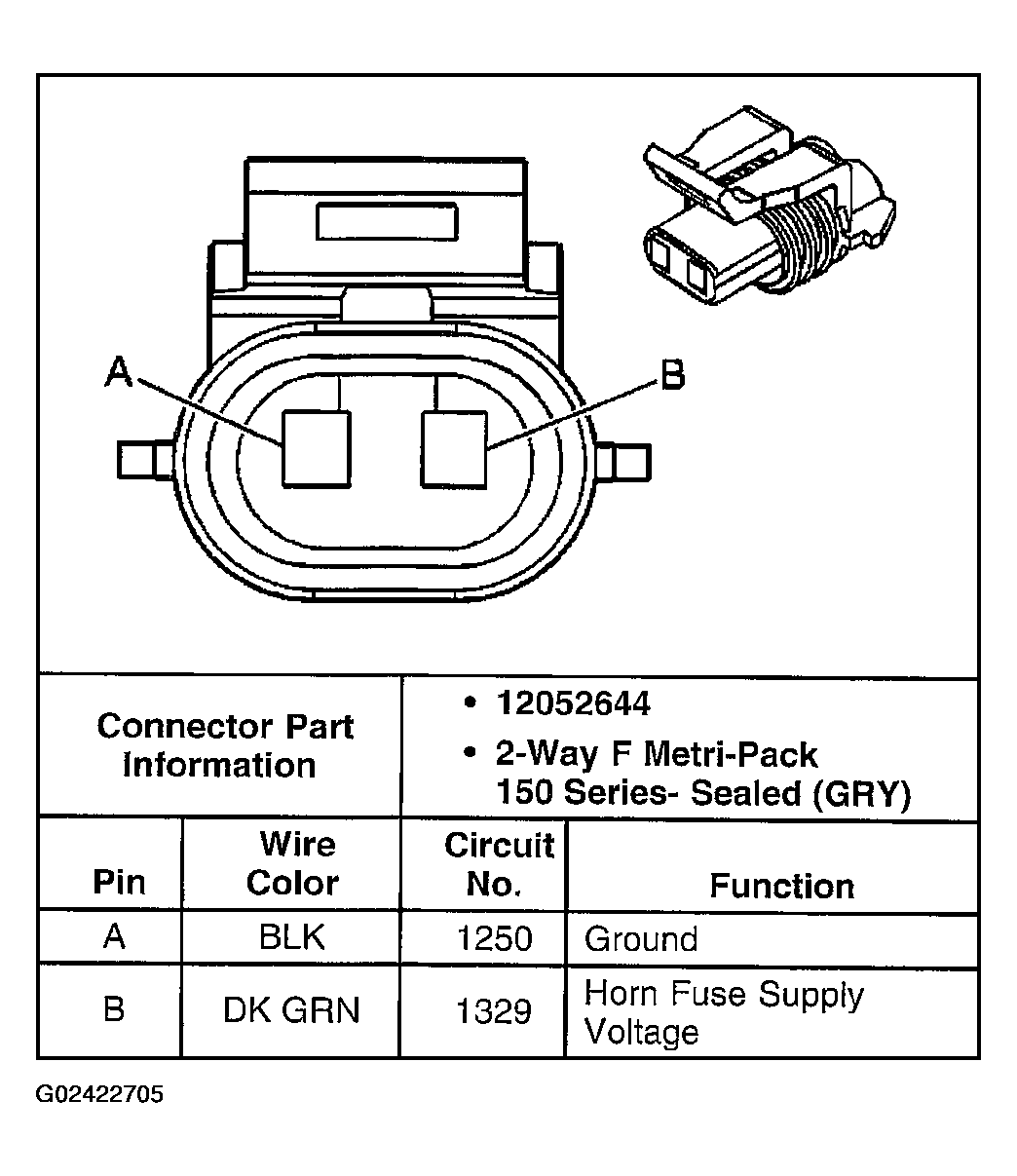

Fig 1: Horn Assembly Connector End View
G02422705Courtesy of GENERAL MOTORS CORP.

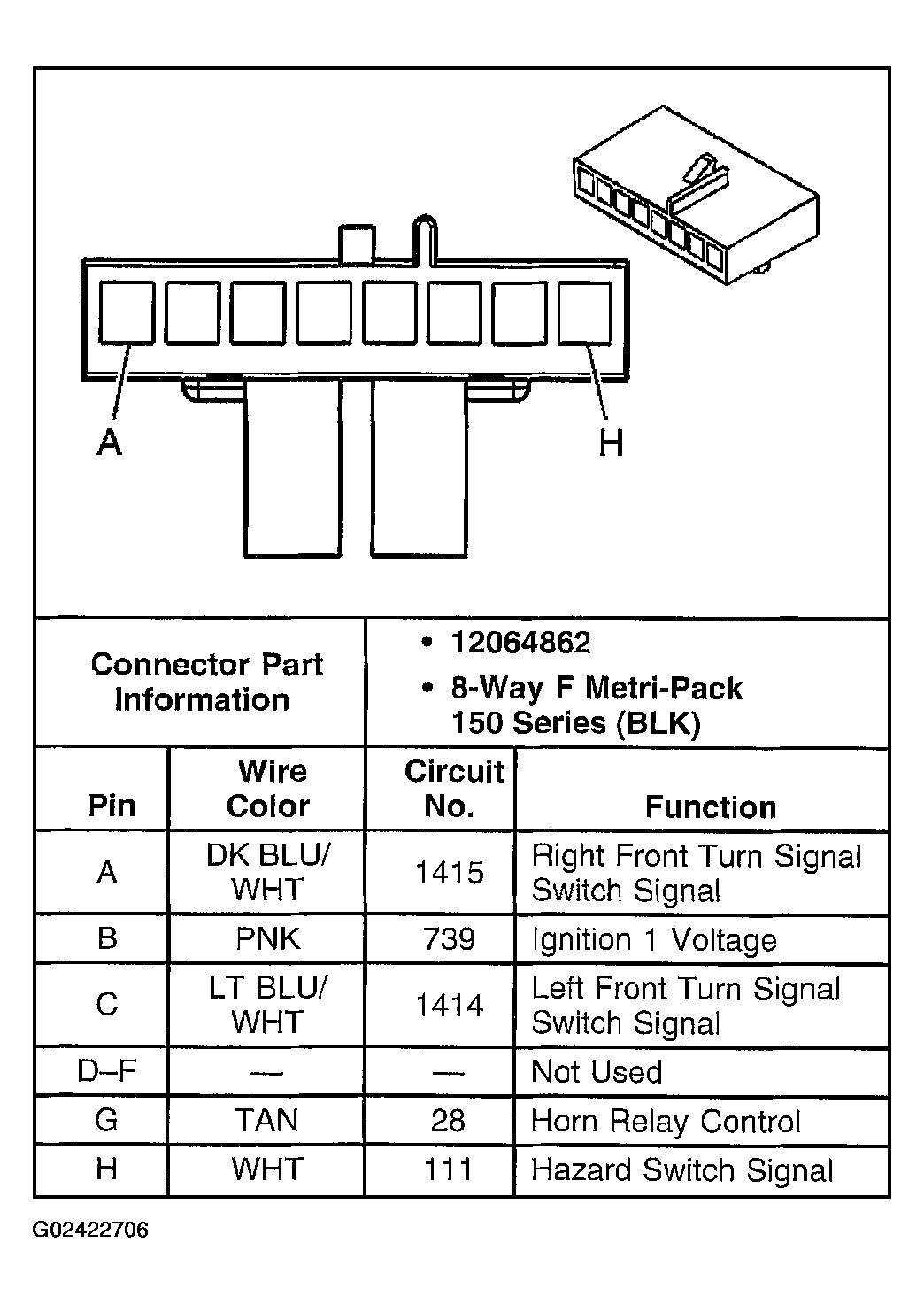

Fig 2: Turn Signal/Multifunction Switch Connector End View - C1
G02422706Courtesy of GENERAL MOTORS CORP.
