Connector C005 Connector End View

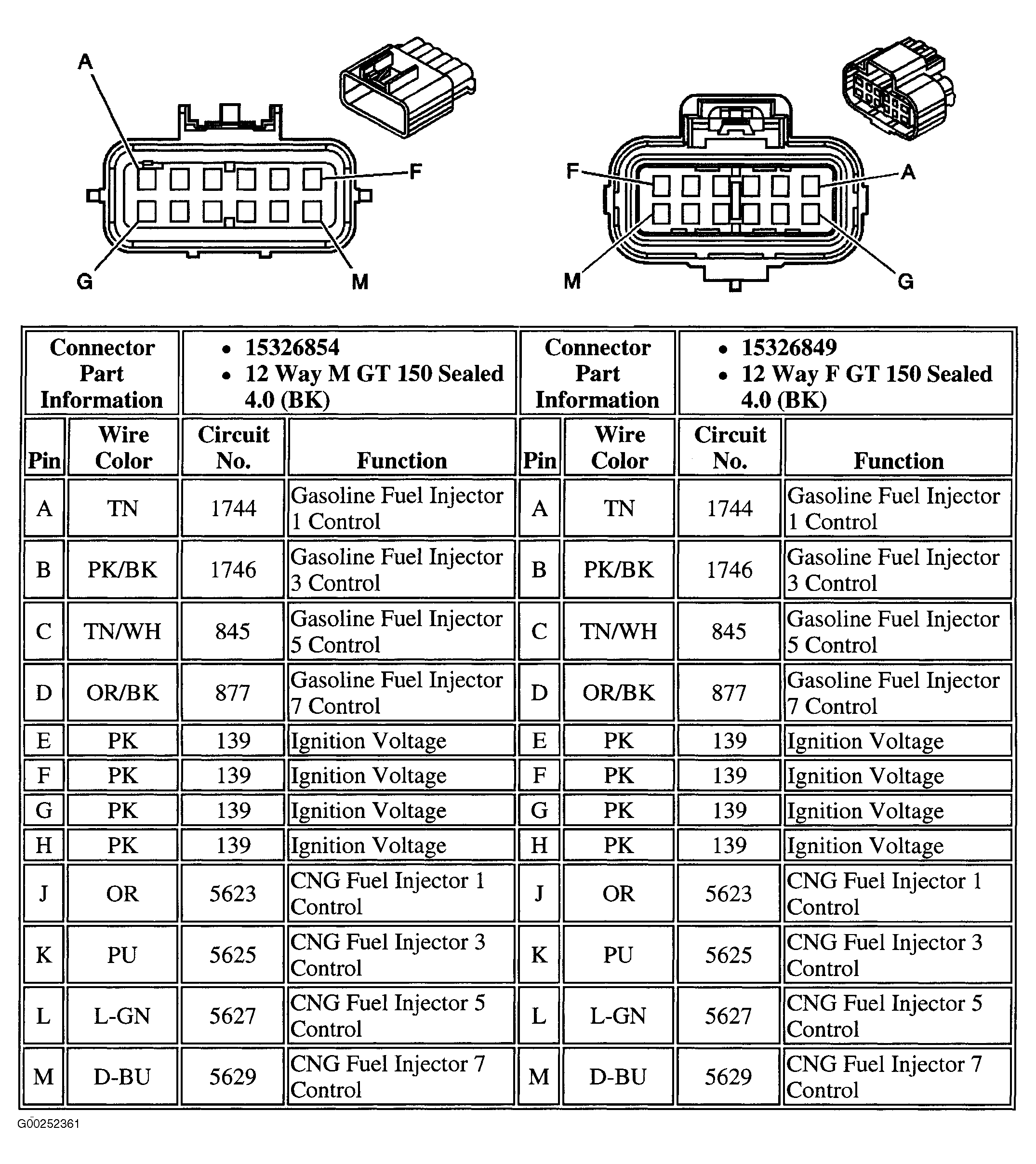

Fig 1: Connector C005 Connector End View
G00252361Courtesy of GENERAL MOTORS CORP.
