Fuel Rail Pressure Sensor Connector End View
Fuel Rail Pressure Sensor Connector End View

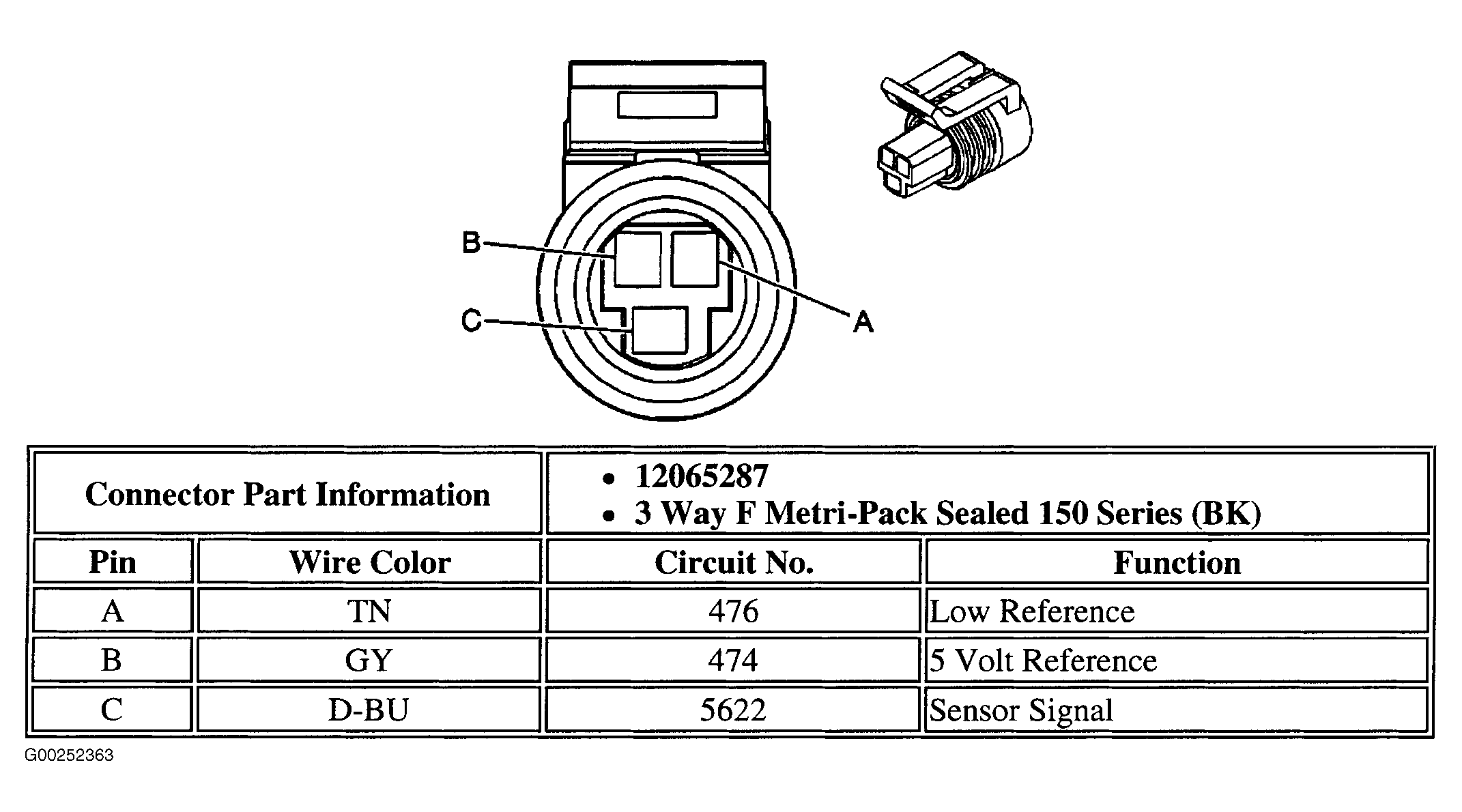

Fig 1: Fuel Rail Pressure Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
