Low Pressure Lock-Off Relay Connector End View
Low Pressure Lock-Off Relay Connector End View

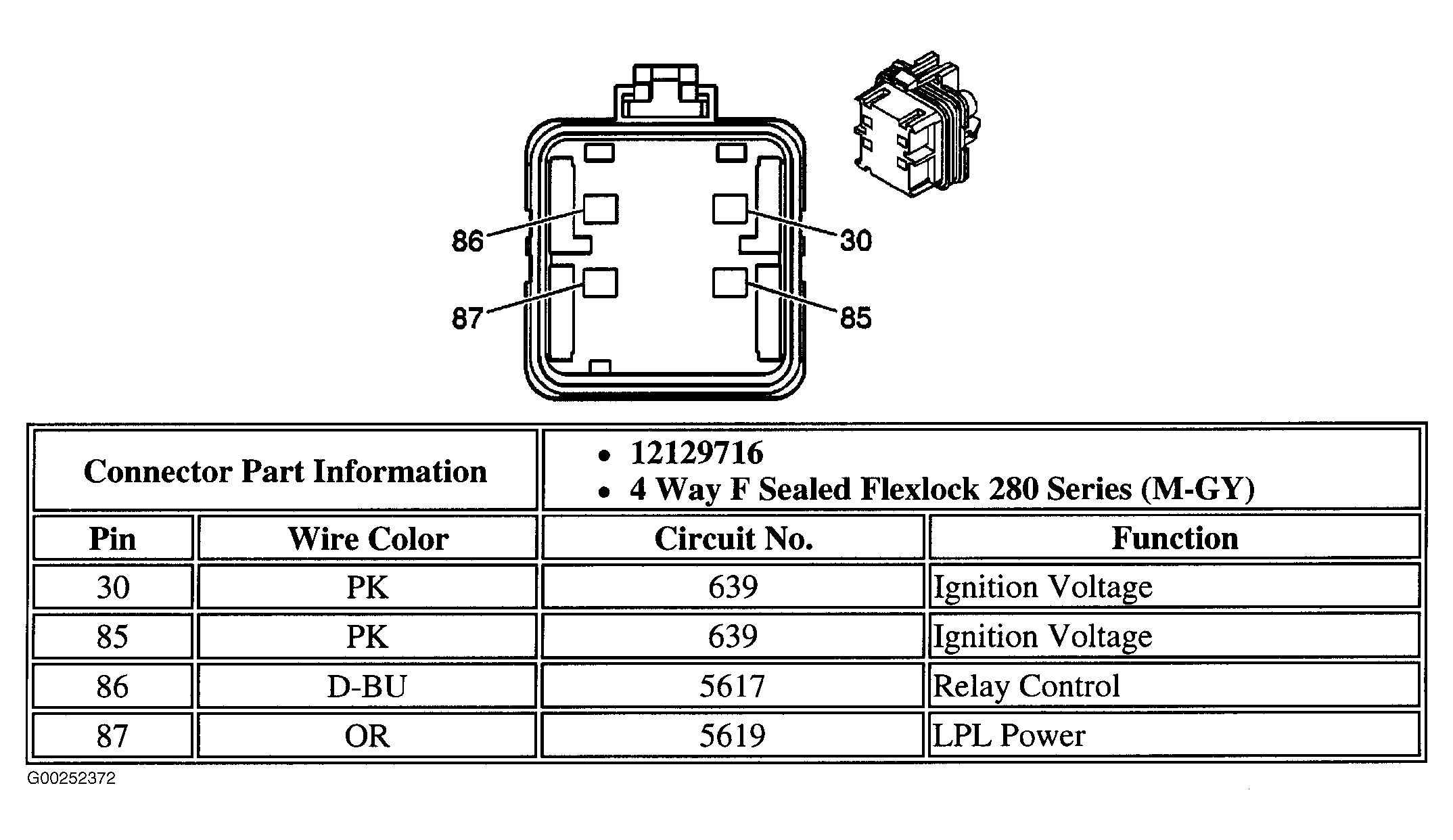

Fig 1: Low Pressure Lock-Off Relay Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
