Auxiliary Power Outlet Connector End View
Auxiliary Power Outlet Connector End View

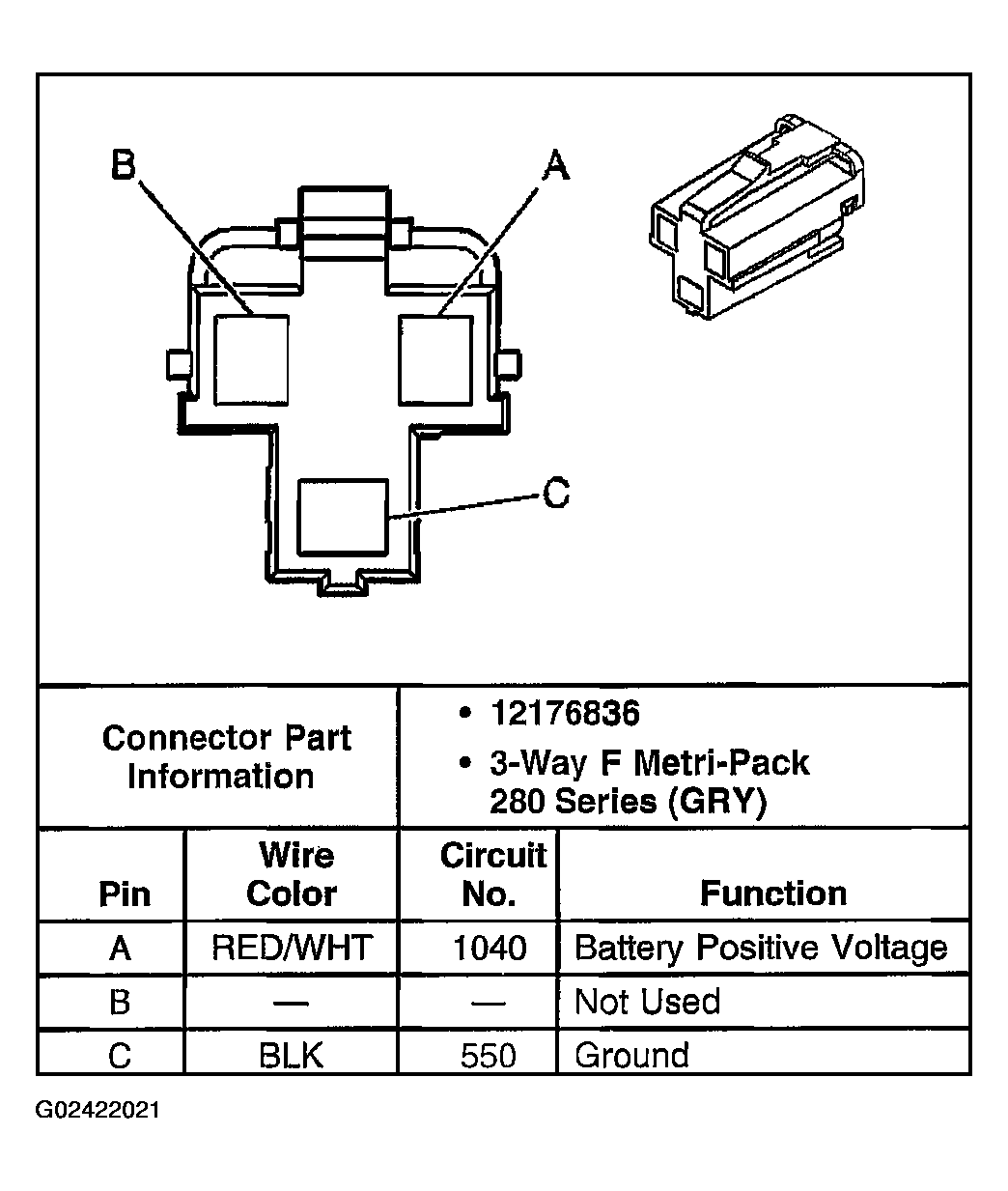

Fig 1: Auxiliary Power Outlet Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
