Connector C001 Connector End View

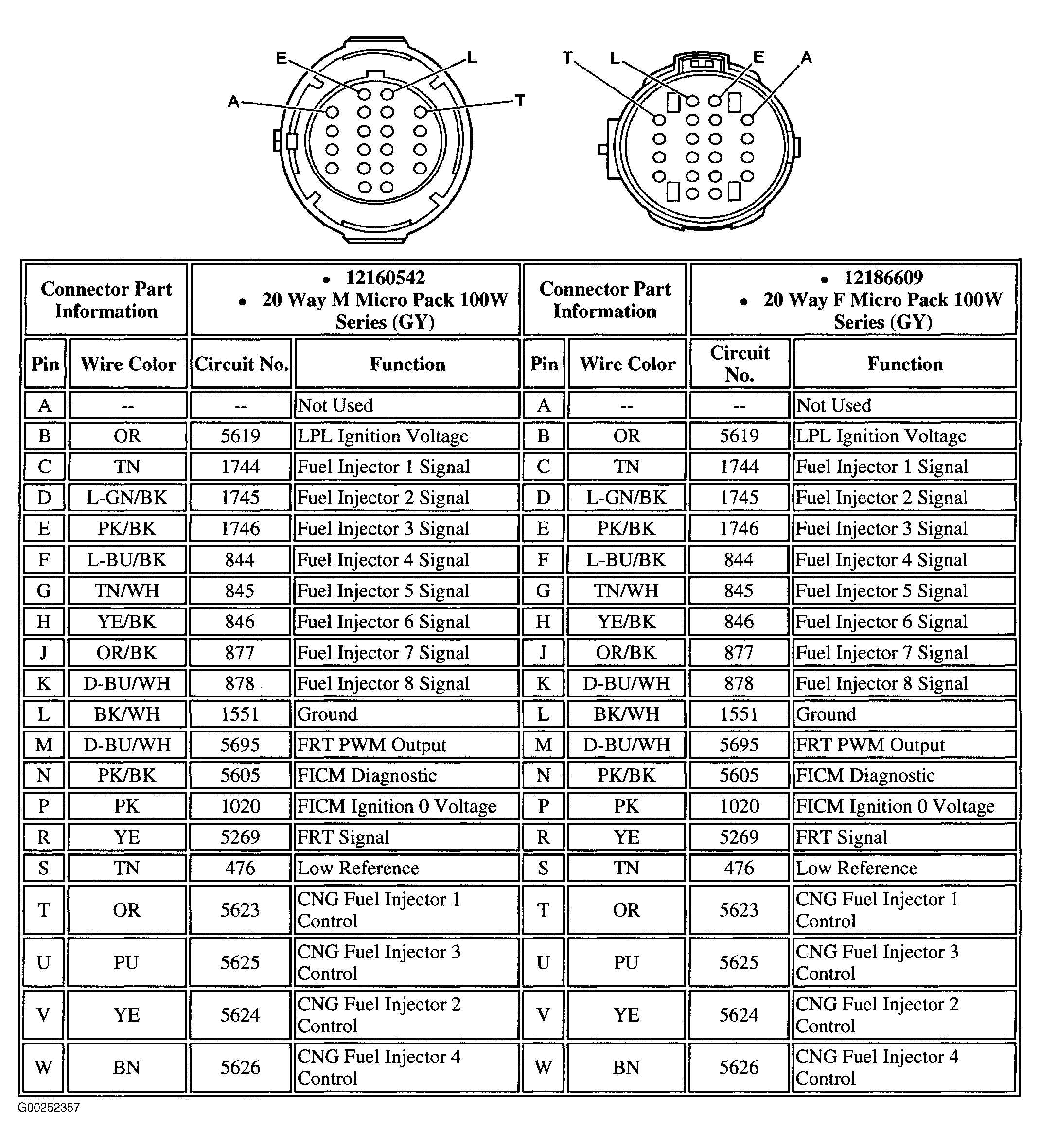

Fig 1: Connector C001 Connector End View
G00252357Courtesy of GENERAL MOTORS CORP.
