Connector C002 Connector End View

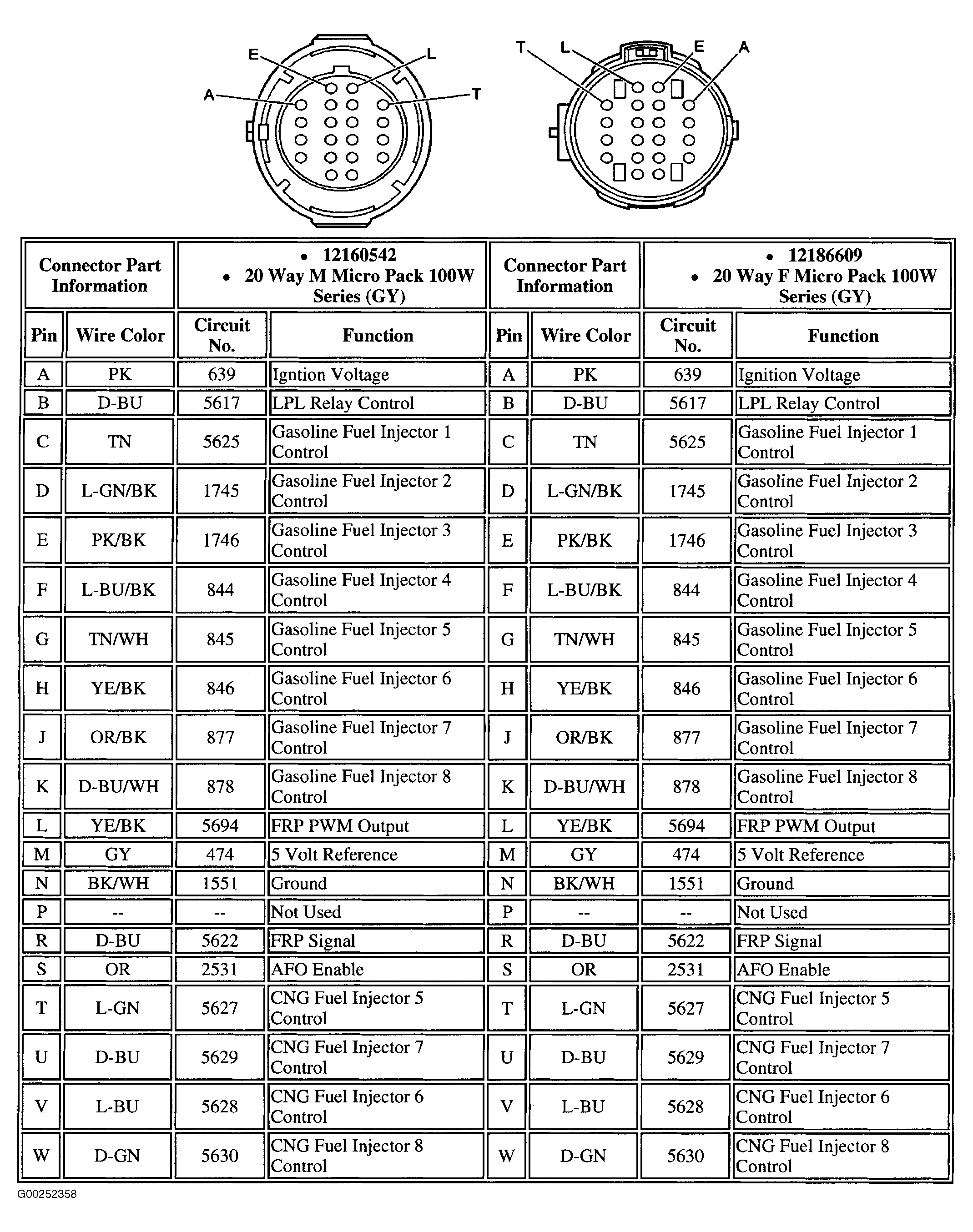

Fig 1: Connector C002 Connector End View
G00252358Courtesy of GENERAL MOTORS CORP.
