Connector C003 Connector End View
Connector C003 Connector End View

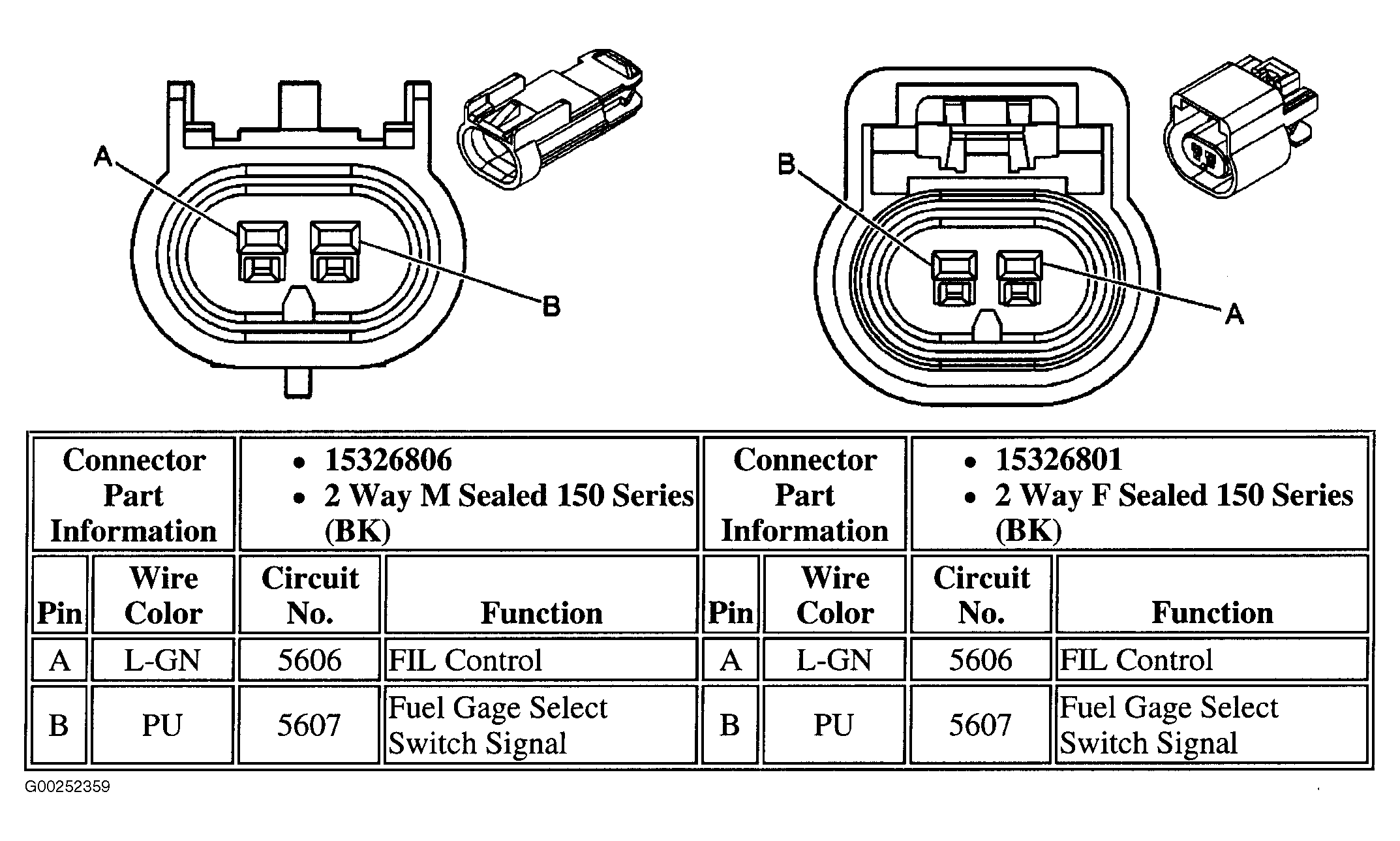

Fig 1: Connector C003 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
