Connector C004 Connector End View

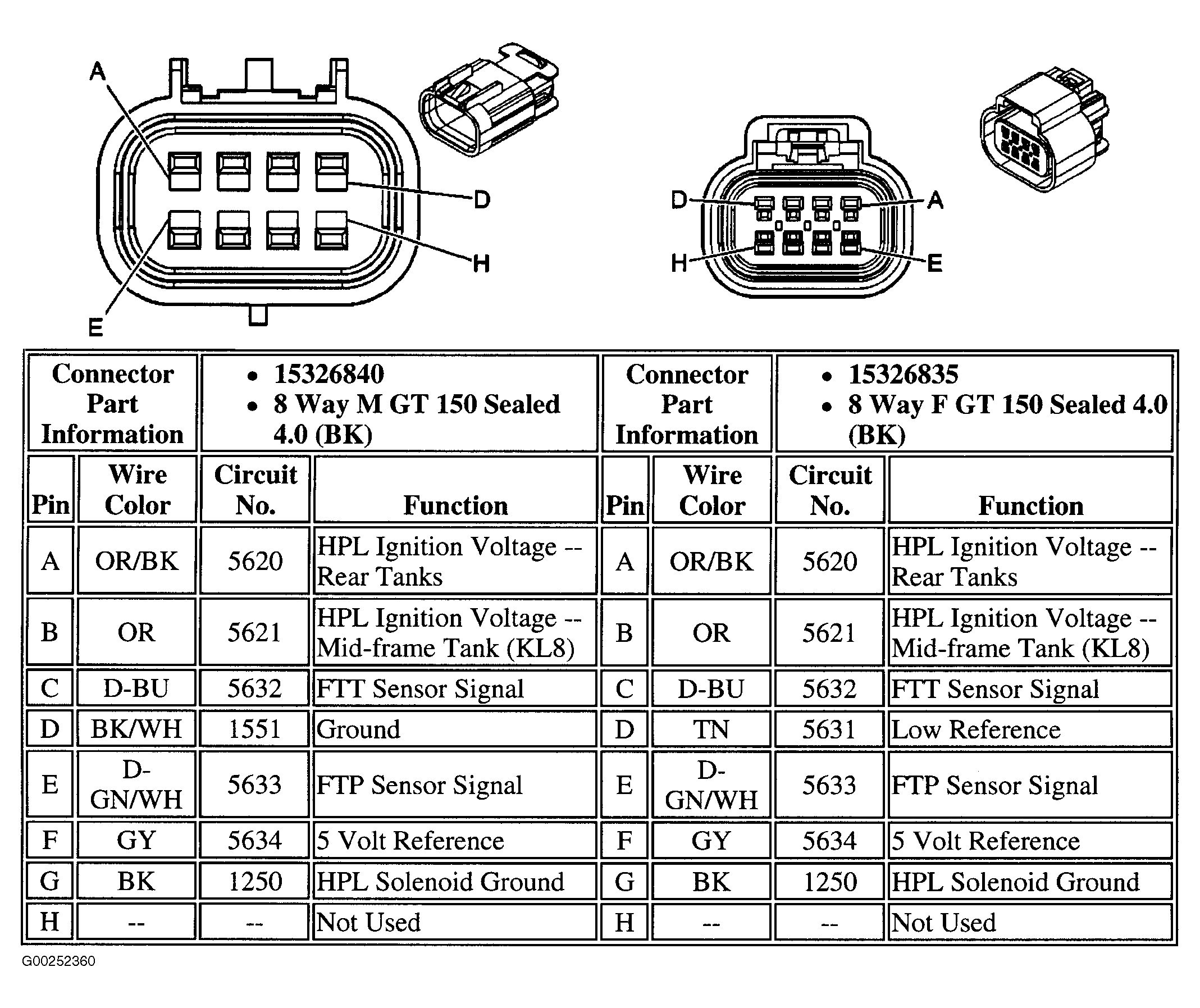

Fig 1: Connector C004 Connector End View
G00252360Courtesy of GENERAL MOTORS CORP.
