Connector C006 Connector End View

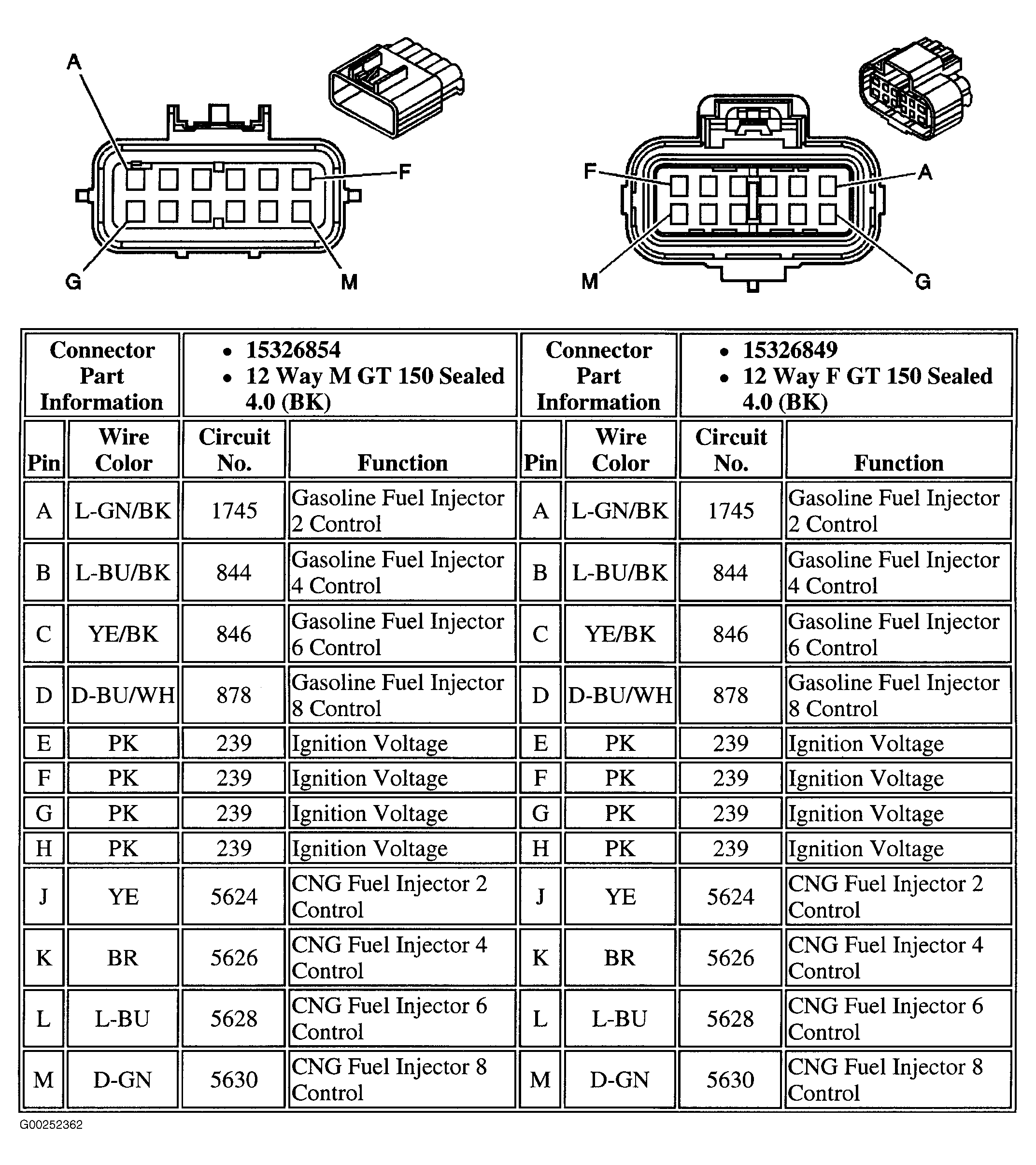

Fig 1: Connector C006 Connector End View
G00252362Courtesy of GENERAL MOTORS CORP.
