Engine Coolant Temperature Sensor Connector End View

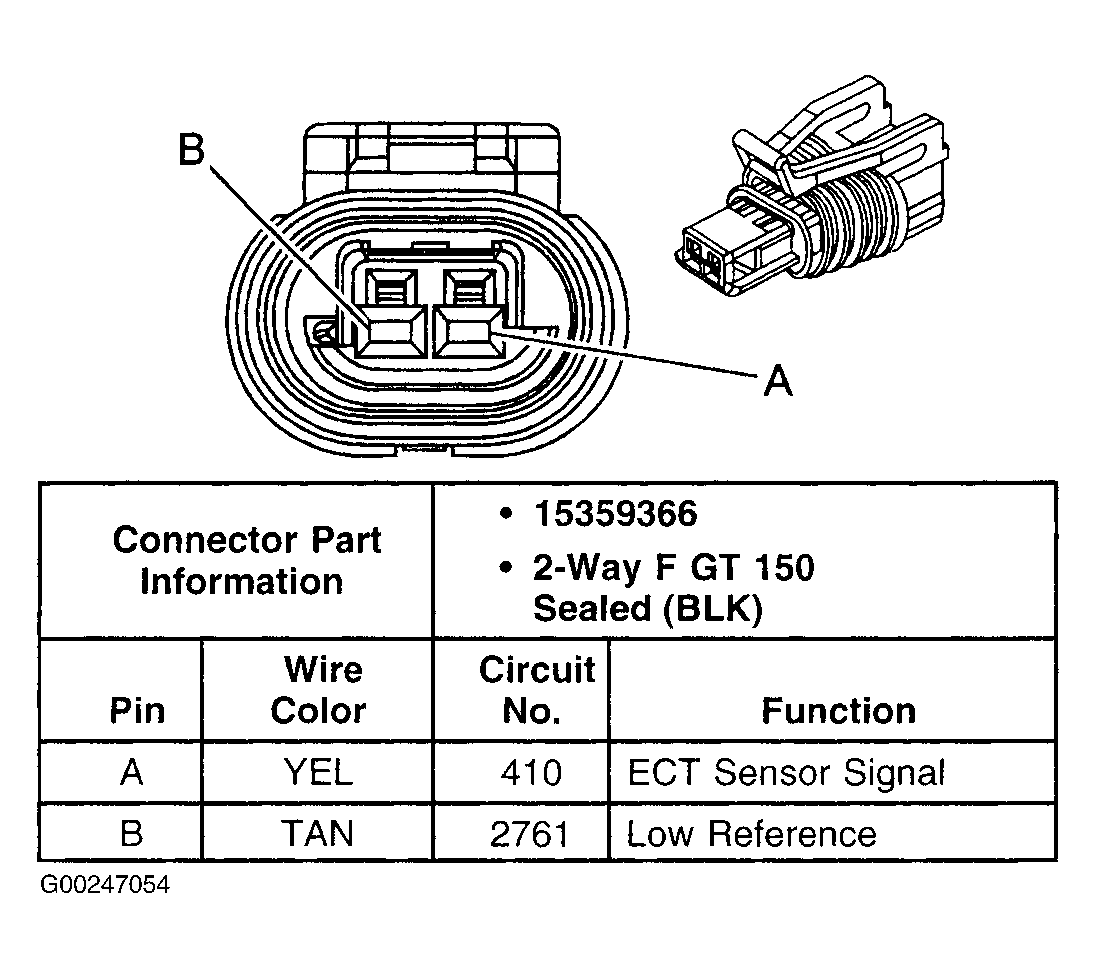

Fig 1: Engine Coolant Temperature Sensor Connector End View
G00247054Courtesy of GENERAL MOTORS CORP.


Fig 1: Engine Coolant Temperature Sensor Connector End View
G00239717Courtesy of GENERAL MOTORS CORP.
