Engine Oil Pressure (EOP) Sensor Connector End View
Engine Oil Pressure (EOP) Sensor Connector End View

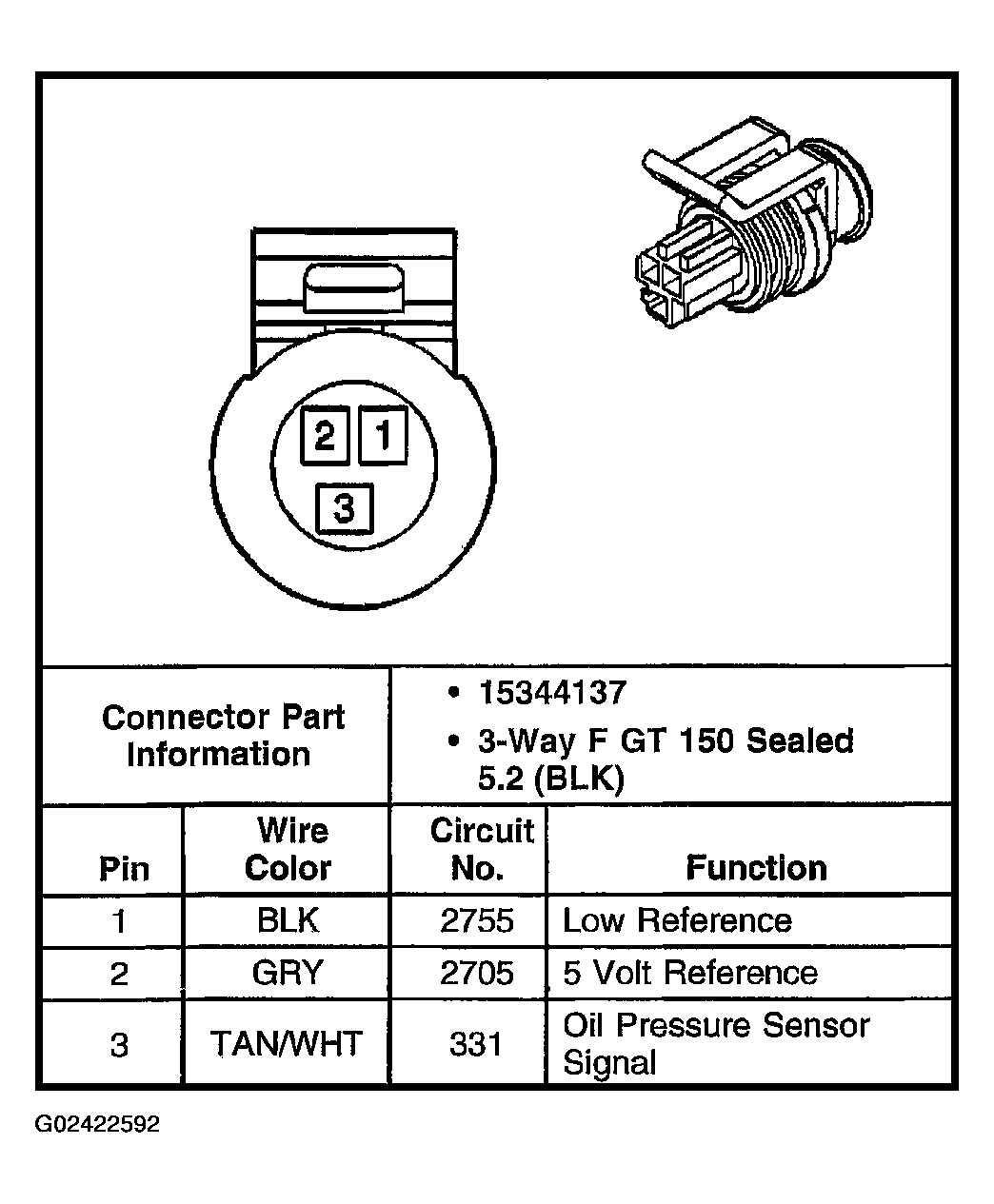

Fig 1: Engine Oil Pressure (EOP) Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
