Fuel Gauge Select Switch Connector End View
Fuel Gauge Select Switch Connector End View

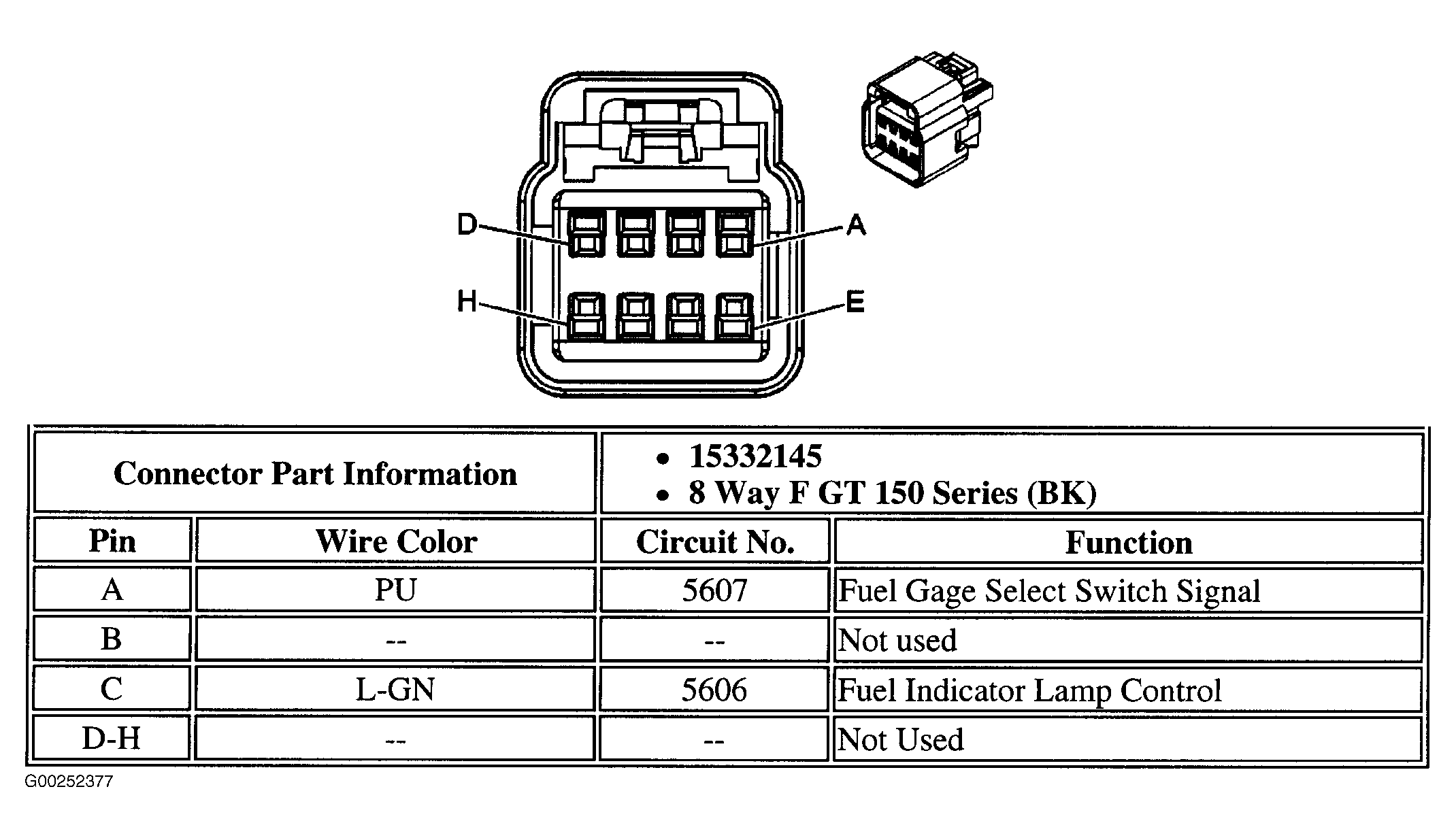

Fig 1: Fuel Gauge Select Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
