Fuel Injection Control Module Connector End View (1 Of 2)

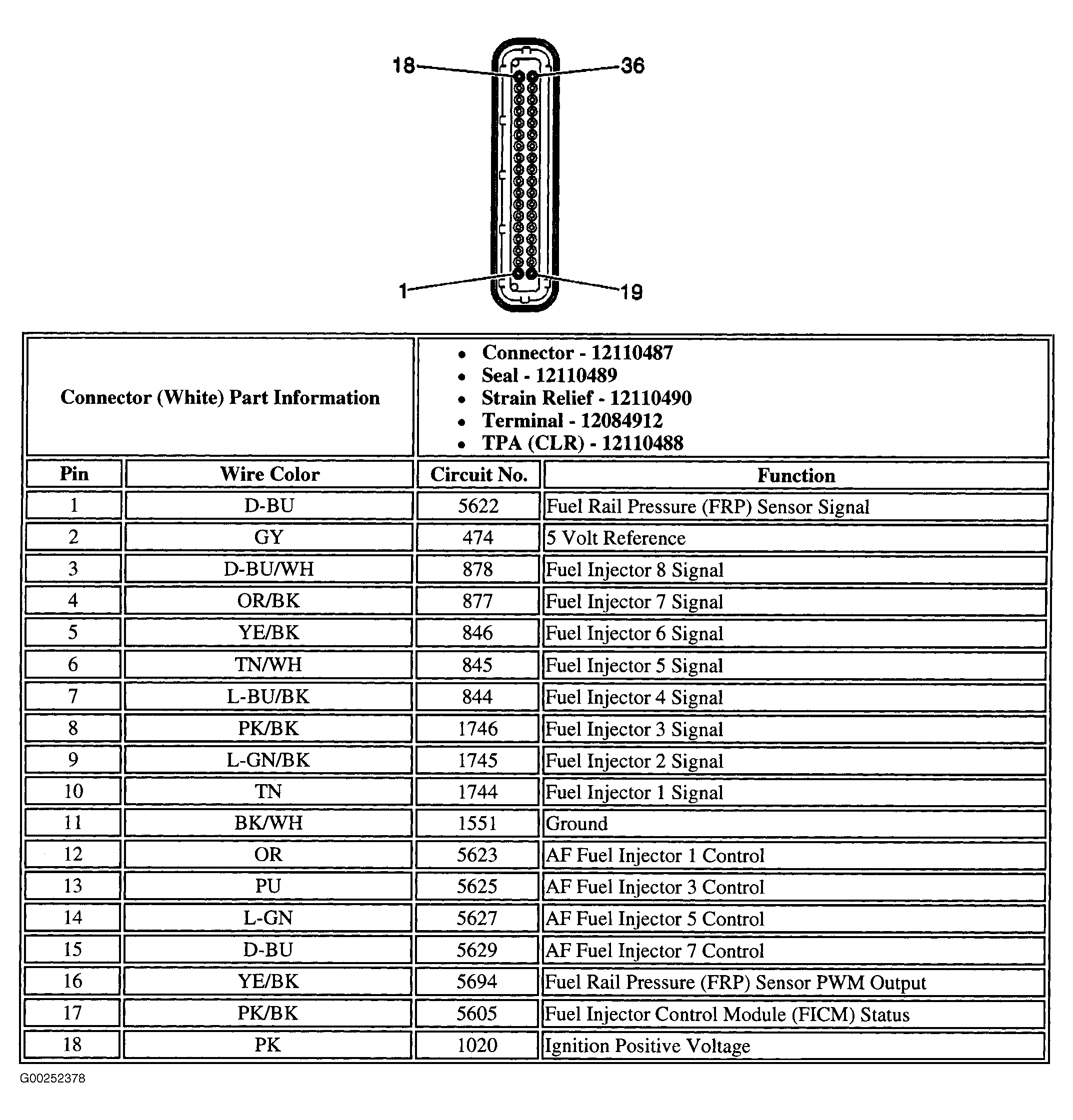

Fig 1: Fuel Injection Control Module Connector End View (1 Of 2)
G00252378Courtesy of GENERAL MOTORS CORP.
